Step 4, Assembly – Keys Fitness KF-HCL User Manual

Page 9

background image

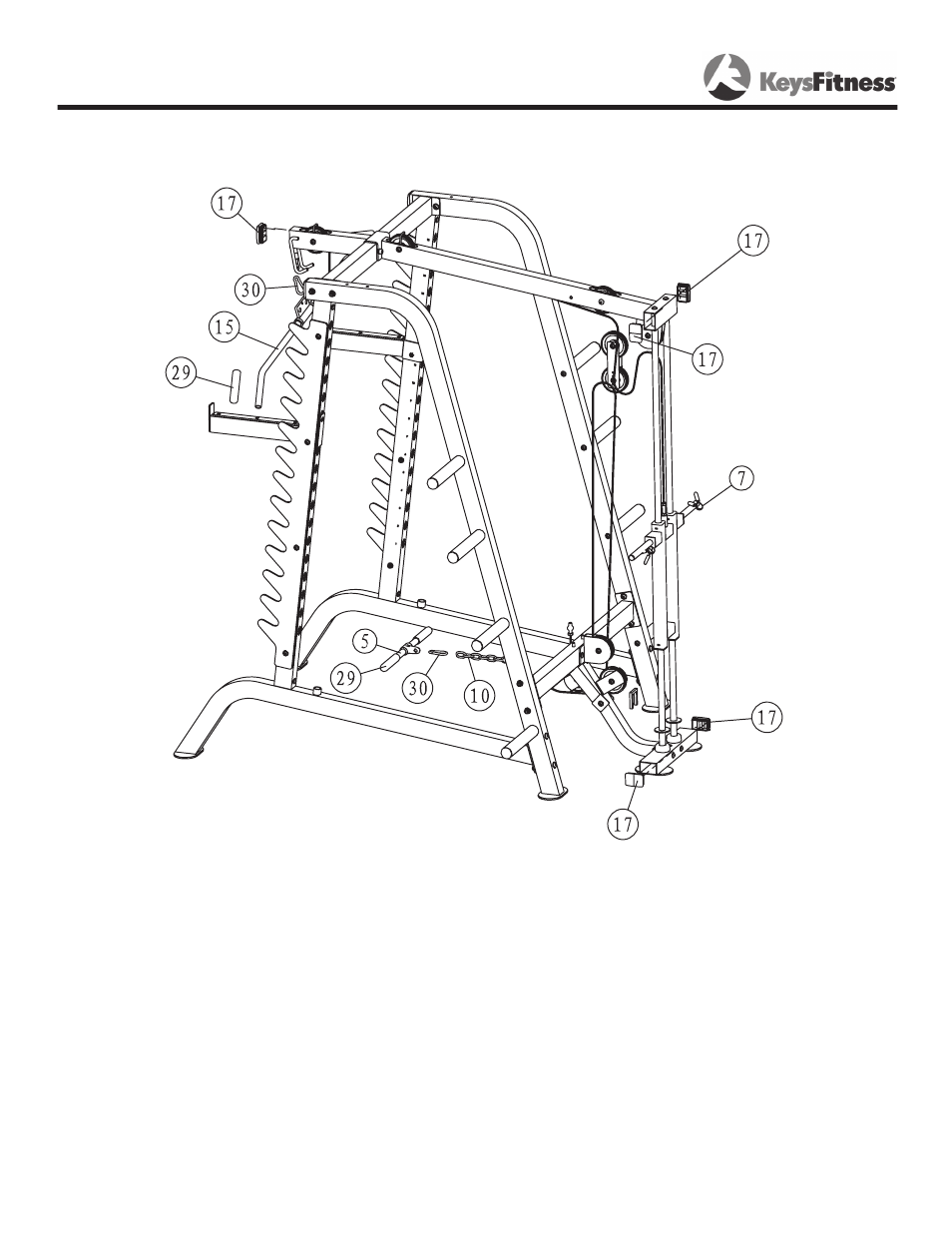

STEP 4

Connect all attachments using:

x (30) Pear Hook

1 x (15) Long Bar

1 x (8) Footbrace

1 x (3) U Pin

1 x (10) Chain

1 x (5) Short Bar

5 x (17) Plug

NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.

Assembly
