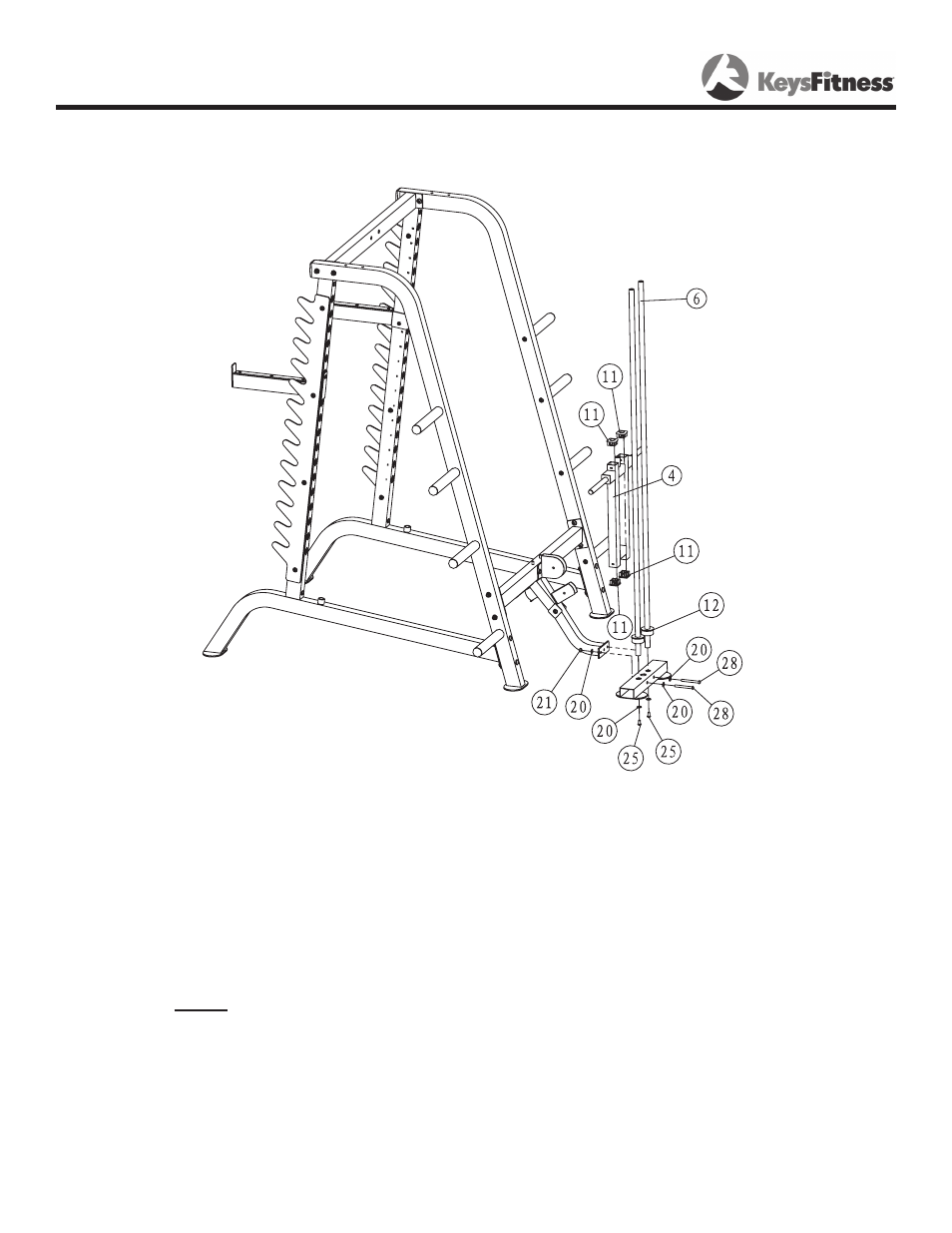

STEP 2

Assemble weight carriage structure using:

x

(6) Guide Rod

1

x

(4) Slide Weight Support

4

x

(11) Plastic Sleeve

x

(1) Bumper for Weight

1

x

() Weight Base (Not Labeled)

x

(0) Washer 10

x

(5) Bolt M10x0

Note: Bolts (5) will need to be tightened before moving to

STEP 3.

Secure Weight Base () to Half Cage using:

1 x () Lower Support

x (1) Nylon Lock Nut

x (8) Bolt M10x95

4 x (0) Washer 10

NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.
