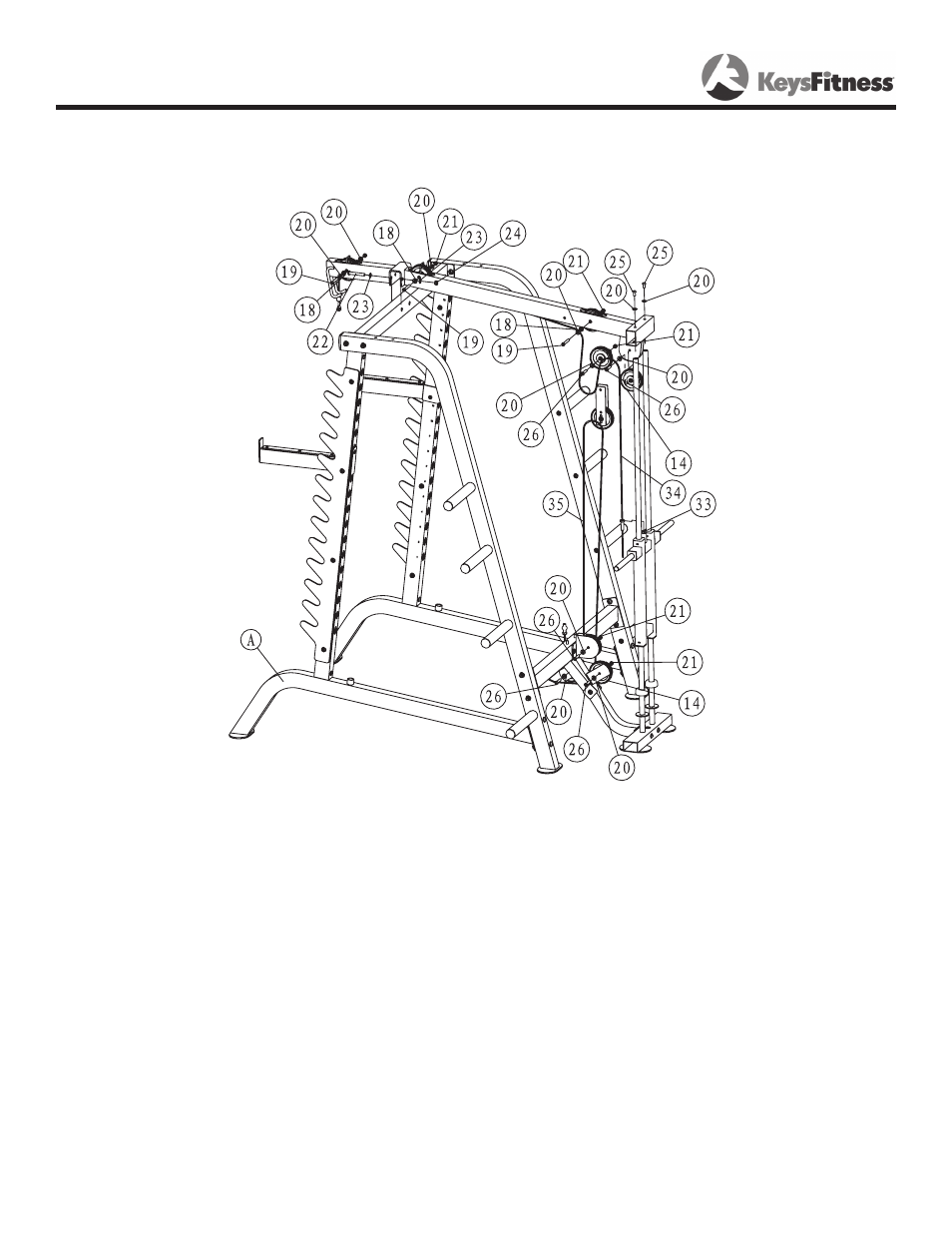

STEP 3

Connect Top Frame (4) to Half Cage and Guide Rods (7) using:

x () Bolt M1x80

x (5) Bolt M10x0

4 x (3) Washer M10

x (0) Washer 10

x (4) Nylon Lock Nut M1

Place High Pulley Cable (34) into positions using:

5 x (14) Big Pulley

4 x (1) Nylon Lock Nut

6 x (18) Big Pulley Spacer

x (6) Bolt M10x50

10 x (0) Washer 10

x (13) Plate for Pulley

3 x (19) Bolt M10x70

Place Low Pulley Cable (35) into positions using:

4 x (14) Big Pulley

4 x (1) Nylon Lock Nut

1 x (18) Pulley Bracket

x (19) Bolt M10x70

4 x (6) Bolt M10x50

8 x (0) Washer 10

NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.
