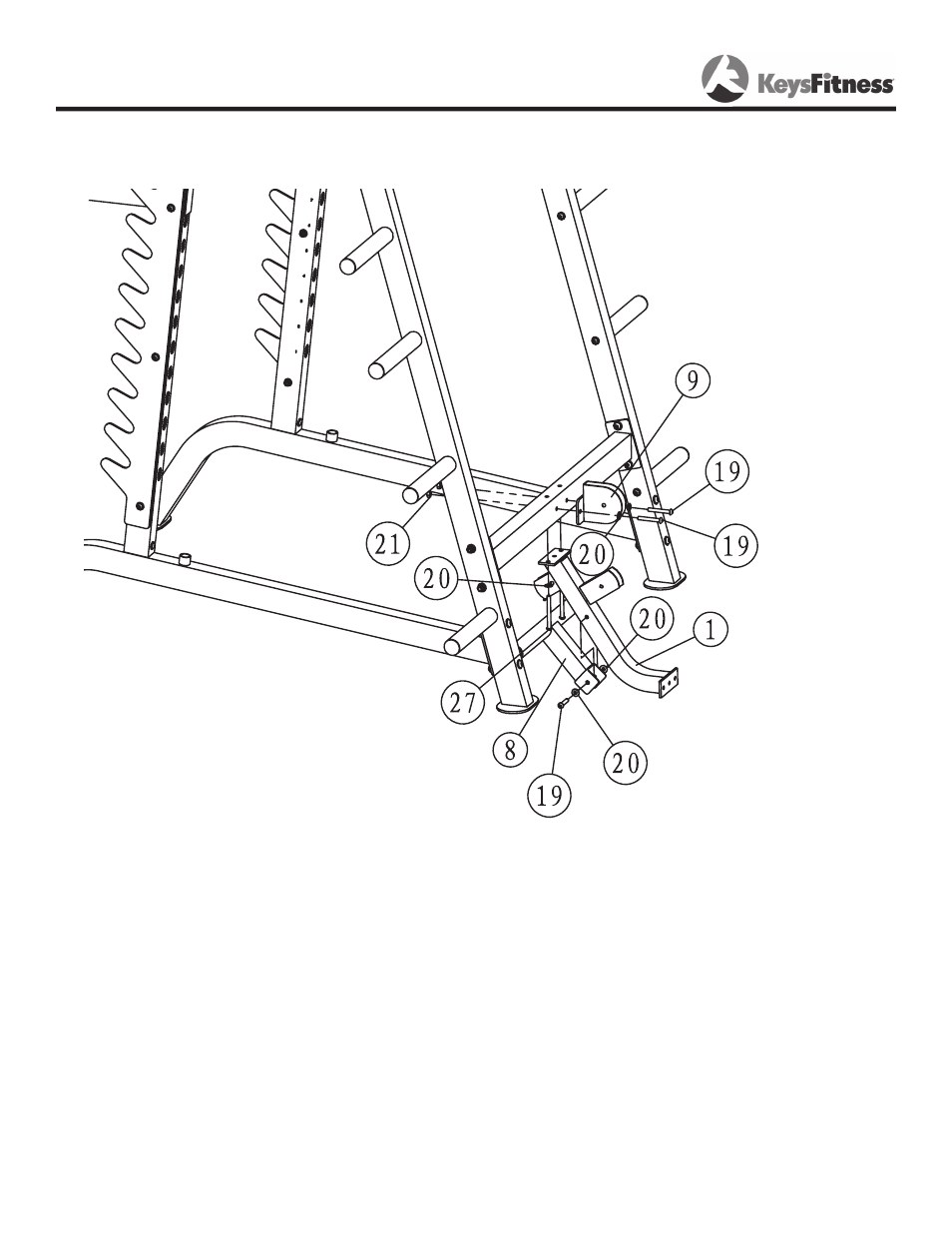

STEP 1

Connect Lower Support (1), Footbrace (8) and Pulley Bracket

(9) to Half Cage using:

3

x

(19) Bolt M10x70

8

x

(0) Washer 10

5

x

(1) Nylon Lock Nut M10

x

(7) Bolt M10x95

NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.
