VIEWING IMAGES ON A TELEVISION
It is possible to view camera images on your television. The camera has a video-out terminal to
make the connection using the supplied AV cable. The camera is compatible with the NTSC and PAL
standards. The video-output setting can be checked and set in the Custom 2 section of the setup
menu (p. 84).
Turn off the television and the camera.

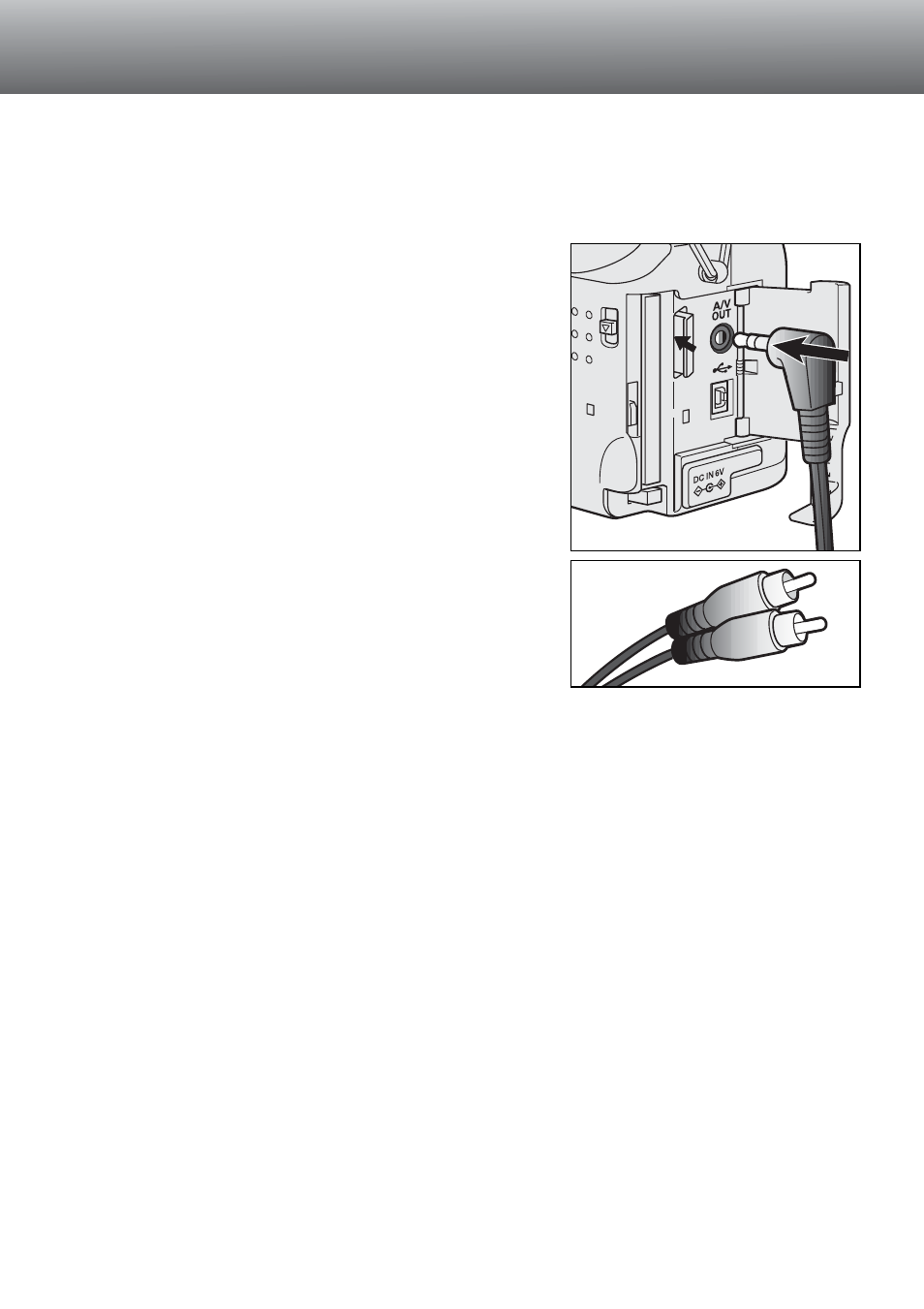

Insert the mini-plug end of the AV cable into the camera’s
video-out terminal.
Plug the other end of the AV cable into the video and
audio input terminals on the television.
• The yellow plug is for the video output. The white plug is for
the monaural audio output.
• The audio output will also be heard through the camera’s
speaker while connected to a television.
Turn the television on.
Turn the camera’s mode dial to the playback position.
• The camera’s monitors will not activate when the camera is
attached to a television. The playback-mode display will be
visible on the television screen.
Change the television to the video channel.
