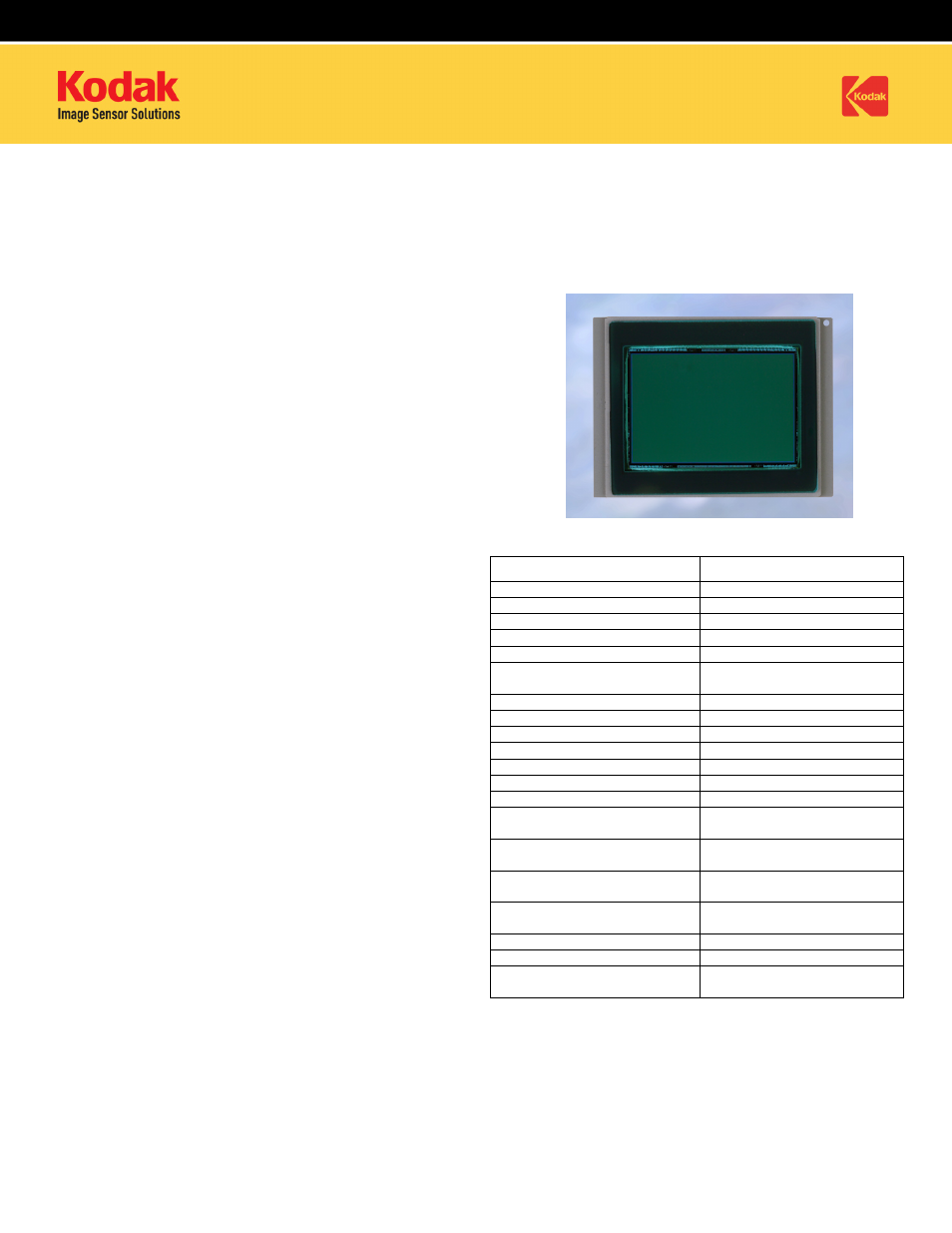

PRODUCT SUMMARY
KODAK KAF-10500 IMAGE SENSOR
3970 (H) X 2646 (V) FULL FRAME CCD COLOR IMAGE SENSOR
DESCRIPTION
The KAF-10500 is a dual output, high performance color
CCD (charge coupled device) image sensor with 3970(H)
x 2646(V) photoactive pixels designed for a wide range of
color image sensing applications including digital
imaging. Each pixel contains anti-blooming protection by
means of a lateral overflow drain thereby preventing
image corruption during high light level conditions. Each
of the 6.8μm square pixels are selectively covered with
red, green or blue pigmented filters for color separation.
Microlenses are added for improved sensitivity. The total
chip size is 28.7 mm x 20.2 mm and is housed in a 60 pin,
40.6 mm x 30.7 mm PGA ceramic package with 0.100”
pin spacing.
FEATURES
• High resolution
• Broad dynamic range
• Low noise
• Large image area
APPLICATIONS
• Digital Still Cameras
Parameter Typical Value
Architecture Full Frame CCD (Square Pixels)
Total Number of Pixels 4098 (H) x 2728 (V) = 11.2 Mp
Number of Effective Pixels 4010 (H) x 2686 (V) = 10.8 Mp
Number of Active Pixels 3970 (H) x 2646 (V) = 10.5 Mp
Pixel Size 6.8 μm (H) x 6.8 μm (V)
Active Image Size
27.0 mm (H) x 18.0 mm (V)
32.44 mm (diagonal)
Aspect Ratio 3:2
Horizontal Outputs 2
Saturation Signal 60 ke -
Output Sensitivity 25 μV/e -
Quantum Efficiency (RGB) 21%, 40%, 32%
Read Noise (f=24 MHz) 15 e -
Dark Signal (T=40 °C) 4 mV
Dark Current Doubling
Temperature
6.3 °C
Linear Dynamic Range
(f=24 MHz, T=40 °C)
71.5 dB
Charge Transfer Efficiency
(HCTE/VCTE) 0.999995
0.999999
Blooming Protection
(4 ms exposure time)
1000X saturation exposure
Maximum Data Rate 24 MHz
Package Ceramic PGA
Cover Glass
IR Absorbing with AR Coating
(both sides)
Parameters above specified at T = 20°C unless otherwise noted
©Eastman Kodak Company, 2007 www.kodak.com/go/imagers Revision 5.0 MTD/PS-0962
