Controls, displays and connections
Controls, displays and connections
This section contains a brief description of all the control elements, displays and
connections. The key symbols presented here are also used when describing op-
erating sequences.

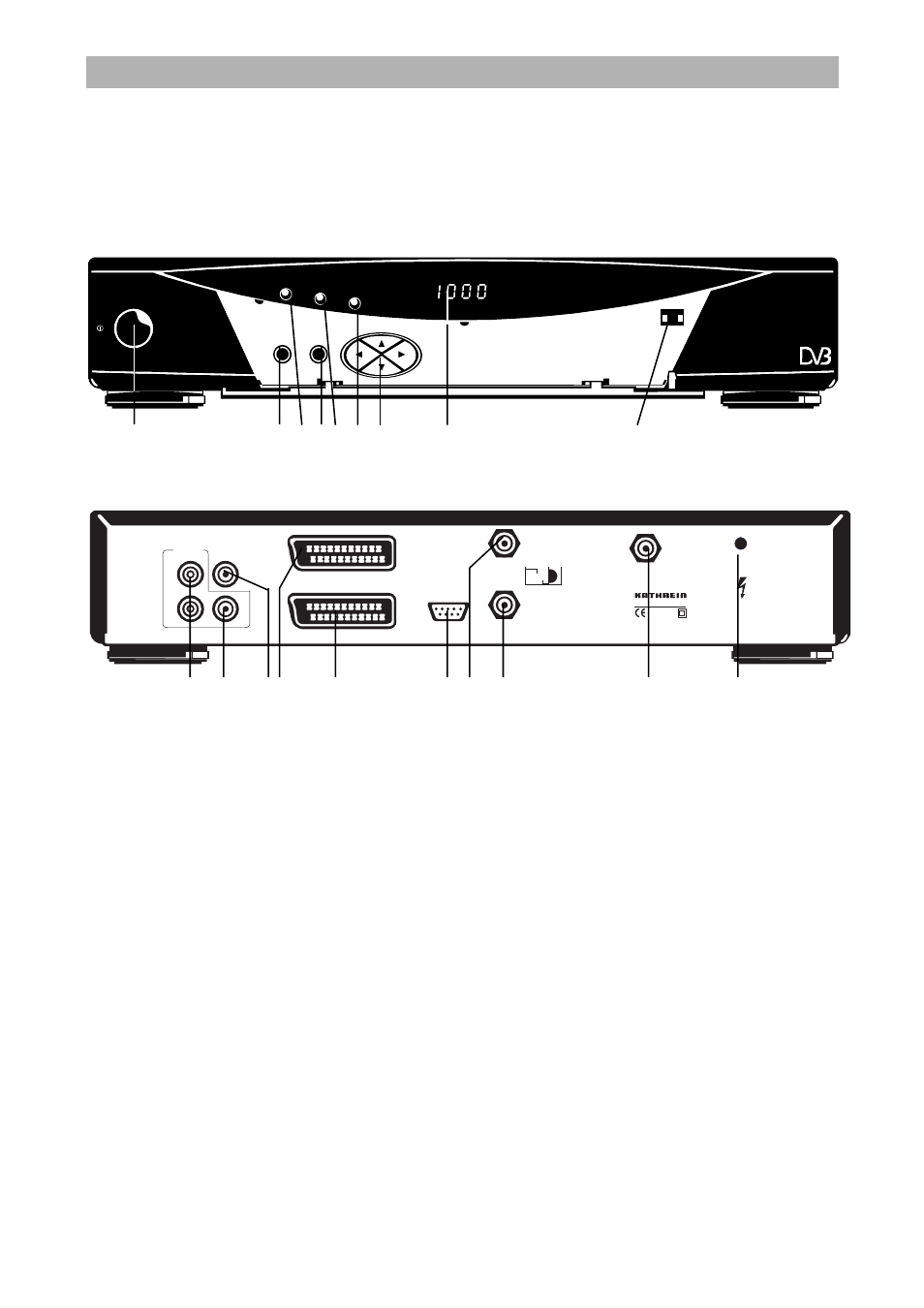

View of front panel
(Flap folded down)
View of rear panel
I F I N P U T D I G I T A L
9 2 0 - 2 1 5 0 M H z
1 4 / 1 8 V m a x . 4 0 0 m A
2 2 k H z
V C R
A U X U F D 5 2 0 2 6 0 4 9 8
T V
I F O U T P U T
D i S E q C 1 . 1
D A T A I / O
I F I N P U T
A N A L O G
9 2 0 - 2 1 5 0 M H z
A C 9 8 V - 2 4 9 V ~
5 0 / 6 0 H z
m a x . 3 0 W
E l e k t r o s c h o c k - G e f a h r !
N i c h t ö f f n e n
L
R
A U O V I D E O D I
SELECT MENU
Digital Video Broadcasting DIGITAL ANALOG SATELLITE RECEIVER
1 2 3 4 5 6 7 8 9 10
1 2 3 4 5 6 7 8 9
Front panel controls and displays Rear panel controls and displays
1 On/Off switch (with mains separation)
2 Menu button to call up or exit from menus
or submenus
3 Indicator to confirm remote control signal
4 Select-button
to confirm a selection
5 Power indicator
6 Standby indicator
7 Cursor keys to step through menus and
programmes, and for adjustment of the vol-
ume (corresponds to the remote control)
8 LED display (4-charachter 7-segment dis-
play) for display of programme position and
time
9 Pressure catch for front flap
Open by lightly applying pressure on the
upper right-hand side
1 Audio output
2 Cinch sockets, left and right channel
2 Dolby Digital-output (AC3)
3 Video output (FBAS)
4 Scart socket TV connection
5 Scart socket VCR/AUX connection
6 DATA socket
Interface for serial data transmission
(Service)
7 Satellite IF signal input
Output of the LNB supply voltage and con-
trol signals (22-kHz and DiSEqC 1.1)
8 Satellite IF signal output loop-through Sat IF
signal
9 Satellite IF input for analogue reception.
External coax-bridge from 8 to 9 included in
delivery.
10 Mains voltage supply line
