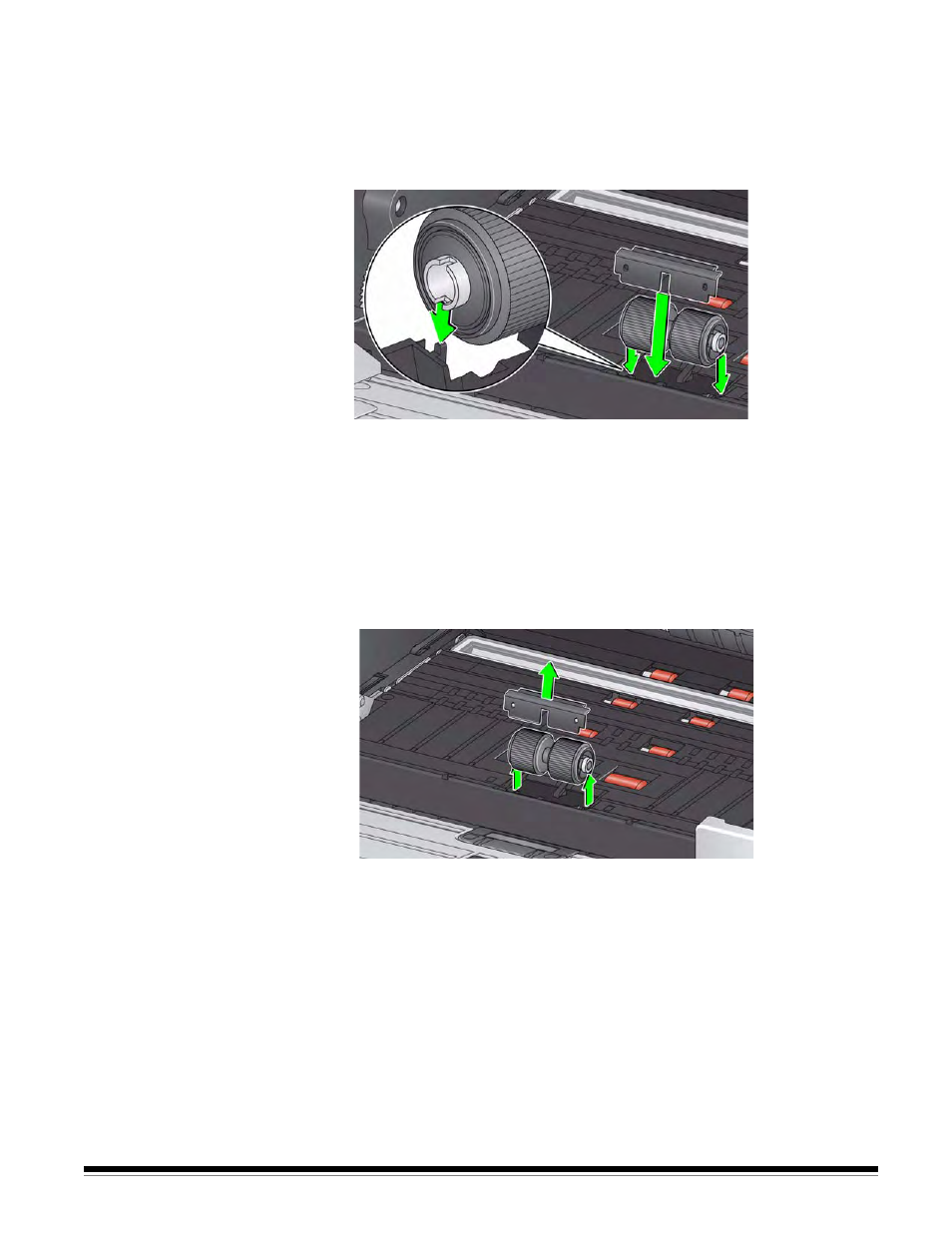

Replacing the separation
roller 1. Open the scanner cover.
2. Remove the pre-separation pad by lifting the pad up and out of position;
then remove the separation roller.
3. Insert the new separation roller. Be sure to line up the slots on the
separation roller with the holders.
4. Reinstall the pre-separation pad. Be sure it snaps into place.
NOTE: It is recommended that you replace the pre-separation pad every
time you replace the separation roller or separation tires.
5. Close the scanner cover.
Replacing the separation
roller tires 1. Open the scanner cover.
2. Remove the pre-separation pad by lifting the pad up and out of position;
then remove the separation roller.
3. Replace each tire by sliding the tire off the core.
4. Install each new tire by gently pulling it over the core.
IMPORTANT: Do not overstretch the tire; it may tear.
5. Reinstall the separation roller. Be sure to line up the slots on the separation
roller with the holders.
6. Reinstall the pre-separation pad. Be sure it snaps into place.
NOTE: It is recommended that you replace the pre-separation pad every
time you replace the separation roller or separation tires.
7. Close the scanner cover.
