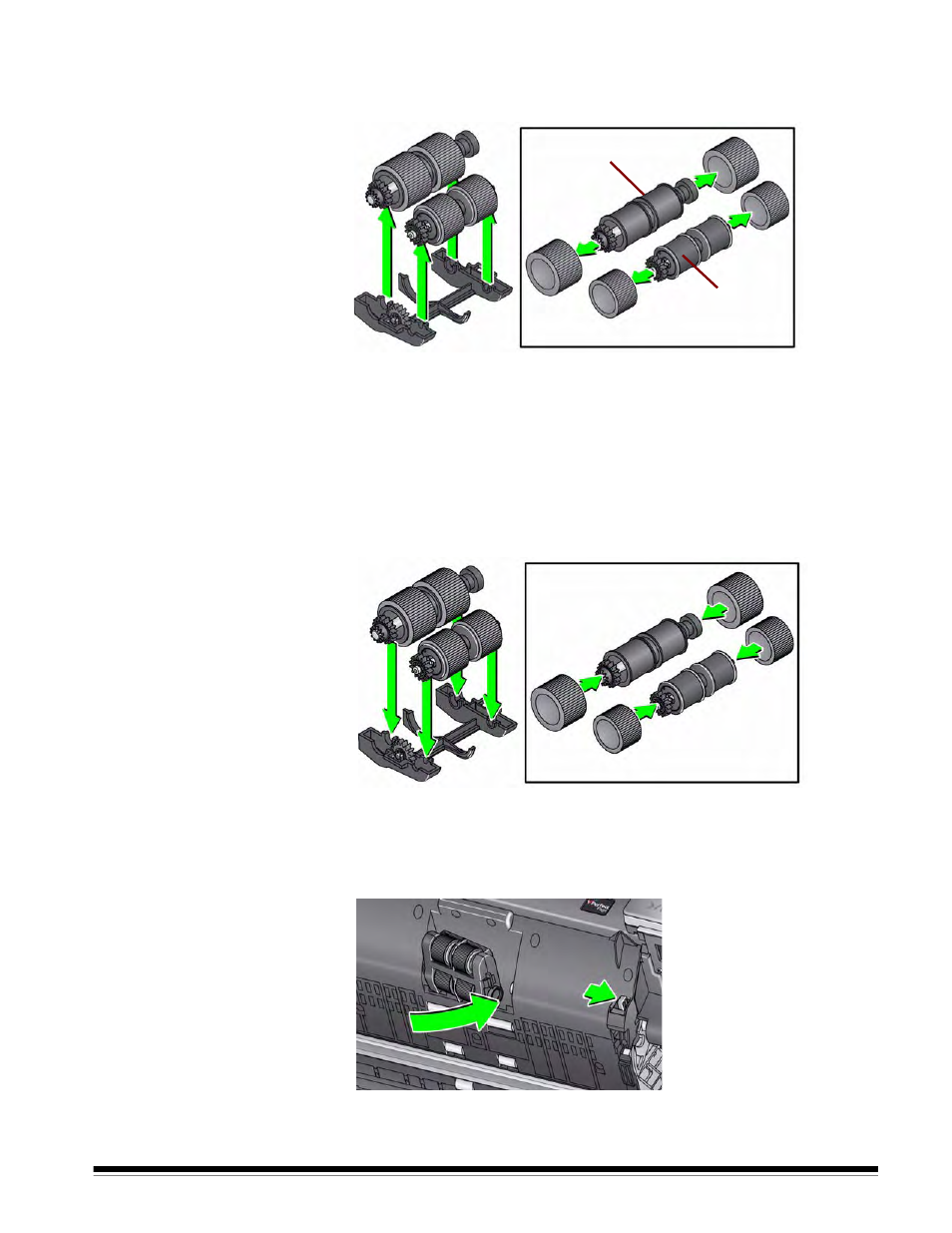

5. Remove both core assemblies.
6. Replace each tire by sliding the tire off the core.
7. Install each new tire by gently pulling it over the core. The tires do not need
to be installed in any specific orientation.
NOTE: When changing tires, be sure to put the larger tires on the longer
shaft and the smaller tires on the shorter shaft.
IMPORTANT:Do not overstretch the tire; it may tear.
8. Replace each core assembly in the lower feed module housing and align
the tabs on the upper housing with the slots on the lower housing.
9. Press the upper and lower housings together until they snap into place.
10. Push the feed module release lever to the right and insert the feed module
into position. Be sure the ends align and then release the feed module
release lever. Verify that the feed module is securely in place.
11. Close the scanner cover.
Longer shaft
Shorter shaft
