Kodak I3200 - Manual (Page 25)

A-61771 March 2013 4-5
Changing print
positions

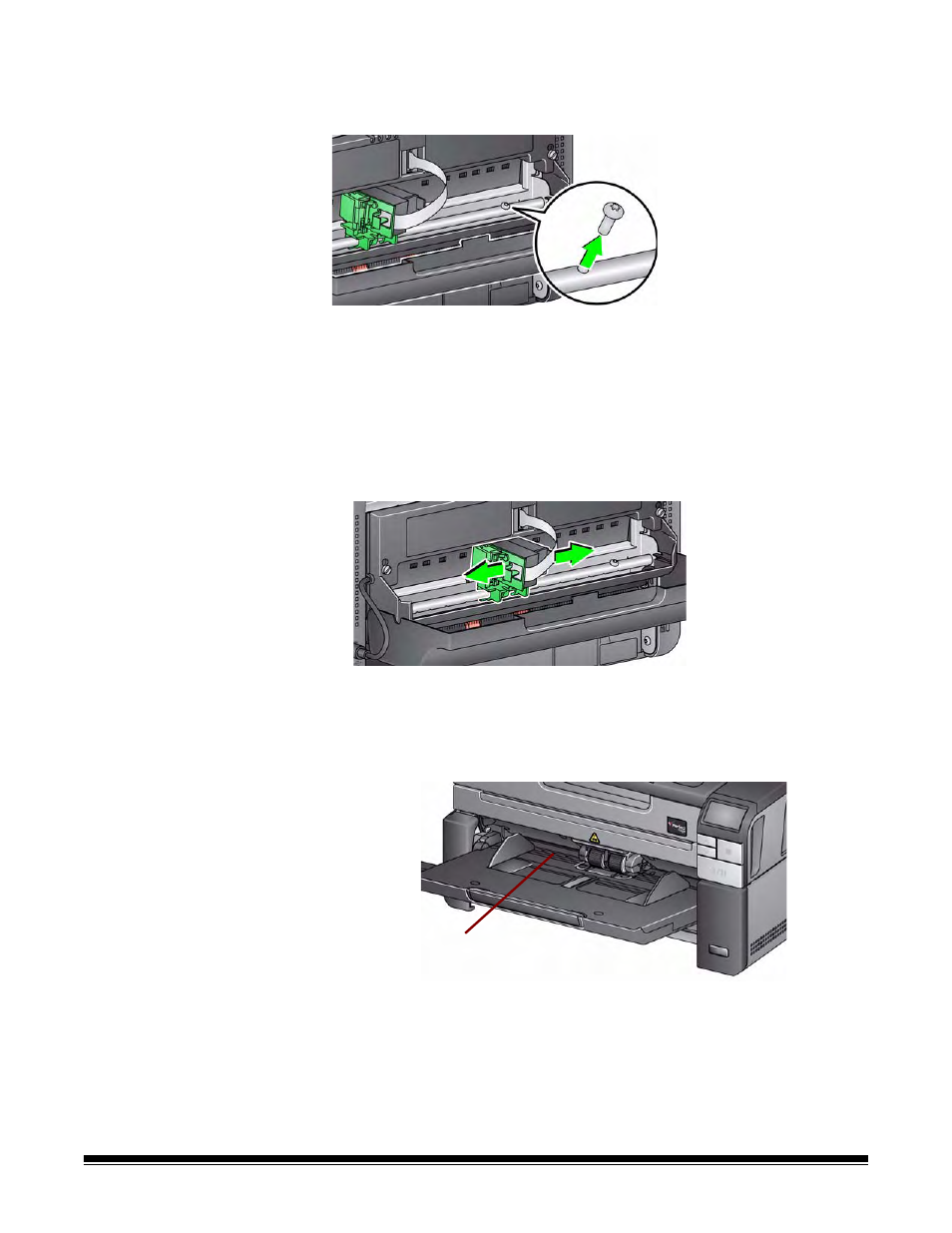

You will need to remove the printing location screw if you want to use 11 print
positions. If you leave the screw in place, only 9 print positions will be
available.
The horizontal print position must be changed manually.
1. Open the printer door.
2. Slide the printer carrier to the desired printing position.
IMPORTANT: When changing print positions, it is important to verify that
the printer carrier is securely in a printing (detent) position.
When you slide the printer carrier into a printing position,
you will be able to feel the printer carrier click into place.
3. Close the printer door.
NOTE: The print location indicators at the edge of the transport can be
used as a guide to verify your horizontal print position.
