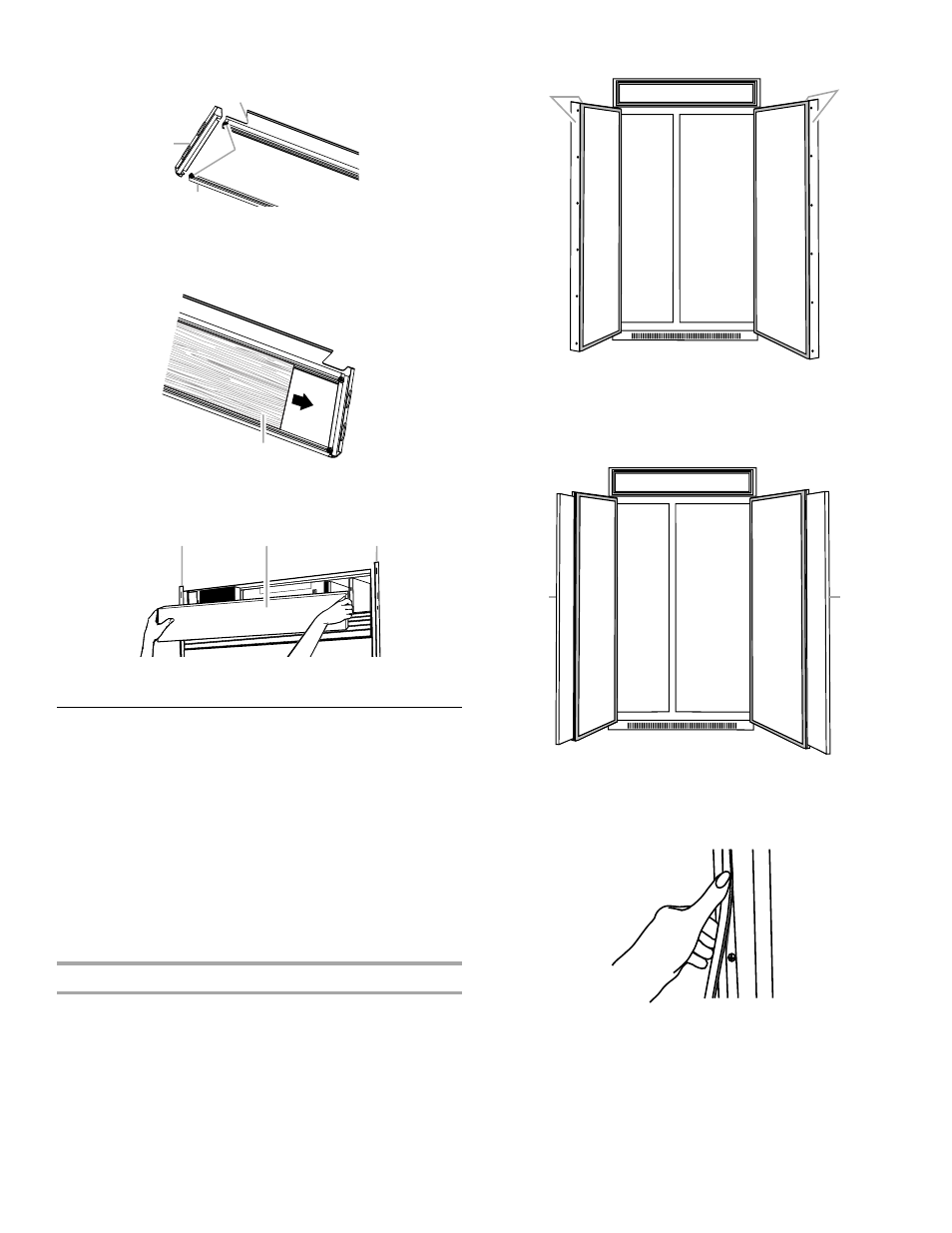

3. Remove one end cap by loosening the nuts and sliding off the
end cap.
4. Slide the panel into the top grille channel and reattach the
end cap.
5. Replace the top grille in the cabinet side trims and pull the
panel down slightly to lock it into place.
Install Overlay Series Custom Panels
IMPORTANT:
■ Install the custom handles prior to installing the panels on
the refrigerator. For more information on KitchenAid
custom handle selection, refer to the KitchenAid Catalog,
visit www.kitchenaid.com, or call 1-800-422-1230.
In Canada, visit www.KitchenAid.ca, or call
1-800-806-6777.
■ Create custom door overlay panels according to the
specifications in the “Overlay Series Custom Panels”
section.
■ KitchenAid is not responsible for the removal or addition
of molding or decorative panels that would prevent the
refrigerator from being serviced.
Door Panel Installation
1. Remove all tape and door bracing from the refrigerator and
freezer doors.
2. Open the refrigerator and freezer compartment doors.
3. Remove the handle side and top trims.
A. Trims
4. Slide the custom panels into the bottom and hinge side trims
on the refrigerator compartment and freezer compartment
doors, making sure that the backer panel fits into the hinge
side trims.
A.Panels
5. Reinstall the handle-side and top trims.
6. Remove the protective skin from the screw covers. Snap the
screw covers into the handle trim section.
A. Bottom rail
B. Nuts C. End cap
D. Top rail
A. Panel
A. Top grille
B. Cabinet side trim
C
B
A
D
A
B B A
A
A
A A
