12

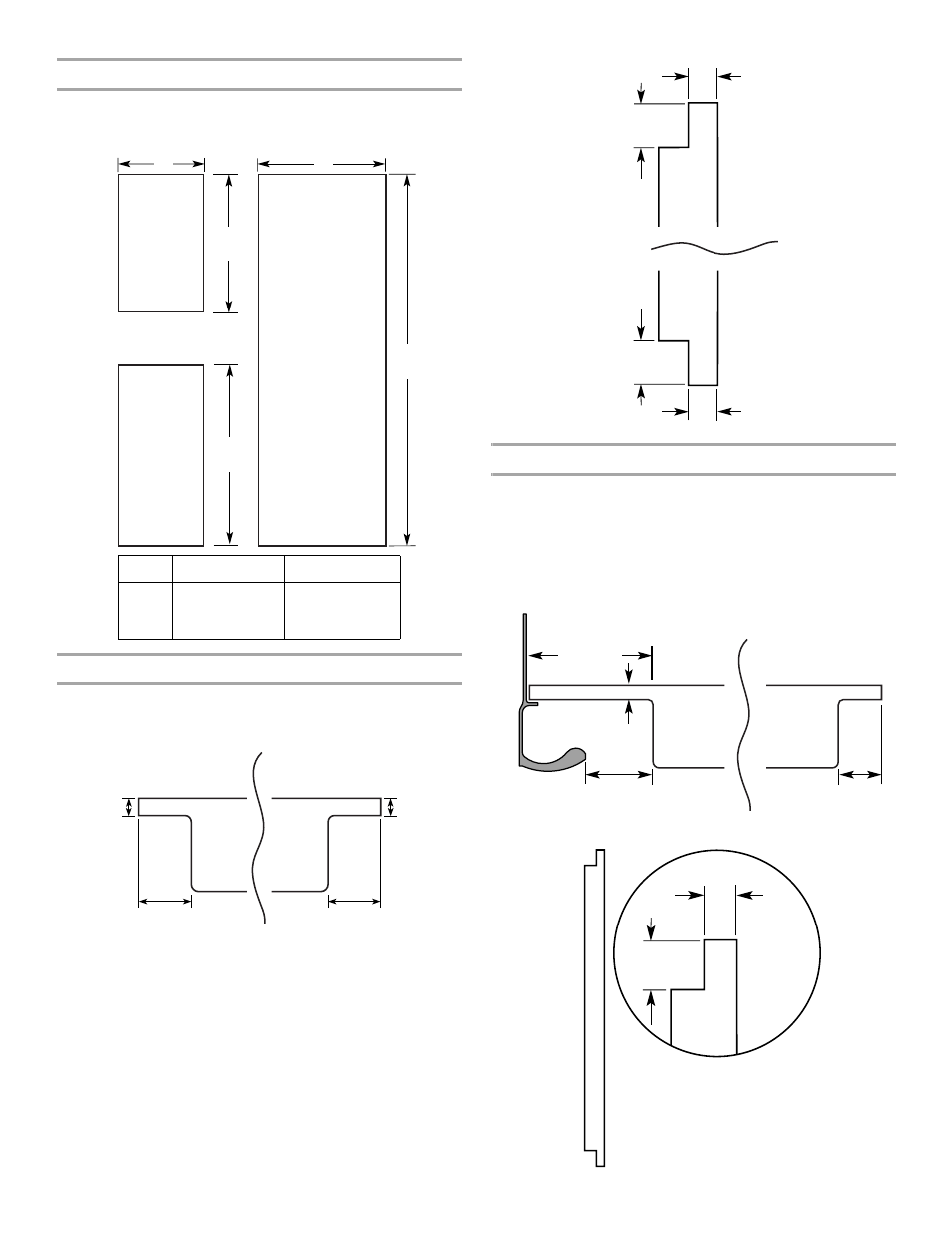

Door Panels for Dispenser Models
The two freezer panels combined should not weigh more than
30 lbs (13.5 kg). The refrigerator panel should not weigh more
than 50 lbs (23 kg).
Top Grille Panel – Routing Requirements
Top and bottom edges of the top panel should be edge routed
¹⁄₂" (1.3 cm) and ³⁄₈" (9.5 mm), respectively. Both ends should be
edge routed
⁷⁄₈" (2.2 cm) as shown.
NOTE: When creating a panel with face detail, the offsets will be
hidden and must be accounted for in order to center the detail in
the top grille.
Door Panels – Routing Requirements
If an extended handle kit is used, then routing the handle side of
the panels is not required. See “Classic Series Factory Panels
and Kits” for more information on ordering extended handles.
If the standard handle is used, rout the entire handle side of both
panels 3
¹⁄₄" (8.25 cm) to allow for finger clearance. Then rout the
other sides 1" (2.54 cm).
Standard Handle – Top View
Door Panel - Side View
Model A B
36
42
48 14
¹⁄₄" (36.2 cm)
16 ³⁄₄" (42.6 cm)
19
¹⁄₄" (48.9 cm)
19
¹⁄₄" (48.9 cm)
22 ³⁄₄" (57.8 cm)
26
¹⁄₄" (66.7 cm)
70
⁷⁄₁₆
"
(179 cm)
23
⁷⁄₁₆
"
(59.5 cm)
34
⁷⁄₁₆
"
(87.4 cm)
A B
¹⁄₄
"
(6.35 mm)
max.
⁷⁄₈
"
(2.2 cm)
Top
Grille
¹⁄₄
"
(6.35 mm)
max.
⁷⁄₈
"
(2.2 cm)
Top
Grille
¹⁄₂
"
(1.3 cm)
min.
¹⁄₄
"
(6.35 mm) max.
Top
Bottom
³⁄₈
"
(9.5 mm)
min.
¹⁄₄
"
(6.35 mm) max.
Center face
detail between
offsets
2" (5 cm)
min.
¹⁄₄
" (6.35 mm) max.
3
¹⁄₄
"
(8.25 cm)
min.
Door
Panel
Handle
1"
(2.54 cm)
Door
Panel
Hinge Side
¹⁄₂
" (1.3 cm)
min.
¹⁄₄
"
(6.35 mm)
max.
Panel
