Classic, Architect ® and Pro Line ® Series
Custom Side Panels
Custom side panels may be needed when not enough space is
available to have cabinets on both sides of the refrigerator or
when the refrigerator is placed at the end of a cabinet run. You
may choose an Inset, Flush, or Recessed Inset panel installation.

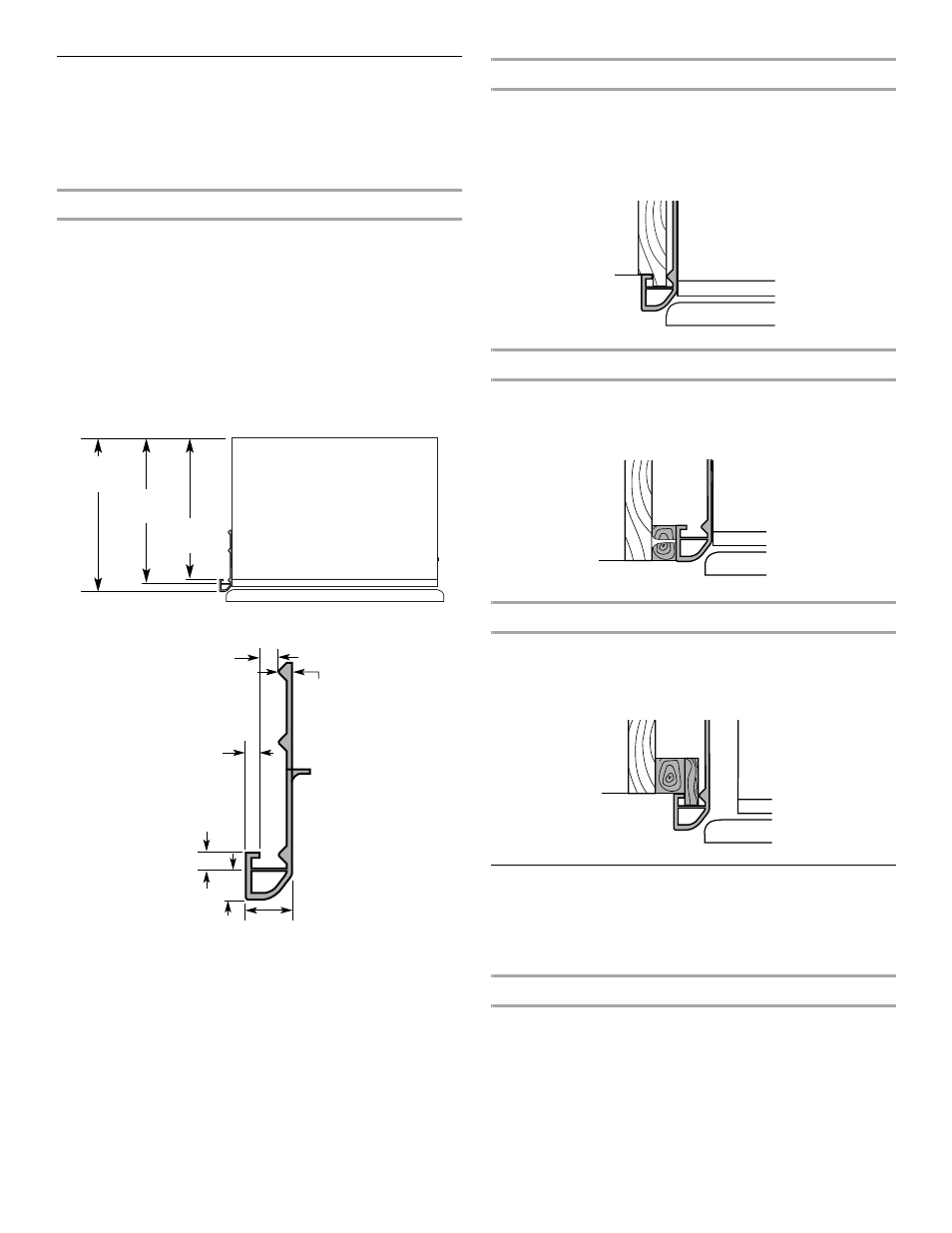

Refrigerator and Side Trim Dimensions
The width and height of a side panel are determined by the type
of installation you are planning.
NOTES:
■ The dimensions shown are actual product dimensions
and may not reflect the needed panel installation
dimensions.
■ The side panel should be a minimum of ¹⁄₂" (1.3 cm) thick
to prevent warping.
■ If the opening depth is 25" (63.5 cm) or more, you may
want to install a support board on rear wall.
Refrigerator
Side Trim
Inset Installation Dimensions
1. Measure the distance from point A (as shown) to the back
wall. Add ⁷⁄₃₂" (5.6 mm) to this measurement to allow the side
panel to fit into the trim.
2. If the panel is more than ¹⁄₄" (6.35 mm) thick, rout the front
edge to allow the side panel to fit into the trim.
Flush Installation Dimensions
1. Measure the distance from point A (as shown) to the back
wall.
2. Attach the support board with a screw or adhesive that is
compatible with aluminum and wood.
Recessed Inset Installation Dimensions
1. Measure the distance from point A (as shown) to the back
wall.
2. Rout the front edge of the support board or attach a ¹⁄₄"
(6.35 mm) board to hold the panel in the cabinet side trim.
Overlay Series Custom Side Panels
Custom side panels may be needed when not enough space is
available to have cabinets on both sides of the refrigerator or
when the refrigerator is placed at the end of a cabinet run. You
may choose an Inset or Recessed Inset panel installation.
Refrigerator and Side Trim Dimensions
The width and height of a side panel are determined by the type
of installation you are planning.
NOTES:
■ The dimensions shown are actual product dimensions
and may not reflect the needed installation dimensions.
■ The side panel should be a minimum of
¹⁄₂" (12 mm) thick
to prevent warping.
■ If the opening depth is 25" (63.5 cm) or more, you may
want to install a support board on rear wall.
24
¹⁄₈
"
(61.3 cm)
23
¹⁄₂
"
(59.7 cm)
23
¹¹⁄₁₆
"
(60.3 cm)
¹¹⁄₆₄
"
(4.5 mm)
¹⁄₄
"
(6.35 mm)
³⁄₁₆
"
(4.7 mm)
⁷⁄₃₂
"
(5.5 mm)
¹³⁄₃₂
" (10 mm)
⁵⁄₈
"
(15.7 mm)
A
A
A
