PRODUCT SUMMARY

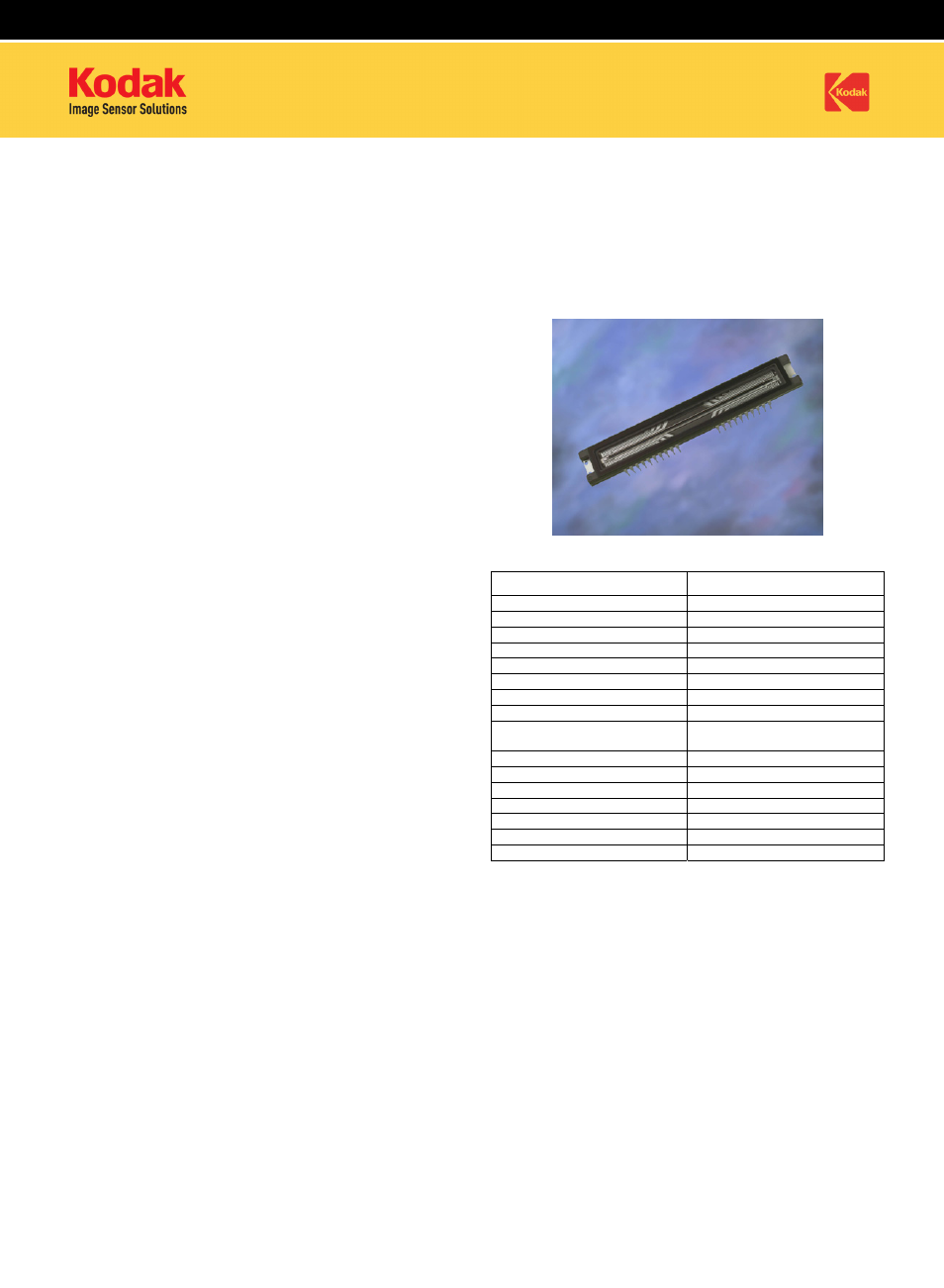

KODAK KLI-6013 IMAGE SENSOR

6002 X 3 TRI-LINEAR CCD IMAGE SENSOR

DESCRIPTION

The KODAK KLI-6013 Image Sensor is a multispectral,
linear solid-state image sensor for color scanning
applications where high resolution and high dynamic
range are required. The imager consists of three
parallel linear photodiode arrays each with 6000 active
photosites for the output of R, G, and B signals. This
device offers high sensitivity, high data rates, low noise
and negligible lag. Individual electronic exposure control
for each color allows the sensor to be used under a
variety of illumination conditions. There are 16 light-
shielded elements at each end of each array.

FEATURES

• Tri-Linear Color Array 3 x 6002 pixels
• 8 line spacing between color channels
• Single shift register per channel
• High off-band spectral rejection
• Dark reference pixels provided
• Antireflective glass
• Wide dynamic range, low noise
• No image lag
• Electronic exposure control
• High charge transfer efficiency
• Two-phase register clocking
• 74ACT logic compatible clocks
• 10MHz maximum data rate

APPLICATIONS

• Photography
• Industrial Imaging
• Scientific Imaging

Parameter Typical

Value

Architecture

3 Channel, RGB Trilinear CCD

Pixel Count

6002 x 3

Pixel Size

12 µm (H) x 12 µm (V)

Pixel Pitch

12 µm

Inter-Array Spacing

96 µm (8 lines effective)

Imager Size

72.0 mm (H) x 0.20 mm (V)

Saturation Signal

275,000 electrons

Dynamic Range

72 dB

Responsivity
(wavelength = 460, 550, 650 nm)

19, 24, 33 V/µJ/cm

2

Output Sensitivity

8 µV/electron

Dark Current

0.02 pA/pixel

Dark Current Doubling Rate

9° C

Charge Transfer Efficiency

0.99999/Transfer

Photoresponse Non-uniformity

6% Peak-Peak

Lag (First Field)

0.5%

Maximum Data Rate

10 MHz/Channel

Parameters above are specified at T = 23°C (junction temperature) and
1 MHz clock rates unless otherwise noted.
