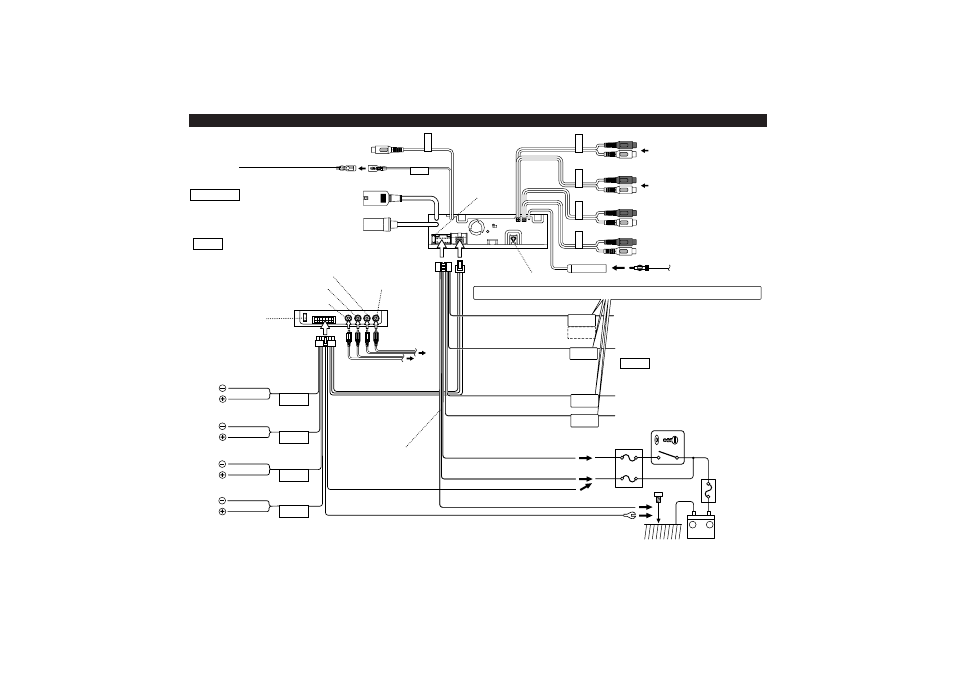

Connecting Cables to Terminals
P.CONT
TEL MUTE
ILLUMI
EXT.
CONT.
ANT CONT
FRONT • L
FRONT • R
REAR • L
REAR • R
– +
FRONT
REAR
NON FADING
AUX IN
PRK SW
VIDEO OUT
A
B
A
B
FM/AM antenna input
Rear left output (White)
Rear right output (Red)
Fuse (5A)
Wiring harness
(Accessory1)
White/Black
Gray/Black
Green/Black
Purple/Black
White
Gray
Green
Purple
To front left
speaker
To front right
speaker
To rear right
speaker
To rear left
speaker Ignition cable (Red)
Battery cable (Yellow)
Ground cable (Black) · (To car chassis)
Ignition key
switch
Car fuse box
(Main fuse)
ACC
Car fuse
box
Battery
If no connections are made, do not let the cable come out from the tab.
Front left output (White)
Front right output (Red)
Power control/ Motor
antenna control cable
(Blue/White)
Dimmer control cable
(Orange / White)
To car light control switch
External amplifier control cable
(Pink / Black)
To "EXT.AMP.CONT." terminal of the amplifier
having the external amp control function.
Non-fading left output /
Left preout (White)
Non-fading right output /
Right preout (Red)
AUX left input (White)
AUX right input (Red)
RCA cable
(Accessory8)
Fuse (10A)
To KENWOOD disc changer/ DAB control input
To connect these leads, refer to the relevant instruction manuals.
NOTE
To parking brake detection
switch harness of car
For the sake of safety, be sure
to connect the parking sensor.
2 CAUTION
To the monitor unit
Connection cable (Accessory9)
To KDS-P901
Wiring harness
(Accessory6)
Centre unit
To KDS-P901
Amplifier unit
Front left input (White)
Front right input (Red)
Rear right input (Red)
Rear left input (White)
Connect to the terminal that is grounded
when either the telephone rings or during
conversation.
To connect the KENWOOD navigation
system, consult your navigation manual.
NOTE
TEL mute cable (Brown)
Connect either to the power control terminal
when using the optional power amplifier, or to
the antenna control terminal in the vehicle.
