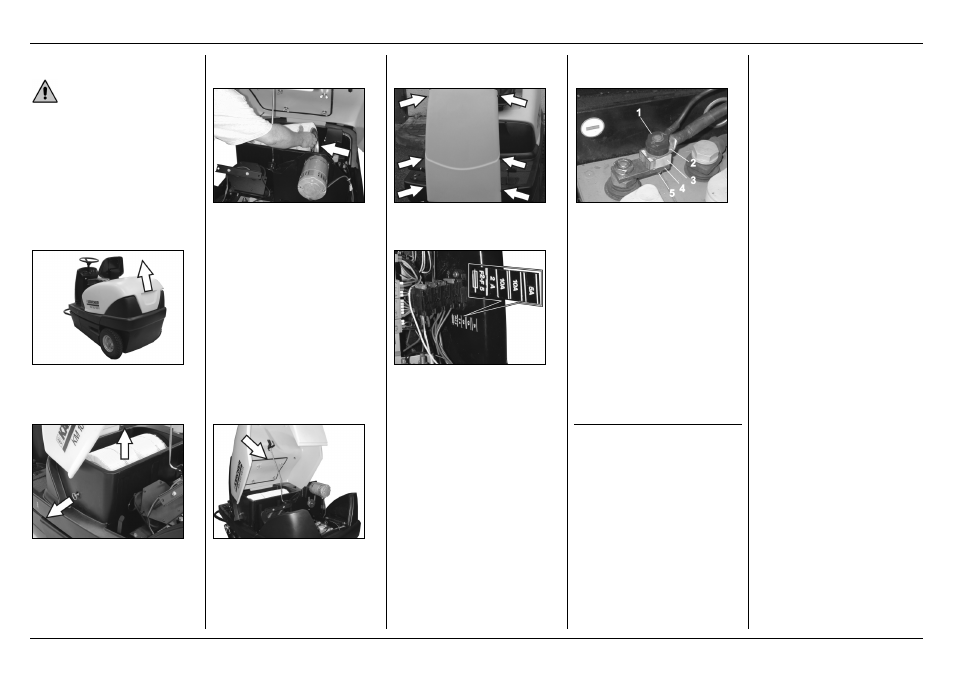

Replace the dust filter
Danger!
! Empty the debris container prior
to beginning work on replacing
the dust filter
! Wear a dust protection mask
when working on the filter system
! Observe the safety precautions
for handling fine dust
! Open unit cover, engage stay bar
! Pull out the handle of the filter
bracket and engage it
! Take out filter cartridge
! Insert the new filter
! On the drive side, engage the
carrier into the holes
! Re-engage the handle of filter
dedusting
Note:
Make sure when mounting the new
filter that the lamella are not
damaged
Replacing the filter box
seal
Remove filter box seal from the
groove in the unit cover and insert
the new seal
Changing fuses
! Unscrew the screws at both sides
of the covering
! Replacing blown fuses
! Refasten front covering
Note:
— Use only fuses with the same
current rating
Battery terminal fuse
! Replace defective fuses
1 Nut
2 Battery charging cable
3 Terminal fuse
4 Bridge
5 Screw
Note:
It is strongly recommended to have
this work performed by a Kärcher
after-sales service station or an
authorised specialist .
Fault instructions
Machine does not move
!
Sit on the driver seat
! Disable the EMERGENCY-STOP
! Switch ON key switch
! Charge the battery
! Check fuses
! Notify the Kärcher service station
The sweeper moves only slowly
!
Check position of the parking
brake
! Notify the Kärcher service station
Machine not sweeping properly
!
Main brush and side brush are
worn, if applicable replace them
! Main brush does not turn, check
traction belt
! Check the operation of the
coarse-dirt flap
! Check sealing strips for wear,
adjust or replace them as
required
! Check the seal on the vacuum
system
! Notify the Kärcher service station
Machine making dust
!
Empty debris container
! Check drive belts for the suction
turbine
! Check sealing cup at the suction
turbine
! Check filter cartridge, clean or
replace it
! Check filter box seal
! Check sealing strips for wear,
adjust or replace them as
required
! Notify the Kärcher service station
Side brush does not turn
!
Check the fuse
! Notify the Kärcher service station
Poor sweeping around the edges
!
Replacing the side broom
! Notify the Kärcher service station
Activation of side brush or main
brush does not function
!
Check the seal on the vacuum
system
! By-pass cover open
! Notify the Kärcher service station
