Connection example
74
Connection example
TV
Cinch
L + R
Scart
Sat-IF
R

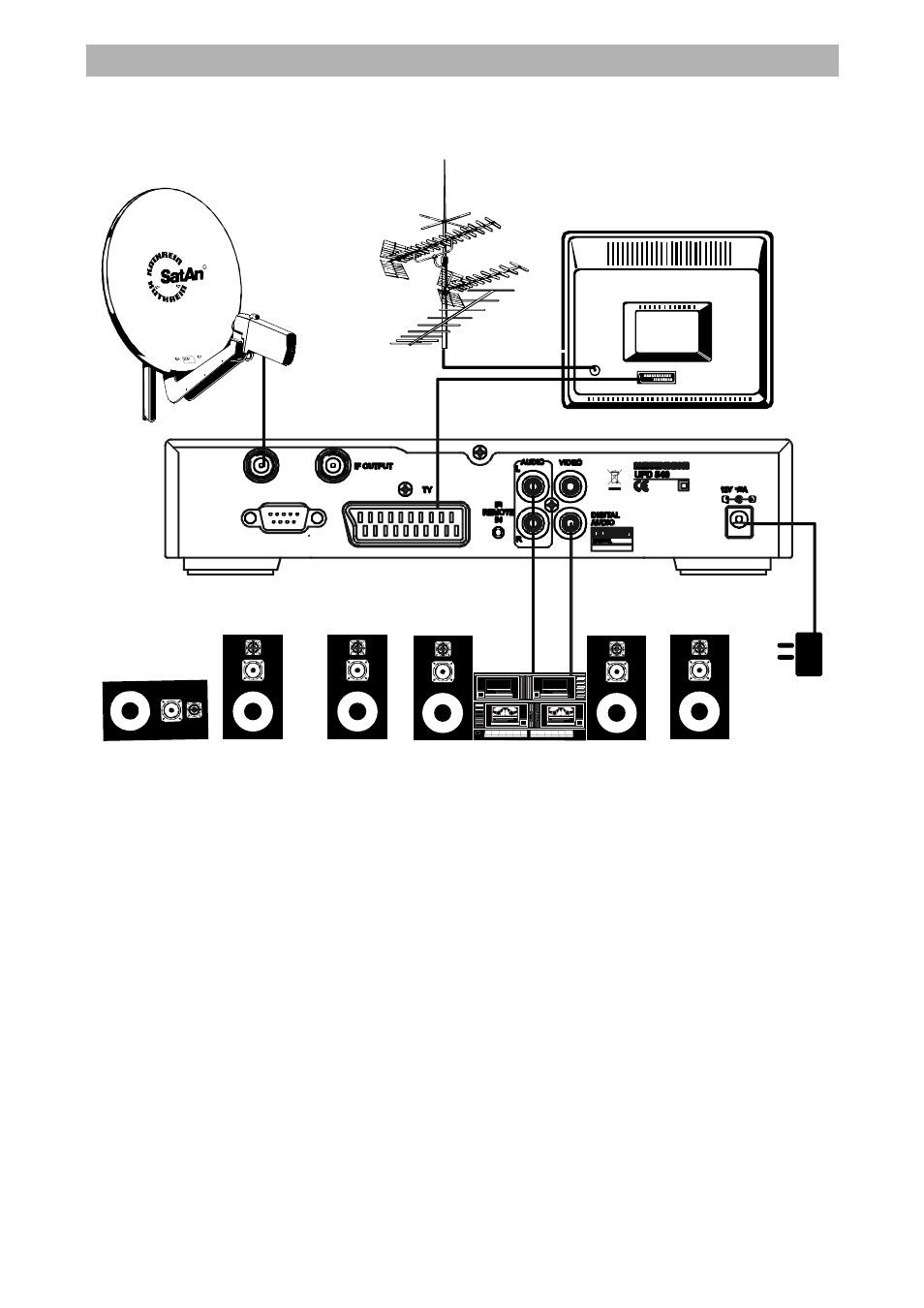

Connection of a DVR-S receiver on a TV set and a Hi-fi system for re-
ception of digital Sat TV and radio programmes.
For connection, one Scart cable and a Cinch cable are required. If
your TV set is equipped for stereo, stereo sound can also be repro-
duced via the stereo loudspeakers of your TV set.
The regional TV programmes can be received with the terrestrial an-
tenna on the TV set.
Digital sound
Hi-fi or Dolby digital system
