Operating Instructions
11
Operating Instructions

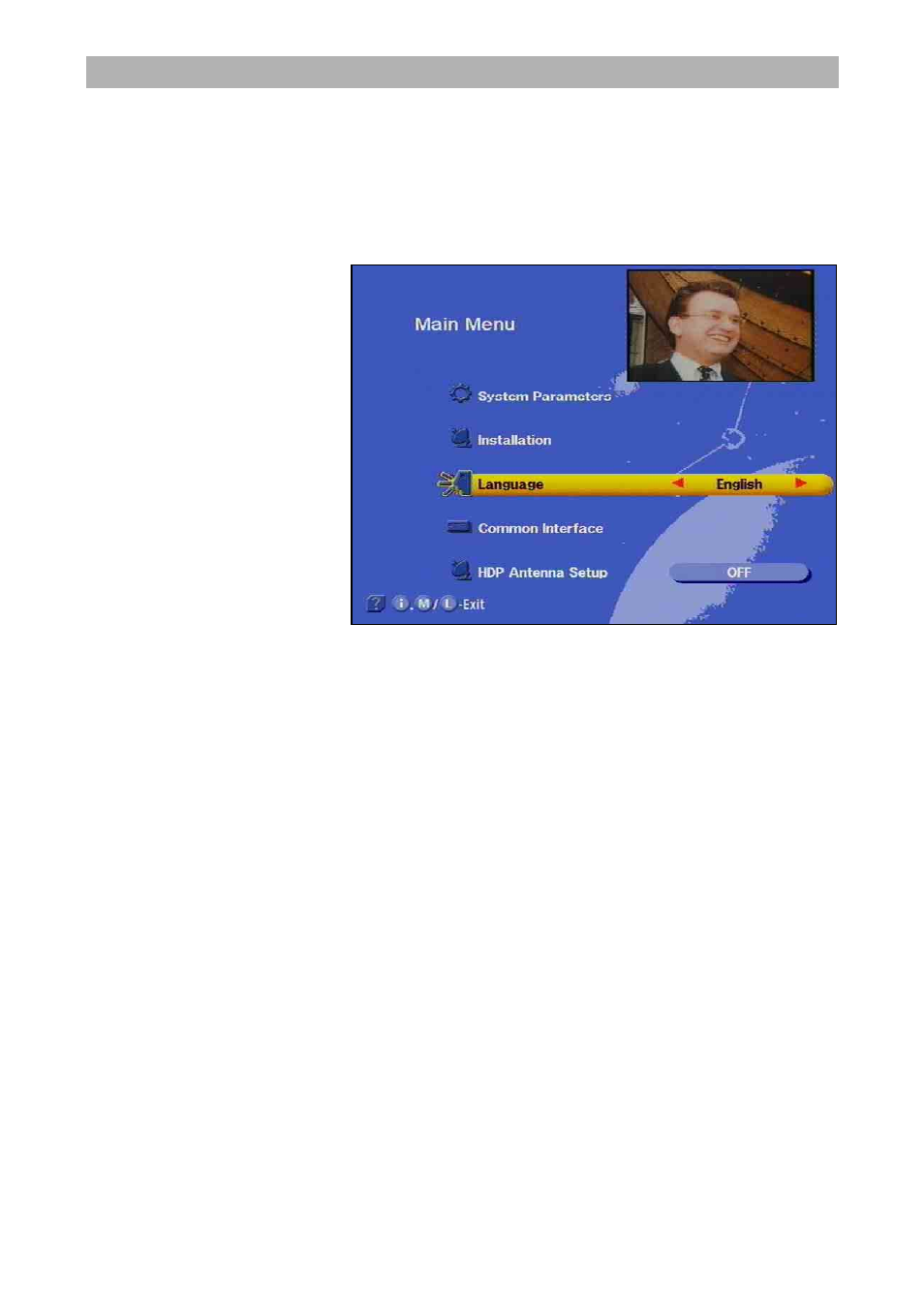

Menu concept
The menu concept is set up in a logical operating sequence.
The current selected programme always appears in the upper right-
hand corner of the screen.
Note:
The called up menus, submenus and menu items as well as the pa-
rameters to be set are respectively highlighted with a coloured bar.
The menus are mainly self-explanatory
Press
button to select the main menu and press the
buttons to select the submenus.
Press
to access the submenus. The items in the submenus are
selected by pressing the
buttons.
The settings allocated to specific menu items are executed either by
pressing the
buttons or the number buttons.
Press the
or
to exit the main menu, submenus and menu
items.
Button functions
is a changeover button (main channel list or help function) with
menu function. Press
to exit the setting.
is a changeover button. Identifier self-deleting. In function chan-
nel list: Deletes a channel.
is a switch-on button with menu functions.
Press
to exit the setting. In function channel list: Moves the chan-
nel to another position
Observe the bar on the
lower edge of the screen
with functions for the re-
spective menu item.
