B. Cable Specification
Two different types of cable could be used on this 24port Switch:
l Straight through cable
l Cross-over cable
l Fiber Optic cable if this 24port Switch has FX port

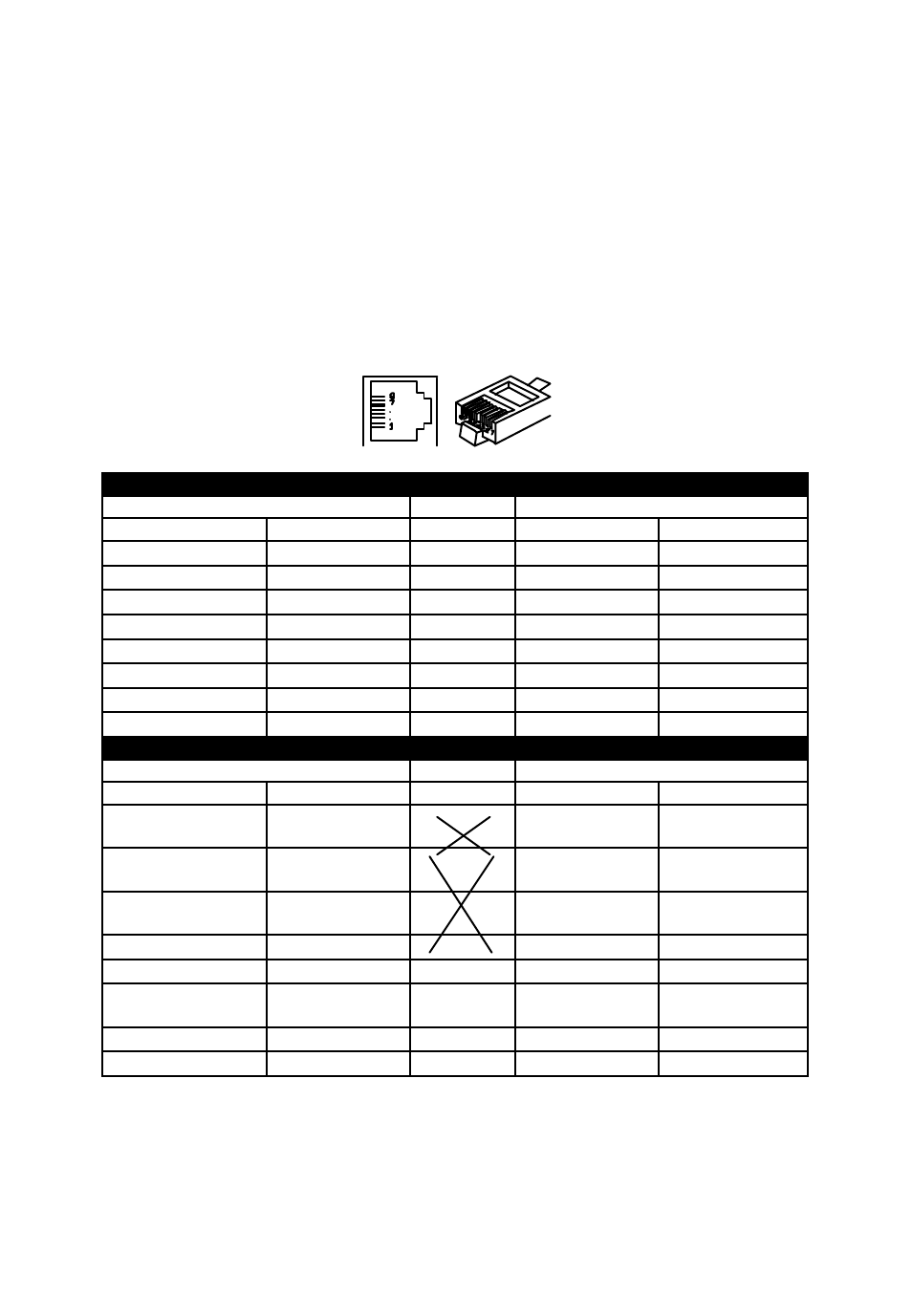

Cable Schematics
Straight-Through Cable
Hub / Switch side Adapter side
Pin # Pair # Pin # Pair #
1 RX+ White-Green ----------------- 1 RX+ White-Green
2 RX- Green ----------------- 2 RX- Green
3 TX+ White-Orange ----------------- 3 TX+ White-Orange
4 Not Used Blue ----------------- 4 Not Used Blue
5 Not Used White-Blue ----------------- 5 Not Used White-Blue
6 TX- Orange ----------------- 6 TX- Orange
7 Not Used White-Brown ----------------- 7 Not Used White-Brown
8 Not Used Brown ----------------- 8 Not Used Brown
Cross-Over Cable
Hub / Switch side Hub / Switch side
Pin # Pair # Pin # Pair #
1 RX+ White-Green ---- --
-- 1 RX+ White-Green
2 RX- Green ---- --
-- 2 RX- Green
3 TX+ White-Orange ---- --
-- 3 TX+ White-Orange
4 Not Used Blue 4 Not Used Blue
5 Not Used White-Blue 5 Not Used White-Blue
6 TX- Orange ---- --
-- 6 TX- Orange
7 Not Used White-Brown 7 Not Used White-Brown
8 Not Used Brown 8 Not Used Brown
