Step 13, Assembly – Keys Fitness KF-1560 User Manual
Page 20
Assembly
20

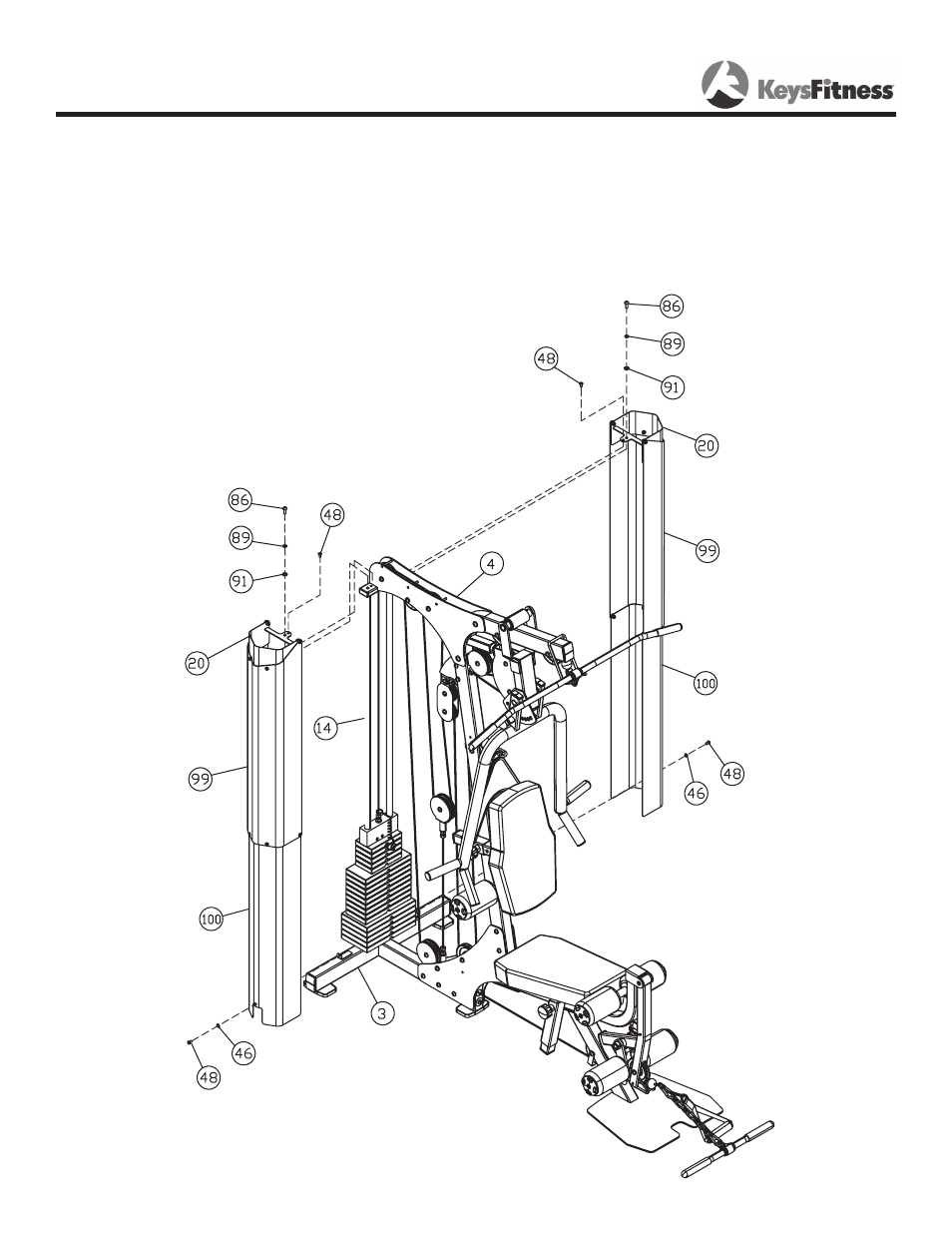

Step 13
Install Weight Shrouds (20, 99, 100) to each side of the Main Top Beam (4) using two
Washers (91), two Spring Washers (89), and Allen Bolts (86 & 48).
Secure the bottom portion of the Weight Shrouds (20, 99, 100) to the Rear Frame (3) using
two Washers (46) and two Allen Bolts (48).
Note: Tighten all hardware securely.
Figure 13
