Step 3, Assembly – Keys Fitness KF-1560 User Manual

Page 10

Text mode
Original mode

Assembly

Step 3

Install the Main Upright (2) onto the Seat Pad Support Receptacle (1). Secure it in place
using three Nylon Locknuts (93), six Washers (91), and three Bolts (80) on the side. Two Bolts
(87), one Spring Washers (88), three Washers (90), one Nylon Locknut (92) will secure it at
the bottom.

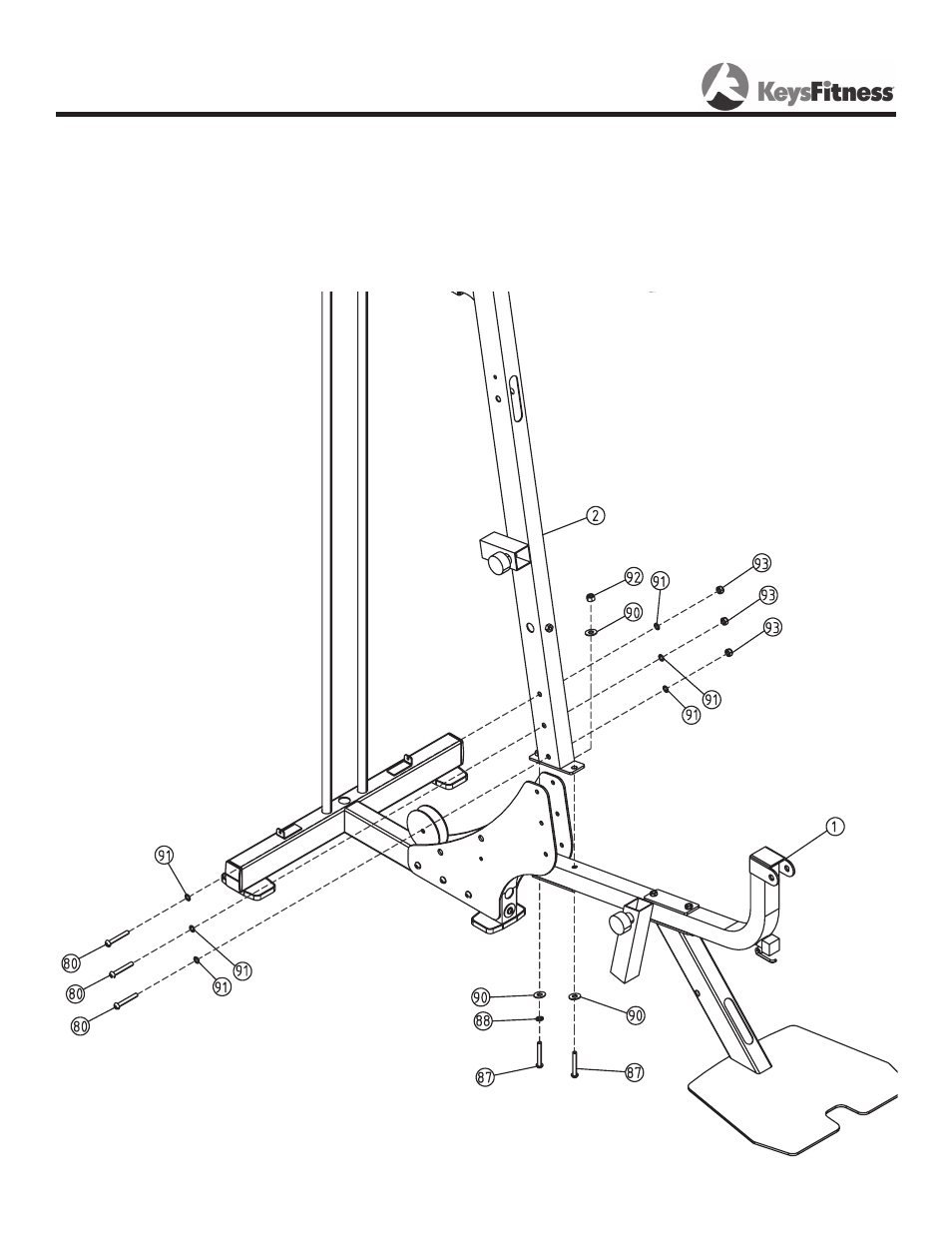

Figure 3
