Assembly
11
Step 4
Slide one Weight Stack Bumper (62) down each Guide Rod (14). Next, slide the weight plates
down the Guide Rods (14) in this order - five 15lb Plates (15), nine 10lb Plates (16), five 5lb
Plates (17), and the Top Plate (18). For more information see Weight Stack Placement (pg 23).
Insert the Main Top Beam (4) onto the two Guide Rods (14) and the Main Upright (2). Secure
Main Top Beam (4) to Main Upright (2) using two Nylon Locknuts (92), four Washers (90), two
Bolts (87). Last, use two Washers (91), two Spring Washers (89), and two Allen Bolts (86) to
secure the Main Top Beam (4) to the two Guide Rods (14).

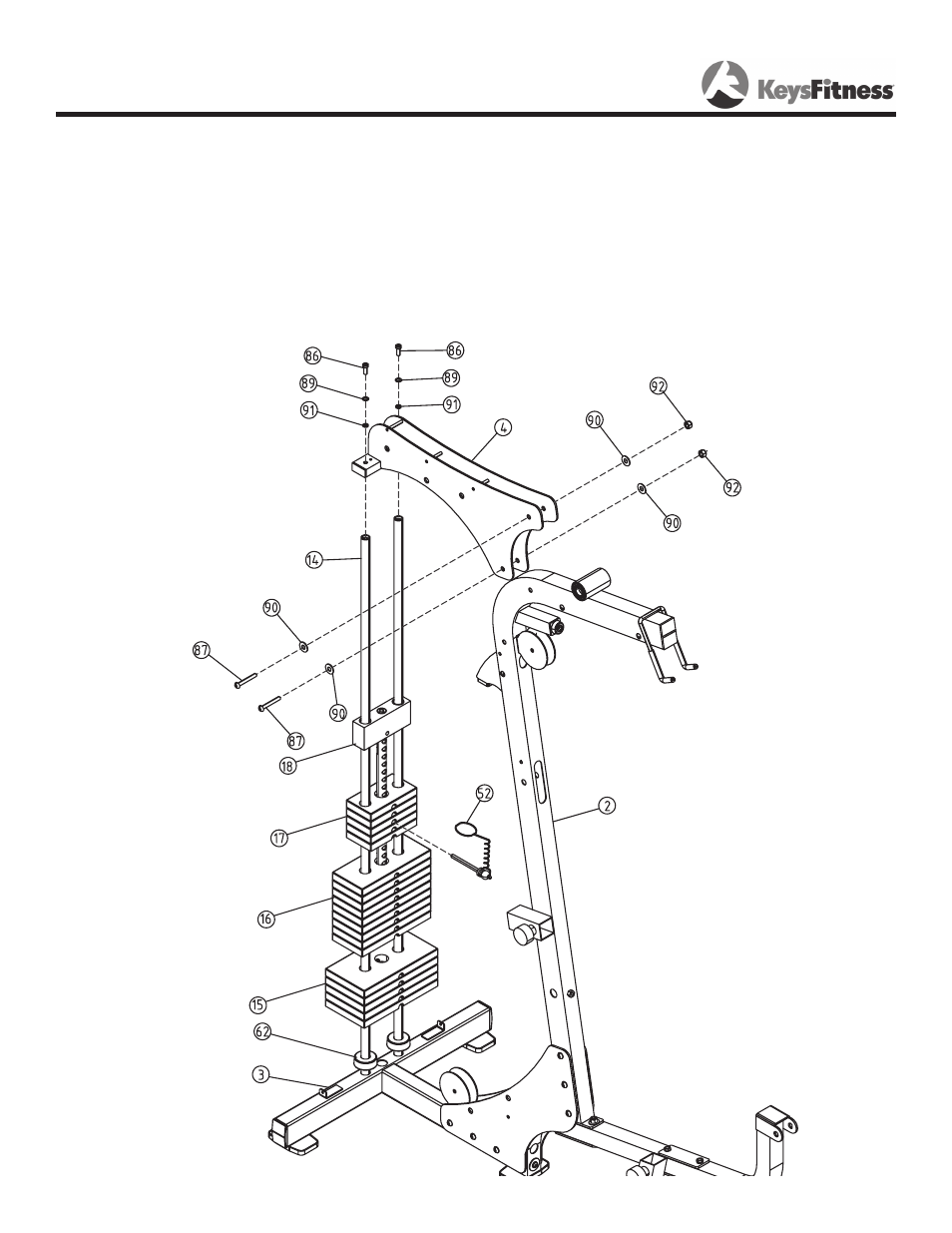

Figure 4
