Step 5, Assembly – Keys Fitness KF-1560 User Manual
Page 12
Step 5

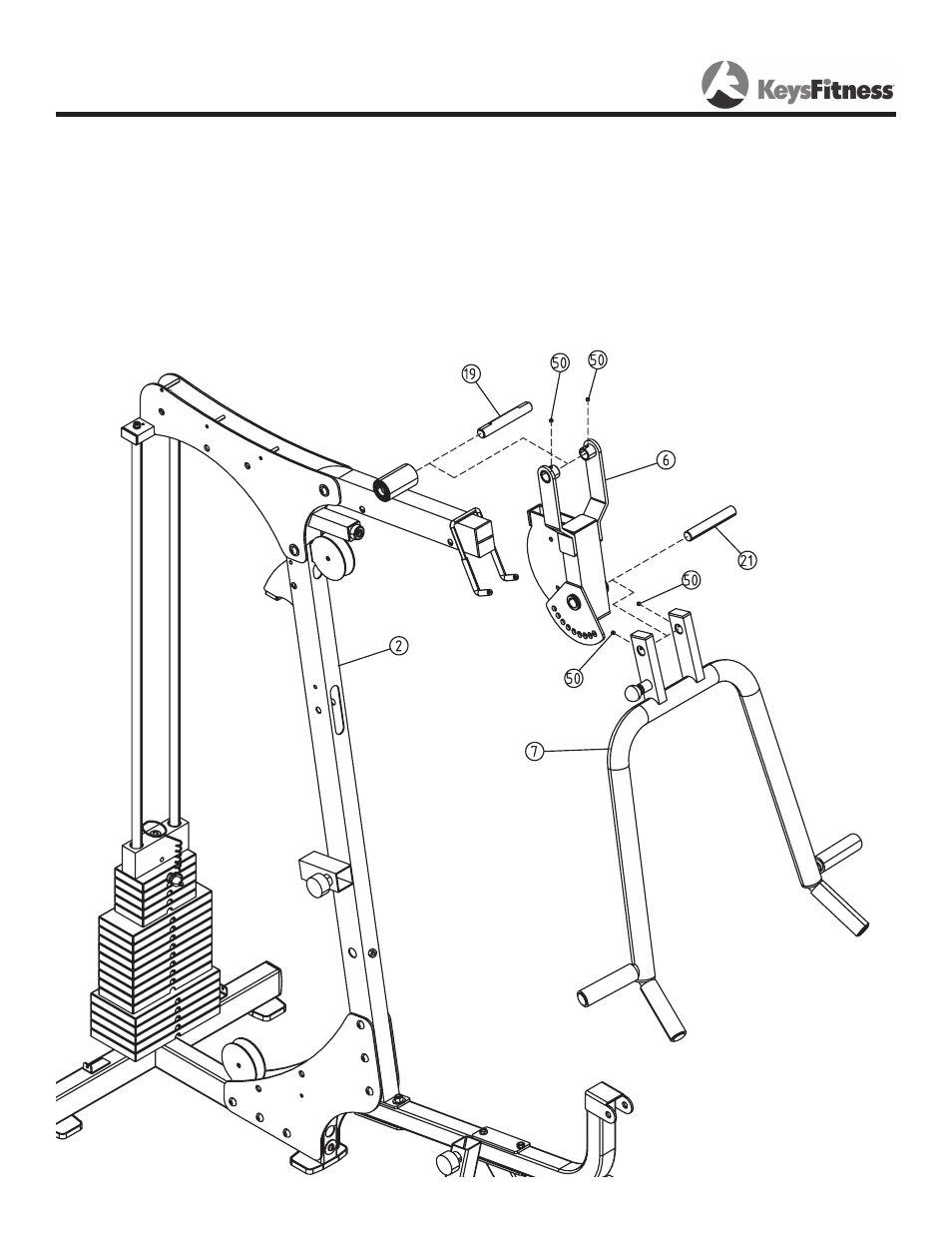

Attach Press Arm Support (6) to Main Upright (2) by aligning the holes and sliding the Shaft
(19) through.
Secure the Shaft (19) in place using two Set Screws (50).
Install Press Arm (7) to Press Arm Support (6) by aligning the holes and sliding the Shaft
(21) through.
Secure the Shaft (21) in place using two Set Screws (50).
Assembly
12
Figure 5
