28 | English

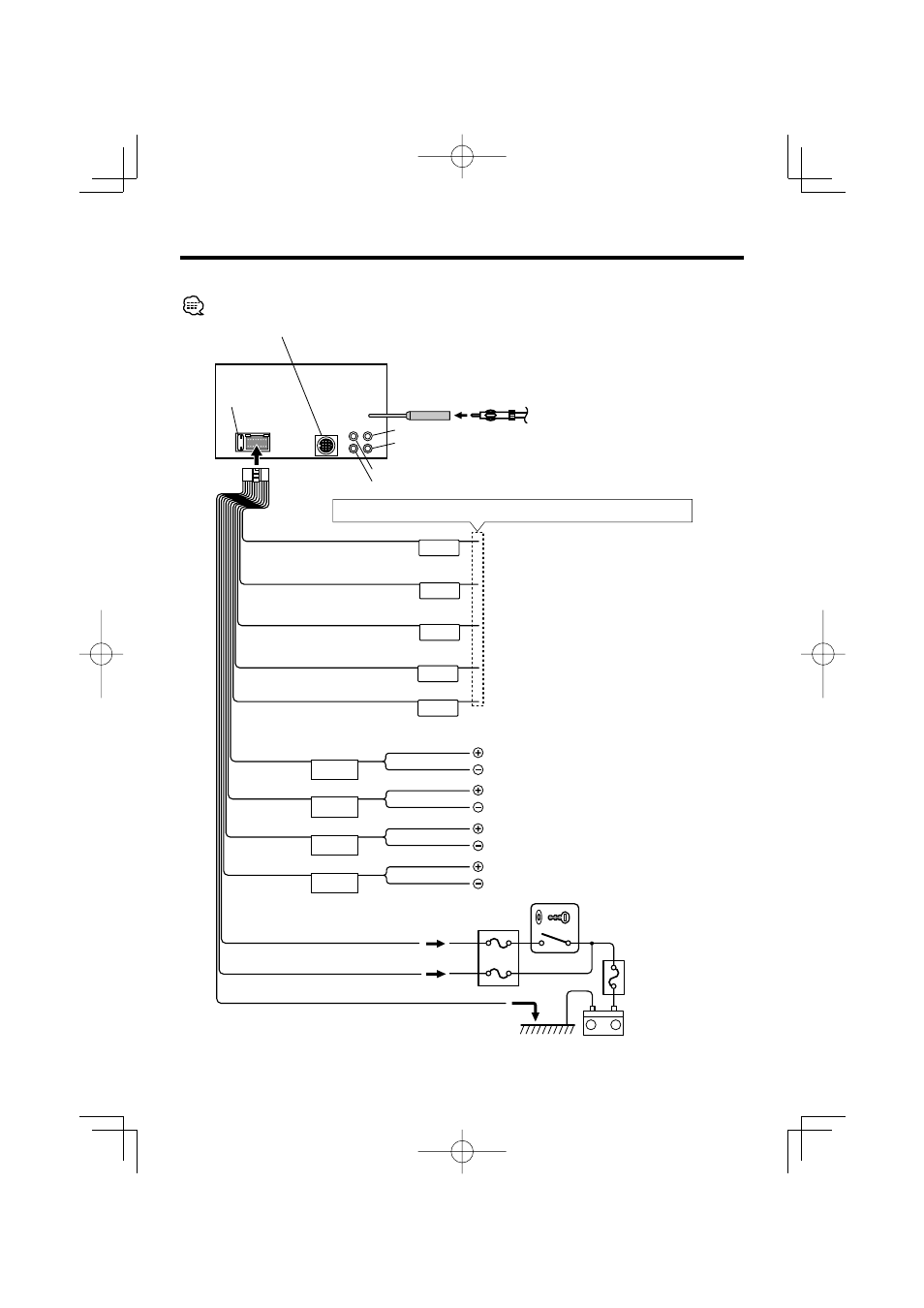

Connecting Wires to Terminals
– +
P.CONT
MUTE
ANT. CONT
ILLUMI
EXT.CONT.
FRONT L
FRONT R
REAR L
REAR R
FM/AM
antenna input
Front left output (White)
Front right output (Red)
Fuse (10A)
Kenwood disc changer control input
Accessory 1
White
Gray
Green
Purple
White/Black
Gray/Black
Green/Black
Purple/Black
To front left speaker
To front right speaker
Ignition wire (Red)
Battery wire (Yellow)
Ground wire (Black) - (To car chassis)
Ignition key
switch
Car fuse box
(Main fuse)
ACC
Car fuse box
Battery
If no connections are made, do not let the wire come out from the tab.
Rear left output (White)/ Sub Woofer left output (White)
Rear right output (Red)/ Sub Woofer right output (Red)
To connect the Disc changer, consult your
Disc changer manual.
Power control wire (Blue/White)
Motor antenna control wire (Blue)
Dimmer control wire (Orange / White)
When using the optional power amplifier, connect
to its power control terminal.
To car light control switch
Depending on what antenna you are using, connect
either to the control terminal of the motor antenna, or
to the power terminal for the booster amplifier of the
film-type antenna.
External amplifier control wire (Pink / Black) To "EXT.AMP.CONT." terminal of the amplifier having the
external amp control function.
TEL mute wire (Brown) Connect to the terminal that is grounded when either
the telephone rings or during conversation.
To rear left speaker
To rear right speaker
