English | 49

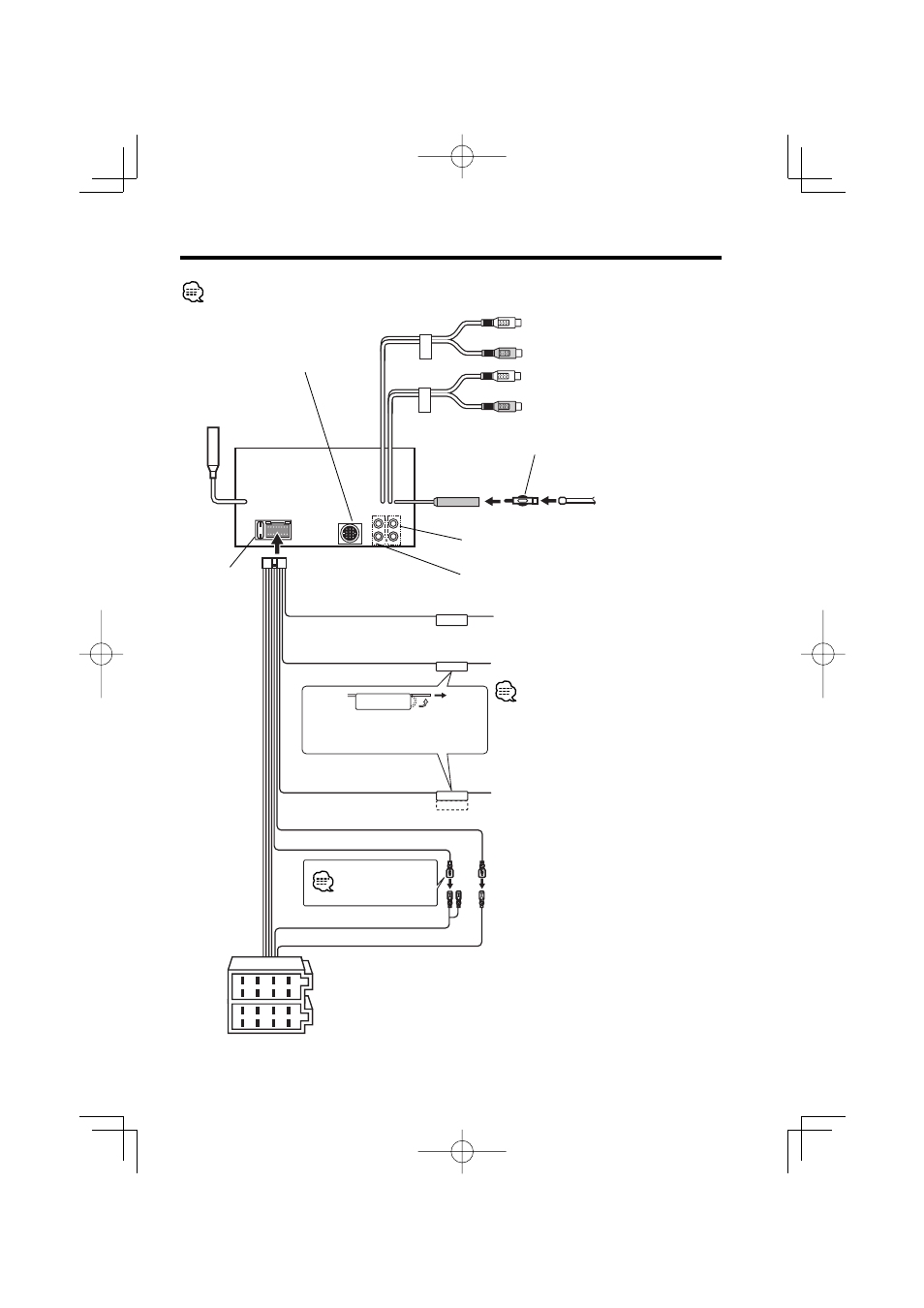

Connecting Wires to Terminals
MUTE
EXT.
CONT
P.CONT
ANT.CONT
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
AUX IN
SUB
WOOFER
Rear right output (Red) (DPX701U/DPX501U)/
Sub Woofer right output (Red) (DPX501U only)
Rear left output (White) (DPX701U/DPX501U)/
Sub Woofer left output (White) (DPX501U only)
Front left output (White)
Front right output (Red)
Battery wire (Yellow)
Ignition wire (Red)
FM/AM antenna input Antenna Cord (ISO)
Antenna Conversion Adaptor
(ISO–JASO) (Accessory
3)
To connect the Kenwood navigation system, consult
your navigation manual.
Wiring harness
(Accessory
1)
If no connections are made, do not
let the wire come out from the tab.
Power control/Motor antenna
control wire (Blue/White)
TEL mute wire (Brown)
Connect either to the power control terminal
when using the optional power amplifier, or to the
antenna control terminal in the vehicle.
Connect to the terminal that is grounded when
either the telephone rings or during conversation.
A-–7 Pin (Red)
A–4 Pin (Yellow)
Connector A
Connector B
Fuse (10A)
See next page
To External Display/
Steering remote
External amplifier control wire
(Pink/Black)
To "EXT.AMP.CONT." terminal of the amplifier
having the external amp control function.
To Kenwood disc changer/
External optional accessory
To connect these leads, refer to
the relevant instruction manuals.
AUX right input (Red)
AUX left input (White)
Sub Woofer right output (Red)
(DPX701U only)
Sub Woofer left output (White)
(DPX701U only)
