Konica Minolta Dynax/Maxxum 5D - Manual (Page 19)

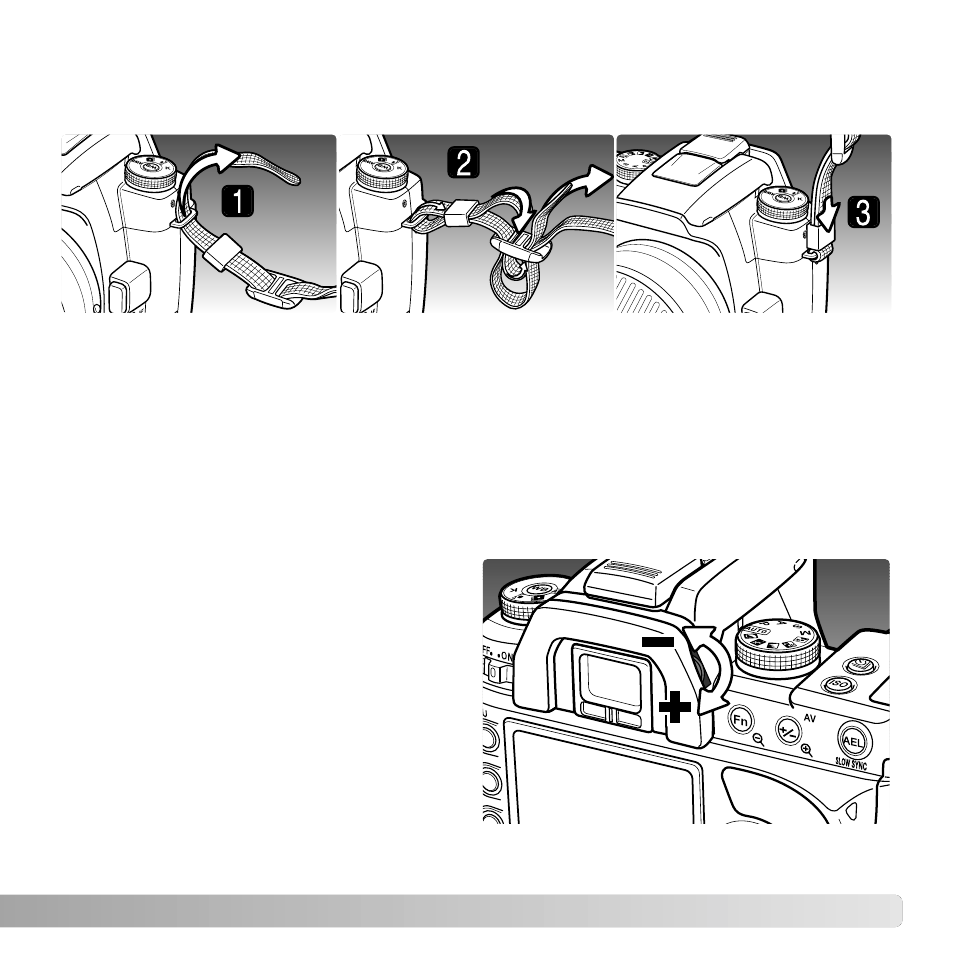

1. Pass the tip of the strap through the camera’s strap eyelet from below. Attach the
strap so the tip comes between the strap and the camera.
2. Thread the tip of the strap through the holder ring and the inside of the buckle and
pull to tighten. Leave some slack in the camera strap so the tip may be threaded
through the buckle easily.
3. Push the holder ring toward the strap eyelet to secure the strap to the camera. Repeat
with the other end of the camera strap.
19
ATTACHING THE CAMERA STRAP
Always keep the camera strap around your neck in the event that you drop the camera.
The viewfinder has a built-in diopter that
can be adjusted between –2.5 to +1.0.
While looking through the viewfinder, turn
the diopter-adjustment dial until the
viewfinder focus frame is sharp.
The optional Eyepiece Corrector 1000
series diopters can be used if the
adjustable viewfinder diopter is not
sufficient.
DIOPTER ADJUSTMENT
