4 Front Panel
Kingston Technology Company KNExTX/WG User’s Guide - Rev. A00
Hardware Installation
Before you begin installing network cables, please take a few moments to
familiarize yourself with the EtheRx hubs. The front and rear panels of the
Fast Ethernet Workgroup hubs are illustrated below.

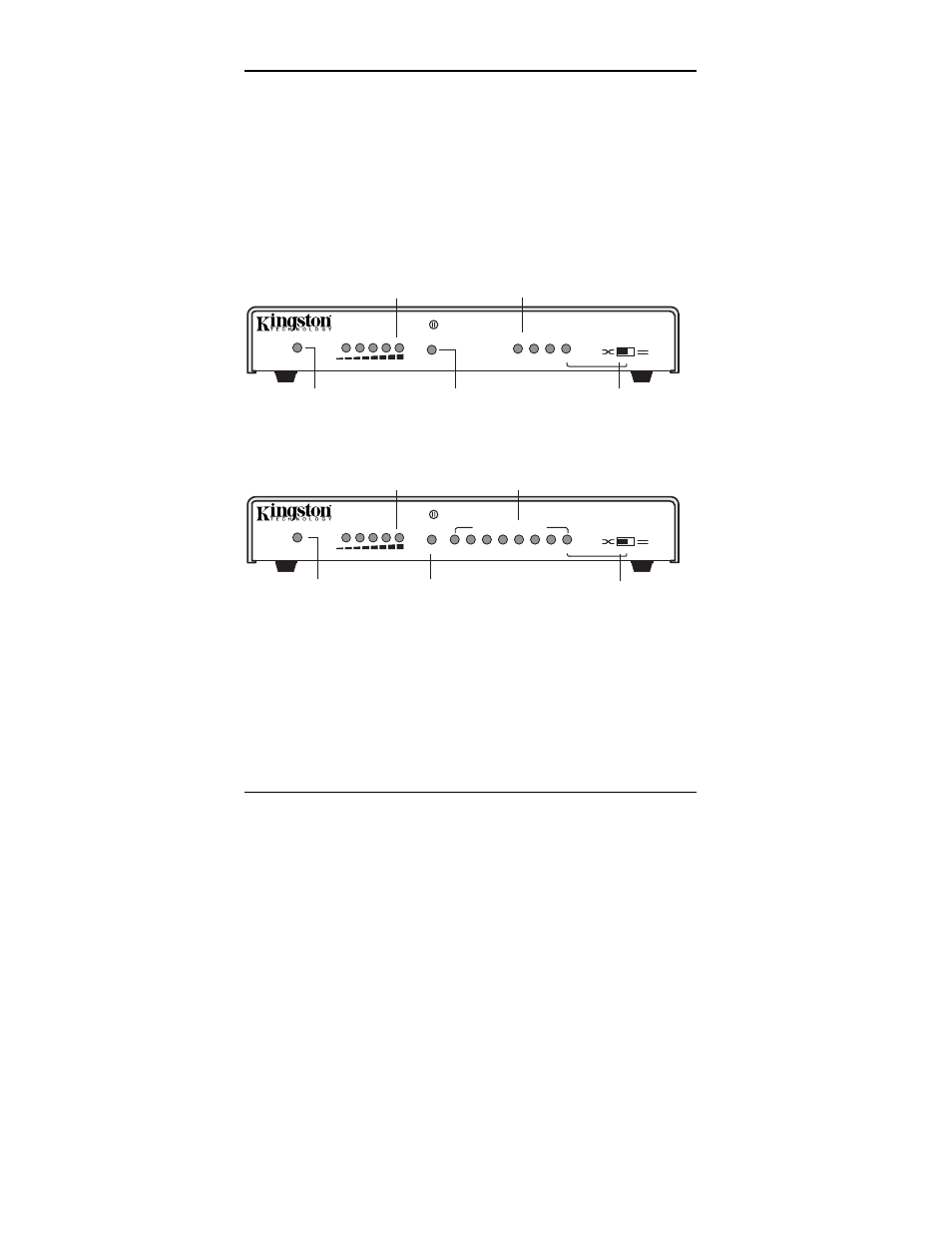

Front Panel
Fig. 1-2 KNE4TX/WG Front Panel
Fig. 1-3 KNE8TX/WG Front Panel
Power LED
The green LED indicates the power status. The LED will light up when the unit
is properly connected to the accompanying DC power supply. For further
details, please refer to Figure 1-8 on page 8.
LINK / ACTIVITY / PARTITION
EtheRx Workgroup
C O L L
I 0 0 B A S E - T X C l a s s Repeater
CASCADE
PWR
KNE4TX/WG
UTIL %
1 60 50 25 12
1 2 3 4
Utilization LEDs UTP Port LEDs
Power LED Collision LED Cascade Switch
LINK / ACTIVITY / PARTITION
1 2 3 4 5 6 7 8
EtheRx Workgroup
C O L L
I 0 0 B A S E - T X C l a s s Repeater
CASCADE
PWR
KNE8TX/WG
UTIL %
1 60 50 25 12
Utilization LEDs
Power LED Collision LED
UTP Port LEDs
Cascade Switch
