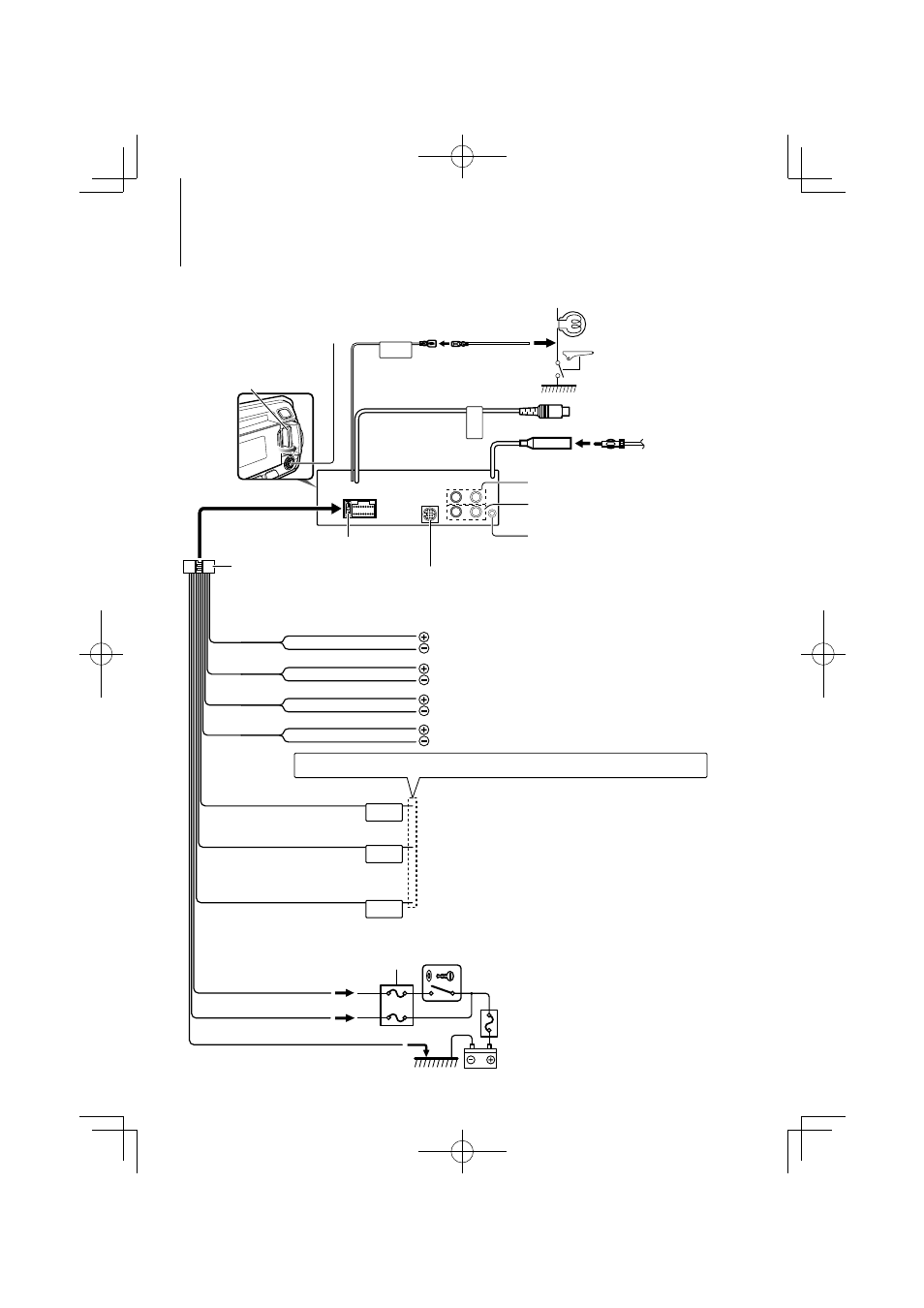

Connecting Wires to Terminals
P.CONT
ANT.
CONT
MUTE
R L
PRK SW
VIDEO OUT
Battery
Ground wire (Black) - (To car chassis)
FM/AM antenna input
Visual output (Yellow)
Fuse (10A)
Wiring harness
(Accessory1)
Ignition wire (Red)
Battery wire (Yellow)
ACC
Car fuse box
If no connections are made, do not let the wire come out from the tab.
To front left speaker
To front right speaker
To rear left speaker
To rear right speaker
White/Black
White
Gray/Black
Gray
Green/Black
Green
Purple/Black
Purple
Ignition key switch
Car fuse box
(Main fuse)
To Kenwood disc changer/ External optional accessory
⁄
To connect these leads, refer to the relevant instruction manuals.
For the sake of safety, be sure to
connect the parking sensor.
⁄
Connect to the vehicle’s
parking brake detection
switch harness.
TEL mute wire (Brown)
Connect to the terminal that is grounded when either the telephone rings
or during conversation.
⁄
To connect the Kenwood navigation system, consult your navigation
manual.
Power control/Motor antenna control wire
(Blue/White) Connect either to the power control terminal when using the optional
power amplifier, or to the antenna control terminal in the vehicle.
AV input
Use of the optional cable CA-C3AV
is recommended for connecting an
external player.
USB connector
Front output
Rear output/ Sub Woofer output/
AV output (audio)
Do not connect.
Parking sensor wire (Light Green)
Front side
Motor antenna control wire (Blue)
Depending on what antenna you are using, connect either to the control
terminal of the motor antenna, or to the power terminal for the booster
amplifier of the film or short pole-type antenna.
Parking sensor wire
Junction cable
(Light Green)
(Accessory3)
