English
BR VS 400 *USA
5

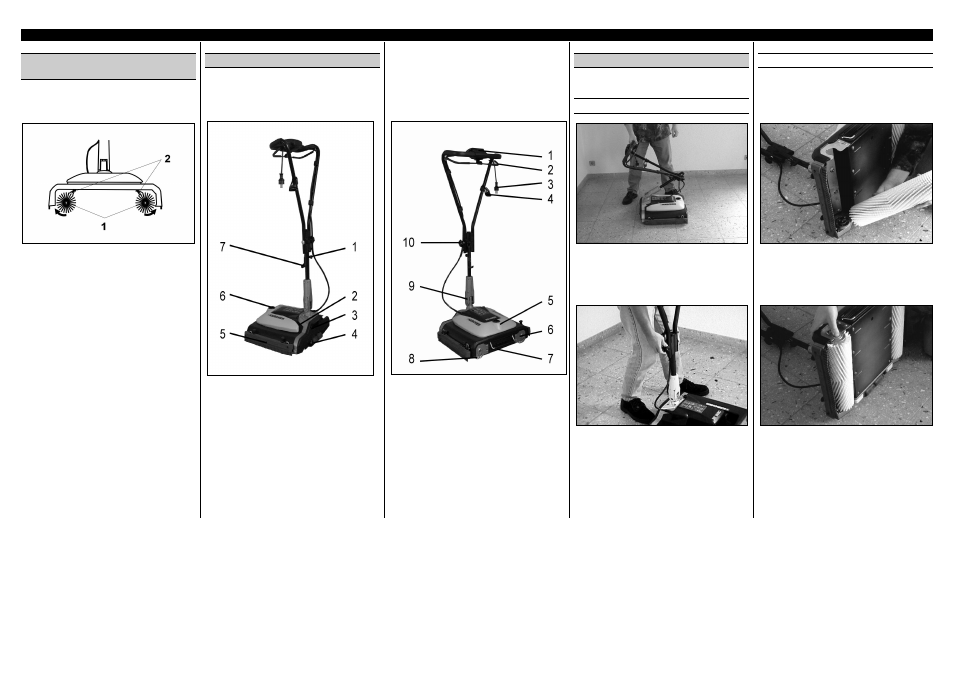

OPERATING DESCRIPTION OF
THE FLOOR CLEANER
*
The BR VS 400 has two rotary
brooms rotating contrary to each
other (1)
*
The cleaner can be moved
forwards and backwards when in
use
*
Work is carried out in a lateral
direction (large surface area
cleaned) or in lanes
*
Dirt is removed by the roller
brushes and cleaning agent (2)
*
Removed dirt must be cleaned up
by a dry/wet vacuum cleaner
*
Special rotary brushes (accessory)
are used for polishing the floor
covering
DEVICE ELEMENTS
1. Unlocking thrust clip
2. Water suck-off socket (accessory)
3. Recessed grip
4. Castors
5. Splash guard (vertically adjustable)
6. Tank fill opening
7. Sliding U-shaped protection
1. Clip for water pump
2. Clip for brush motor
3. Power cable
4. Strain relief
5. Tank
6. Releasing brushes
7. Support stirrup
8. Brushes
9. Hinge
10. Turning handle for hinged clip
FIRST INSTALLATION
Installing the pushing handle
Position the lower half of the pushing
handle vertically
Adjust the upper half of the pushing
handle and fix it with the knurled
screw
Note:
Do not jam cable when fitting
Install rotary brushes
–
Carefully lay the cleaner down
–
Always use two rotary brushes of
the same type
Place the rotary brush with gearing
onto the drive
–
Press the rotary brush down and
place it into the thrust bearing
–
Install the second rotary brush as
described
–
Check that the rotary brushes are
in the correct position
–
Position the cleaner vertically
