Lubrication

SM4530-1 – 30APR96

37

Section 3: Lubrication

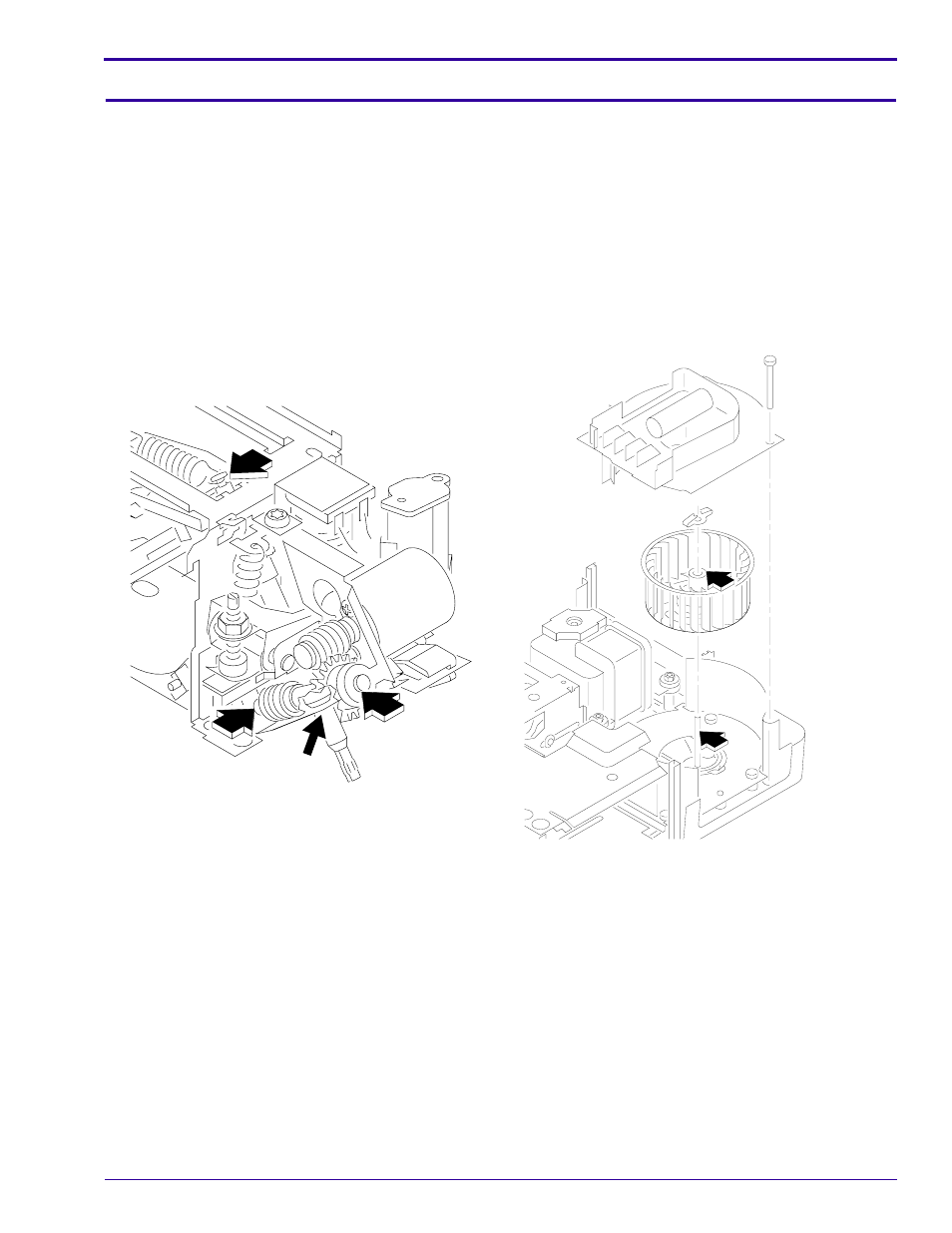

[1] Apply lubricant SUPER LUBE TL-4276 to the following parts and areas of the projector; see the illustrations:

• FAN

• INDEXER LEVER and TOP PLATE

• WORM PULLEY ASSEMBLY

• CAM STACK ASSEMBLY

• CYCLE LEVERS

• PIVOT SHAFT and LEVERS

• LENS MOUNT ASSEMBLY

A091_4037GA

A100_0020GA
