Assembly – Keys Fitness HT-ELITE User Manual
Page 7
Assembly
7

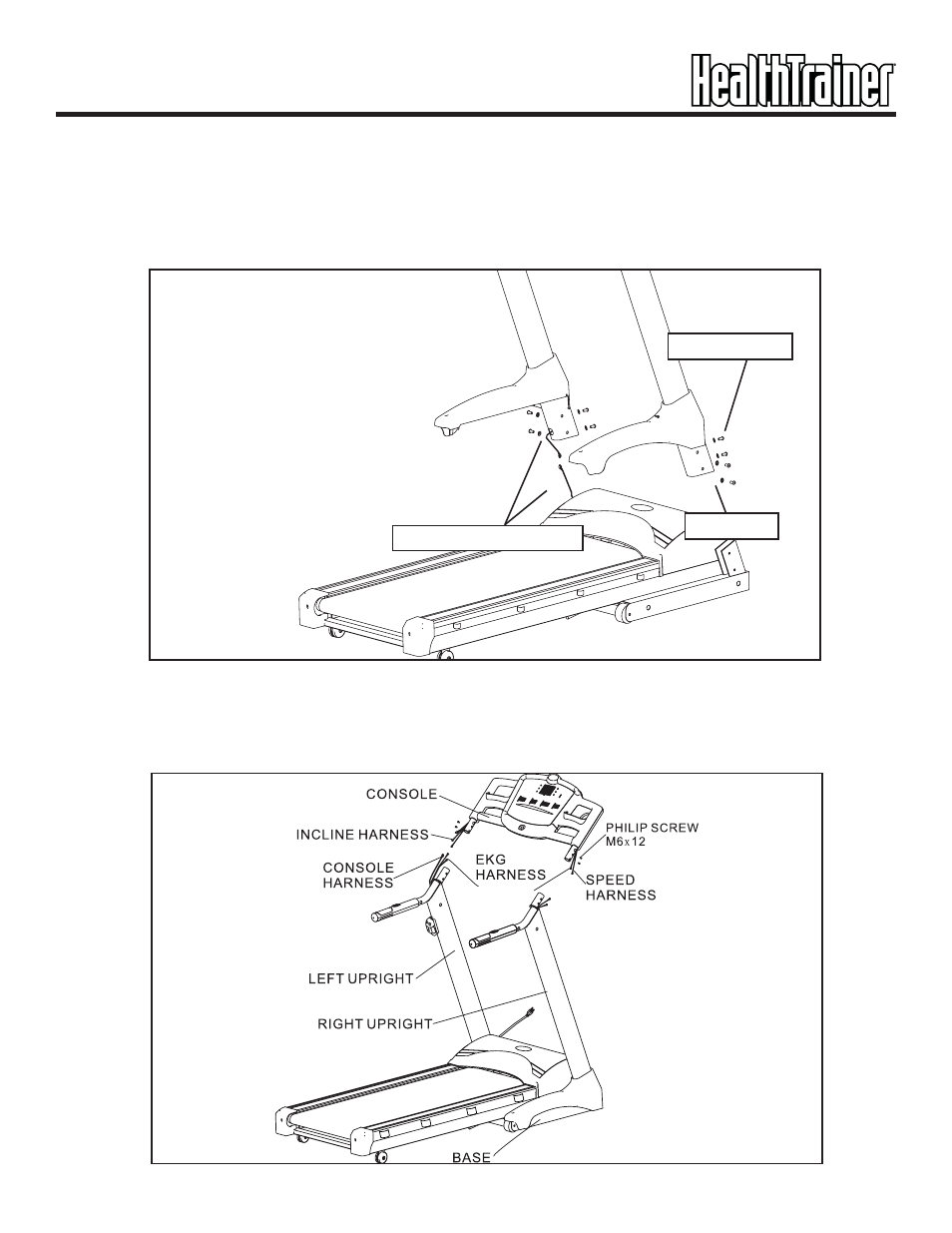

Figure 3
Figure 4
3. Attach the console harness together from inside the left upright and base assembly as
shown in Figure 3. Next, attach left upright and right upright to base using allen bolts M8x15
(Qty. 8) and washer 9x22x2 mm (Qty. 8). Do not tighten bolts.
4. Attach the console assembly by connecting the console harness, incline harness, EKG har-
ness, and speed harness as shown in Figure 4.
Next, attach the console assembly to the left and right uprights using phillips screw M6x12
(Qty. 4).
CONSOLE HARNESS
ALLEN BOLT
WASHER
