Instructions for the installer

12

4.2 Regulation for LPG

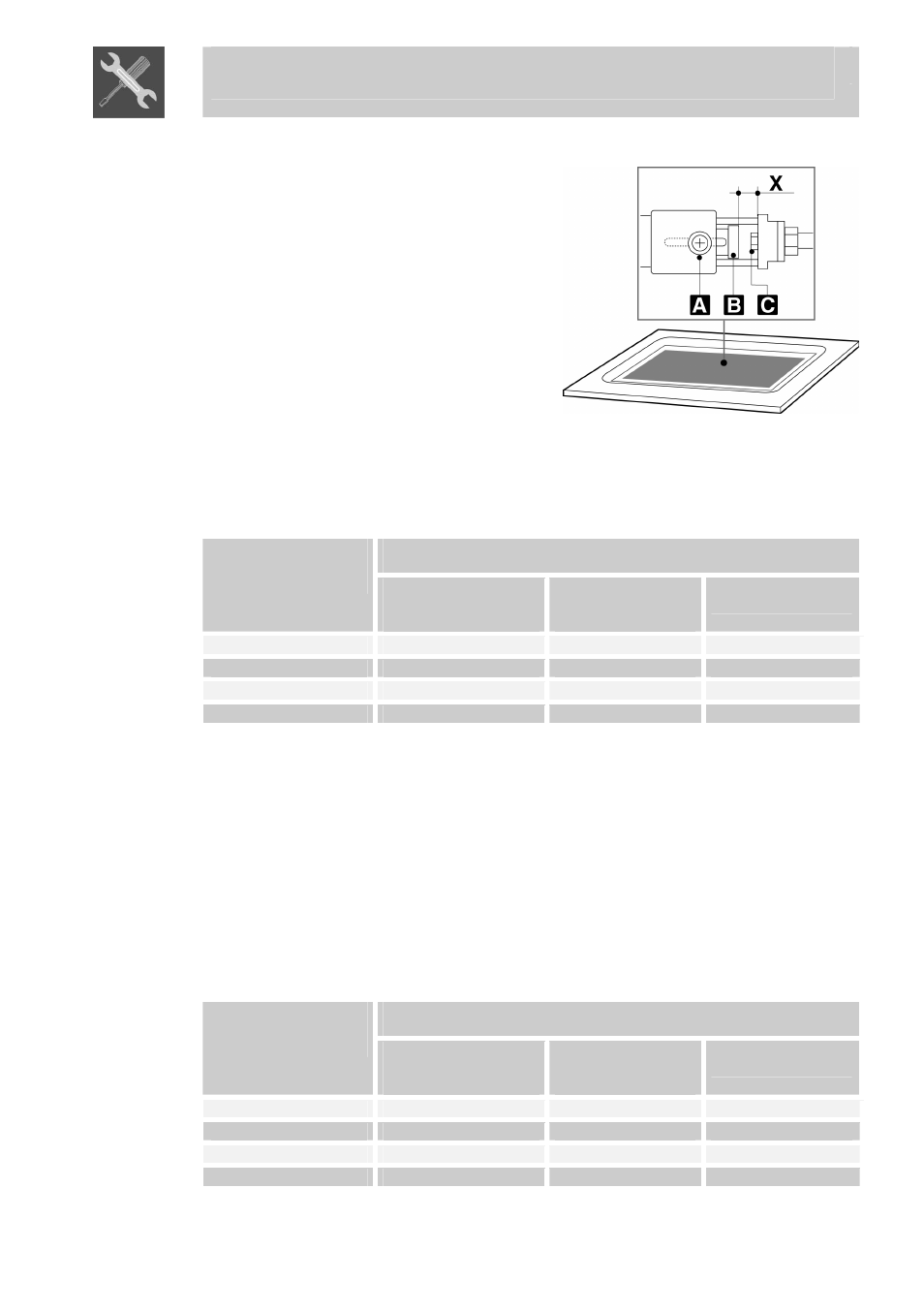

Loosen screw A and push air
regulator B to the bottom.
With a 7 mm wrench, remove nozzle
C and replace it with the proper one
(follow the instructions on the
reference tables for the type of gas
to be used).
The torque wrench setting of the
nozzle must not exceed 3 Nm.
Regulate the air by sliding regulator
B until reaching distance “X” shown
in the table in paragraph “4.4
Regulation of primary air”.
Lock regulator B by tightening

screw A.

LPG – 2.75 kPa



Burner

Nominal gas

consumption

(MJ/h)

Turn-down gas

consumption

(MJ/h)

Injector

(mm)

Auxiliary

5.3

1.5

0.62

Semi rapid

6.6

1.5

0.70

Rapid

9.0

3.2

0.82

Wok

15.0

5.4

1.05




4.3 Adjustment for natural gas

The hob has been adjusted for natural gas at a pressure of 1.0kPa.
To allow the unit to work back with this type of gas, after it has been
adjusted for LPG, perform the same operations described in paragraph
“4.2 Regulation for LPG”, but choose the nozzles and regulate the
primary air for natural gas, as shown in the following table and in
paragraph “4.4 Regulation of primary air”.

NG – 1.0 kPa



Burner

Nominal gas

consumption

(MJ/h)

Turn-down gas

consumption

(MJ/h)

Injector

(mm)

Auxiliary

5.3

1.4

1.00

Semi rapid

6.6

1.4

1.15

Rapid

9.0

2.4

1.35

Wok

15.0

4.3

1.75
