Spalding 214636E - Manual (Page 21)

03/04 P/N 214636E
21
2.
3. Install cover (1) over spring
return mechanism as shown.
29
33
26
26
27
31
Refer To
Instructions
Included With Rim
Hardware For Rim
Assembly.
48
11
47
32
34
1
39

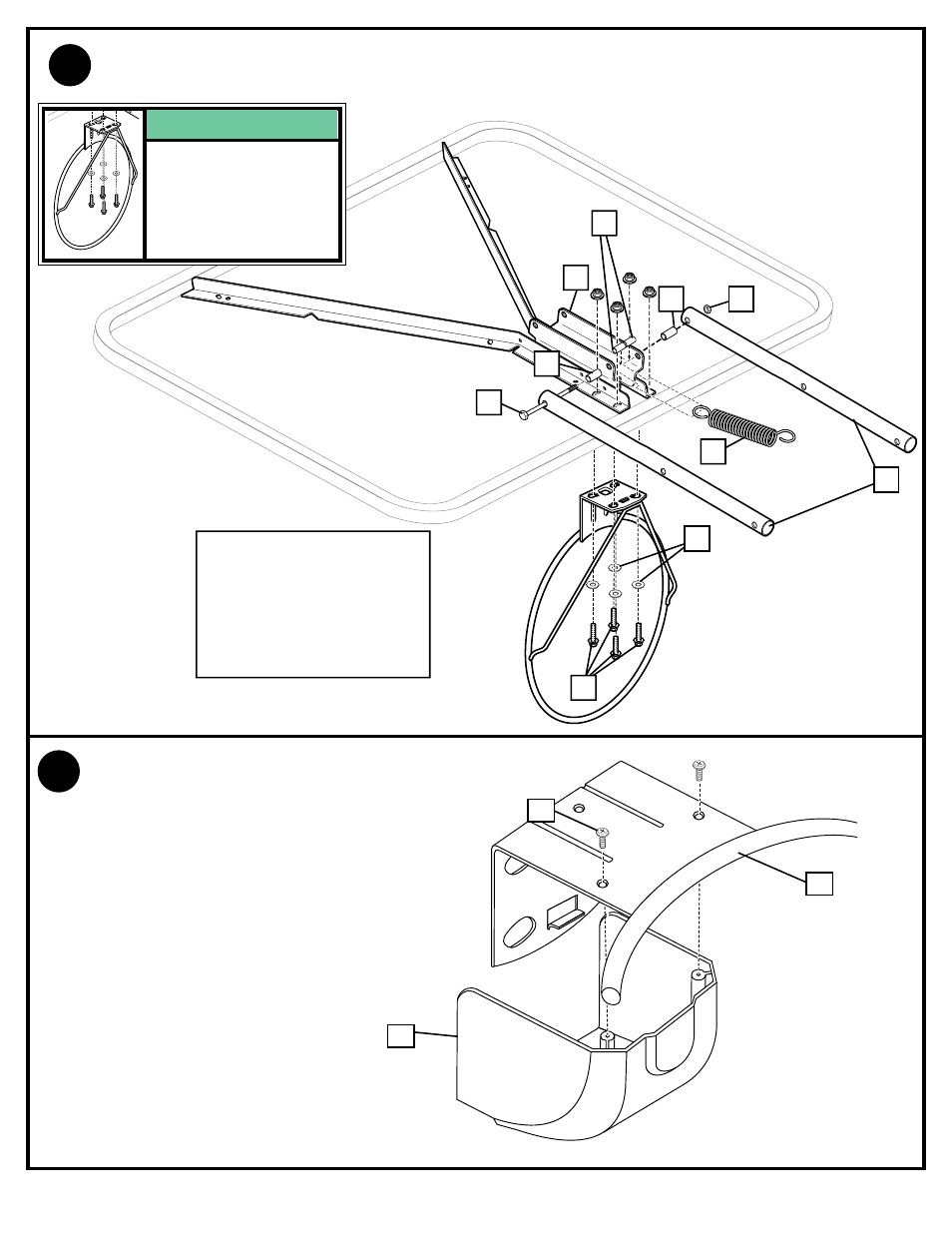

Attach lower elevator tubes (32) and counter balance spring (33) to backboard
support brackets (27) using spacers (26), bolt (29), and nut (31) as shown.
Rim mounting nuts and
bolts (48) supplied with rim
hardware.
DO NOT use washers (47)
here on spring return style
rims.
NOTE:
