14
P/N 214636E 03/04

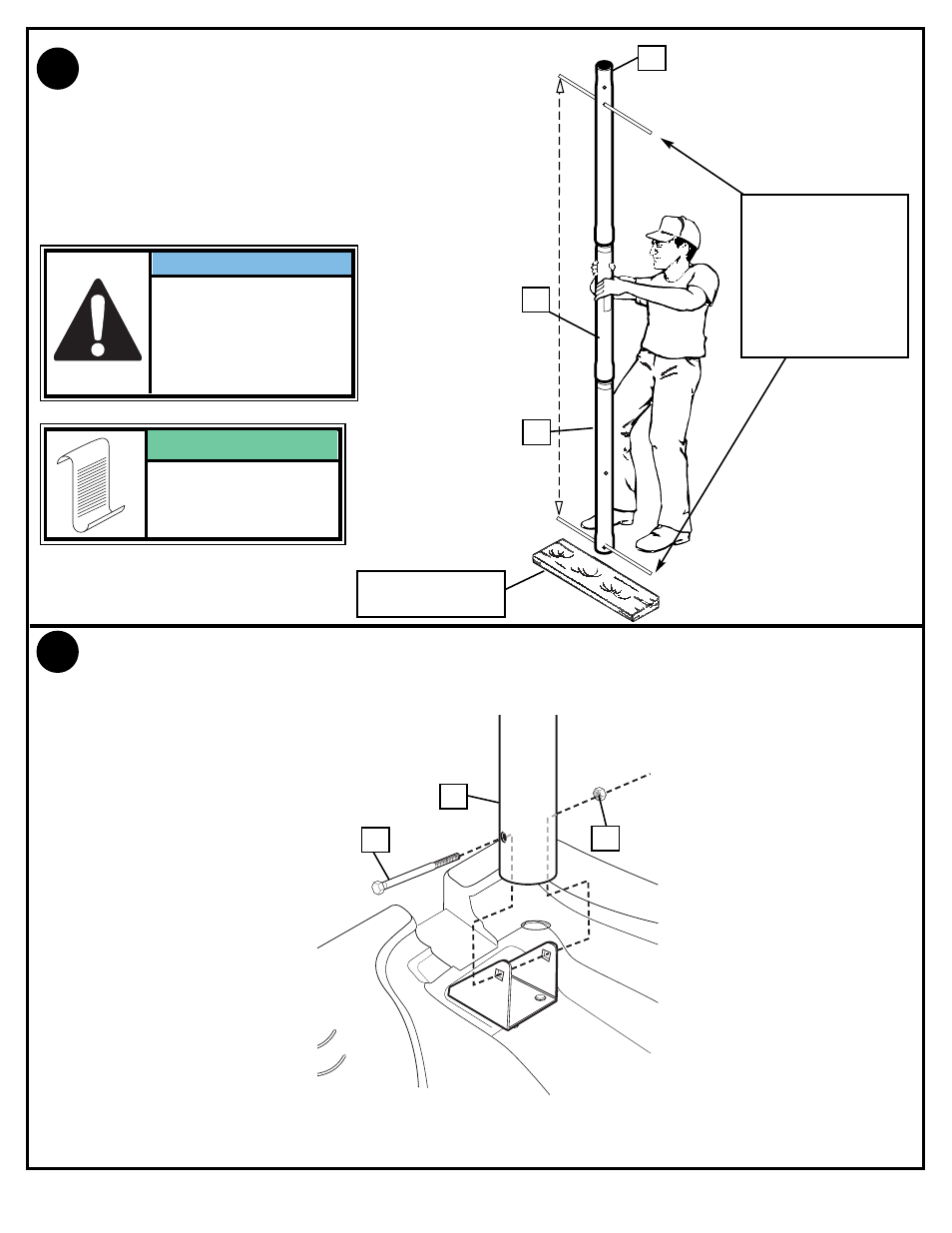

4. Bounce top (4) and middle (5) pole
assembly onto bottom pole section (6)
using a wood scrap as shown. Bounce
until the top and middle pole assembly no
longer moves toward the taped reference
mark on the bottom pole.
5.
Install bolt (12) through bracket and bottom pole section (6) and secure with nut
(10) as shown. Nut should be tightened until flush (even) with locknuts outer edge.
4
5
6
WOOD SCRAP
(NOT SUPPLIED)
12 10
6
RODS SHOWN ARE
FOR VISUAL
REPRESENTATION
OF ALIGNMENT
AND ARE NOT
SUPPLIED WITH
THE HARDWARE
IMPORTANT!:
Holes in top (4) and
bottom pole (6) sections
MUST align to correctly
position elevator system
toward playing surface.
POLE SECTIONS
SHOULD HAVE A
3-1/2" (9 CM) MINIMUM
OVERLAP.
NOTE:
