03/04

P/N 214636E

17

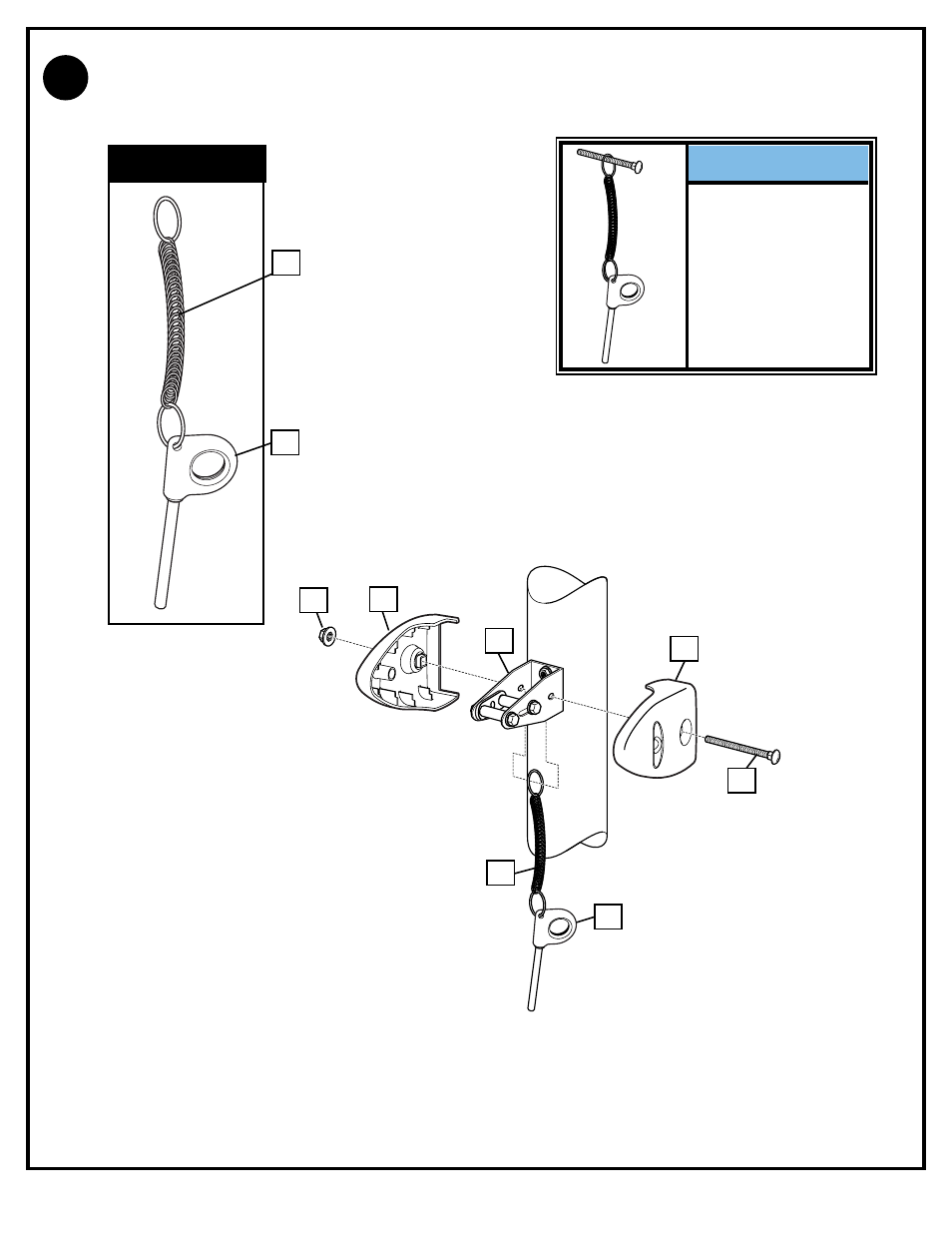

Assemble lanyard (25) to locking pin (24) as shown (FIG A). Attach covers (22) onto
pole mount bracket (15) with carriage bolt (23) and nut (14) as shown.

10

.

15

14

24

22

22

25

23

FIG. A

25

24

Loop end of pin
lanyard (25) over
carriage bolt (23)
as it passes
through the pole
mount bracket
(15) during this
assembly.

IMPORTANT!:
