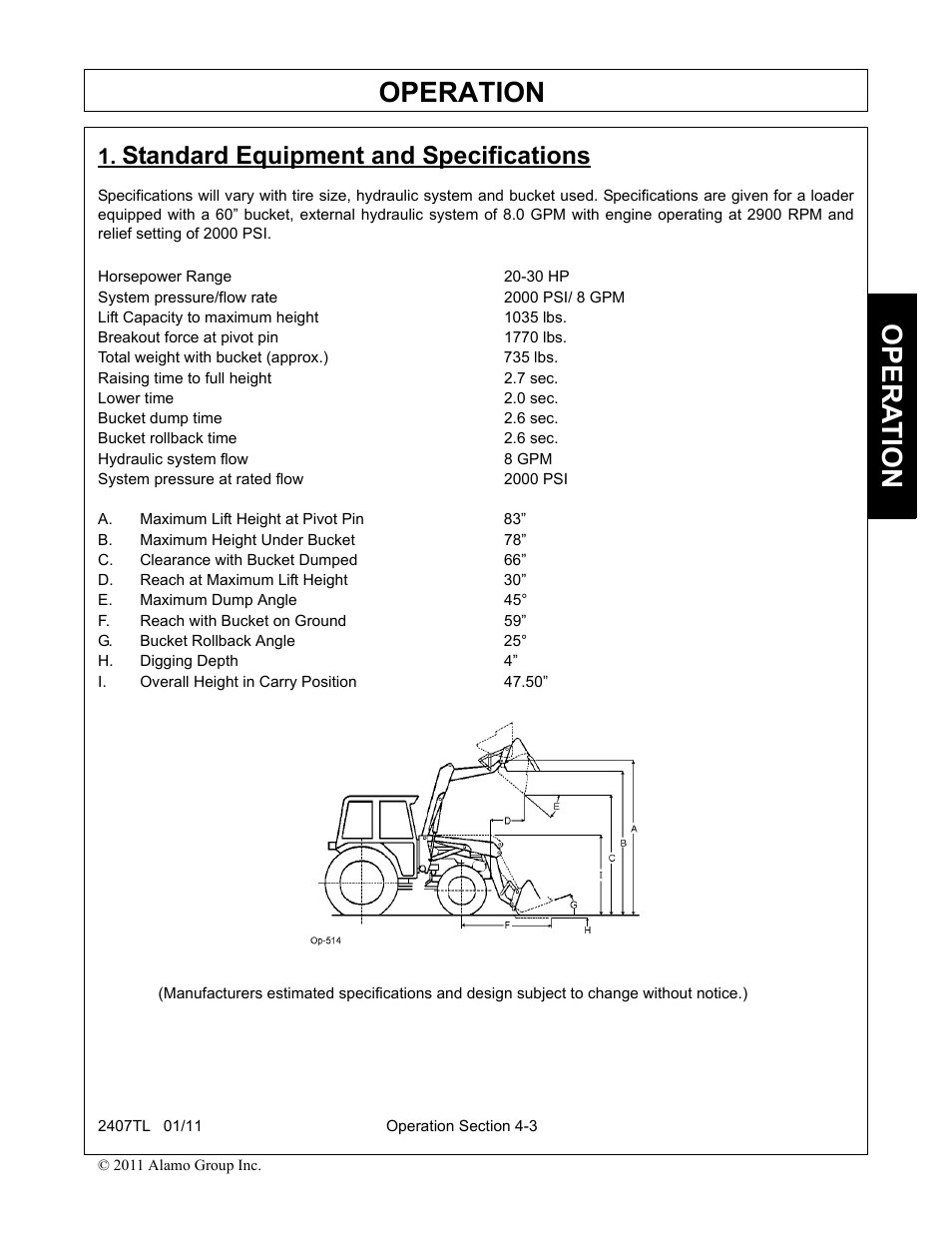

Standard equipment and specifications, A. maximum lift height at pivot pin 83, B. maximum height under bucket 78 – Servis-Rhino 2407TL User Manual
Page 43: C. clearance with bucket dumped 66, D. reach at maximum lift height 30, E. maximum dump angle 45, F. reach with bucket on ground 59, G. bucket rollback angle 25, H. digging depth 4, I. overall height in carry position 47.50
Standard equipment and specifications, A. maximum lift height at pivot pin 83, B. maximum height under bucket 78 | C. clearance with bucket dumped 66, D. reach at maximum lift height 30, E. maximum dump angle 45, F. reach with bucket on ground 59, G. bucket rollback angle 25, H. digging depth 4, I. overall height in carry position 47.50 | Servis-Rhino 2407TL User Manual | Page 43 / 100
