ENG

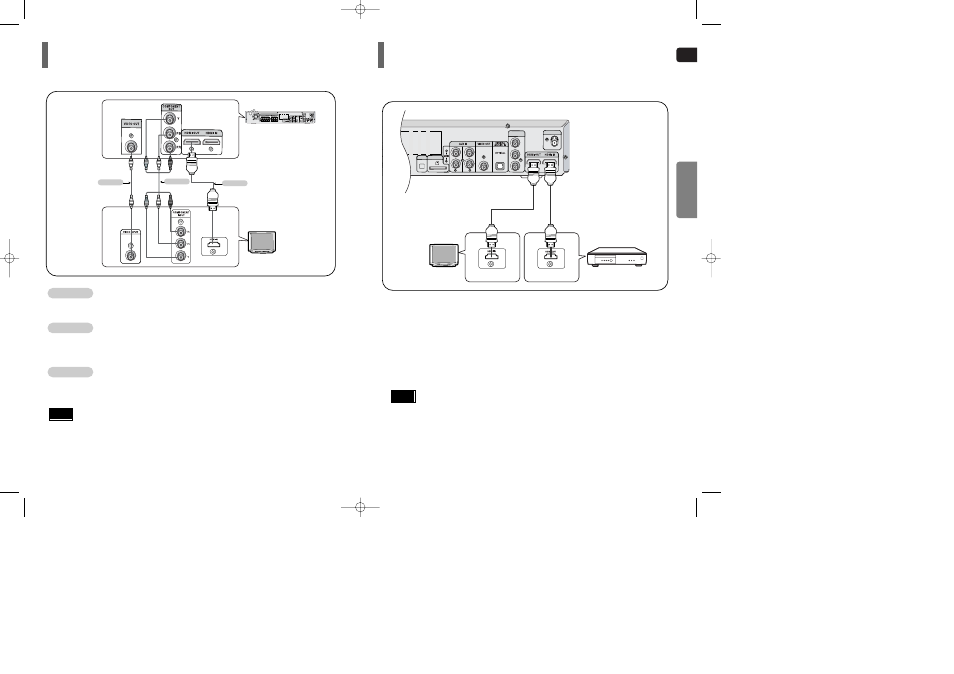

Choose one of the three methods for connecting to a TV.
Connecting the Video Out to TV
- Connect the supplied video cable from the VIDEO OUT jack on the back panel of the system
to the VIDEO IN jack on your TV.
Composite Video ....... (Good Quality) METHOD 1
- If your television is equipped with Component Video inputs, connect a component video cable
(not supplied) from the Pr, Pb and Y jacks on the back panel of the system to the corresponding
jacks on your TV.
Component ....... (Better Quality) METHOD 2
- Connect the HDMI out to the HDMI input on your TV.
HDMI ....... (Best Quality) METHOD 3
• This product operates in Progressive scan mode(480p Only ) for Component Output.
• If the TV only supports a resolution of 576i(480i), the screen may be divided into 2 screens, or dis-
play nothing.
Note
TV
METHOD 2
(supplied)
METHOD 1 METHOD 3
15 16
CONNECTIONS
HDMI (High-Definition Multimedia Interface) is a next generation TV-type digital interface specification
that enables transmitting digital video and audio over a single cable. In addition, it enables you to
enjoy multi-channel digital audio.
Connecting the HDMI IN/OUT
FM 75 §
RADIO ANT
XM WIRELESS
Y
PB
PR
COMPONENT OUT
Connect the HDMI OUT Port of this unit and the HDMI IN Port of your TV. 2
Press AUX on the remote control to select ‘HDMI IN.
• Each time the button is pressed, the selection changes as follows:
DIGITAL IN➝ AUX 1 ➝ AUX 2 ➝ HDMI IN.
• You can also use the FUNCTION button on the main unit.
The mode switches as follows: DVD/CD ➝ DIGITAL IN ➝ AUX 1 ➝ AUX 2 ➝ HDMI IN ➝ USB ➝ FM.
Connect the HDMI IN Port of this unit and the HDMI OUT Port of a set-top box
or the DVD player. 1
3
Set-top box or
DVD player
TV
• When this unit is turned off, no HDMI video or audio signal is output from this unit.
• In the HDMI IN Function, the video resolution switch button (SD/HD) does not work.
• When the output from an external device, which is connected to this device, is DVI, no audio will be out-
put. In this case, you can listen to the digital audio by connecting the Optical OUT of the source device
and the Optical IN of this device, even if the source device and this device is connected through DVI
interface.
Note
