CONNECTIONS

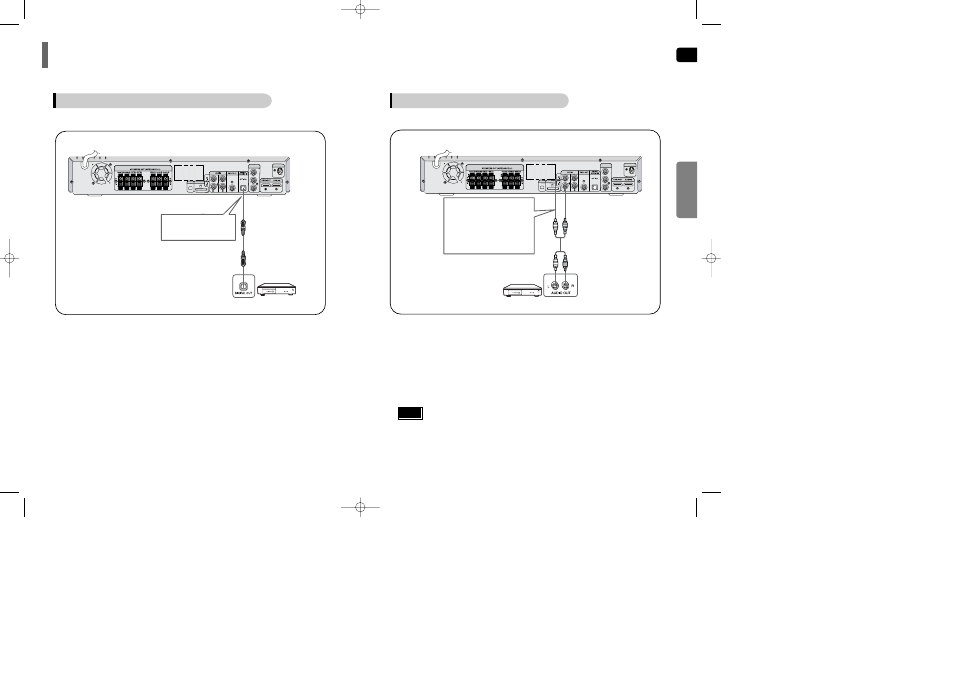

Connecting External Components
FM 75 §
RADIO ANT
XM WIRELESS
Y
PB
PR
COMPONENT OUT
Press AUX on the remote control to select ‘DIGITAL IN.
• Each time the button is pressed, the selection changes as follows: AUX1 ➝ AUX2 ➝ HDMI IN ➝ DIGITAL IN.
2
Connect the Digital Input (OPTICAL) to the Digital Output on the external digital
component. 1
Example: Digital signal components such as a Set-top Box or CD Recorder.
Connecting an External Digital Component
Optical Cable
(not supplied)
FM 75 §
RADIO ANT
XM WIRELESS
Y
PB
PR
COMPONENT OUT
Audio Cable
(not supplied)
If the external analog compo-
nent has only one Audio Out,
connect either left or right.
• You can connect the Video Output jack on your VCR to the TV, and connect the Audio
Output jacks on the VCR to this product.
Example: Analog signal components such as a VCR.
Connecting an External Analog Component
Note
Press AUX on the remote control to select ‘AUX1/AUX2’ input.
• You can also use the FUNCTION button on the main unit.
The mode switches as follows: DVD/CD ➝ DIGITAL IN ➝ AUX 1 ➝ AUX 2 ➝ HDMI IN ➝ USB ➝ FM ➝ XM
Connect AUX (Audio) In on the Home Theater to Audio Out on the external analog compo-
nent.
•
Be sure to match connector colors.
1
2
