Page 12

description

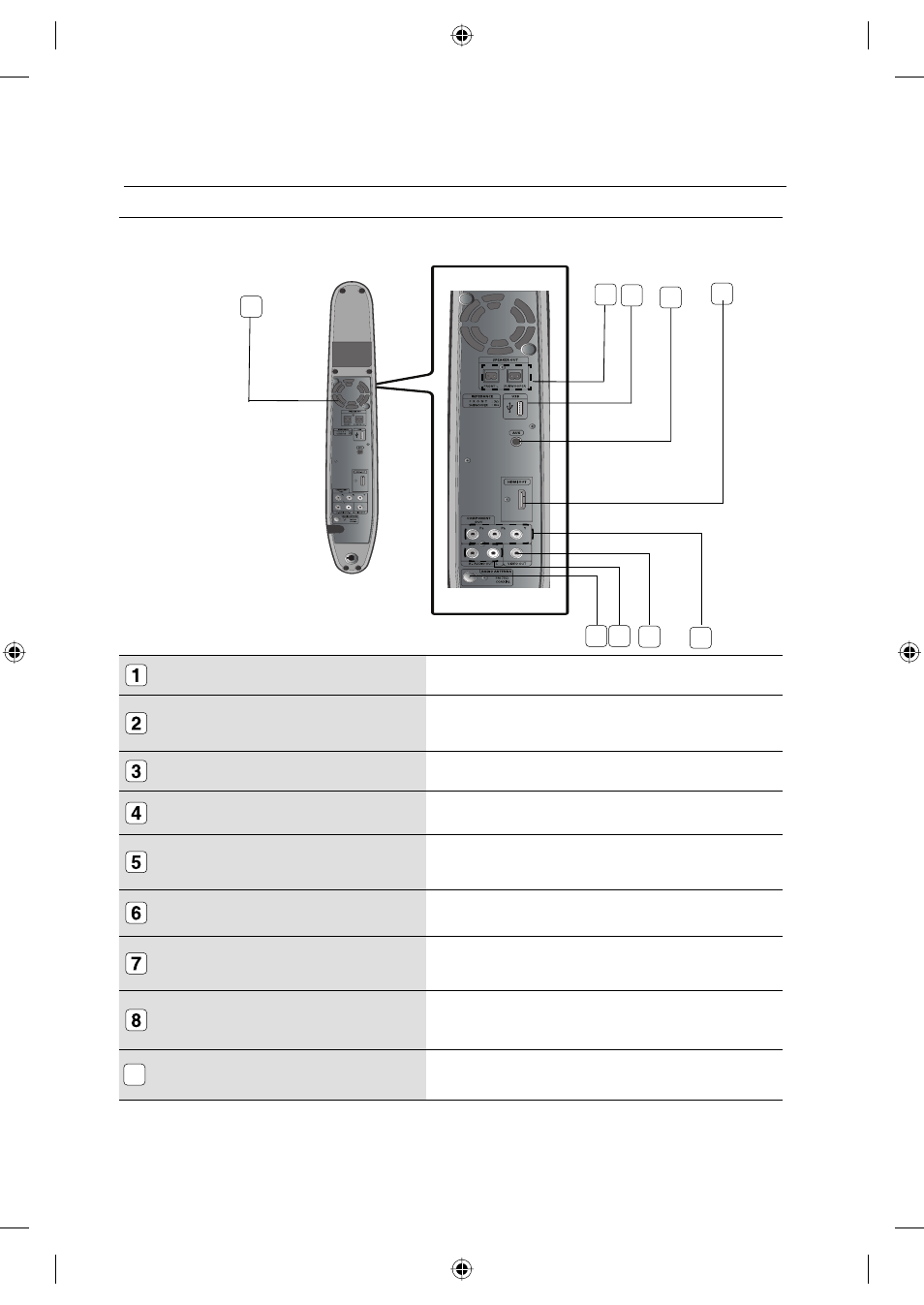

REAR PANEL

SPEAKER OUTPUT CONNECTORS

Connect Left, subwoofer speakers.

USB Host

Connect digital still camera, MP3 Player, memory stick, card reader, or
other removable storage devisces.

AUX IN JACK

Connect to the analog output of an external device (such as a MP3 Player)

HDMI OUT JACK

Use the HDMI cable, connect this HDMI output terminal to the

HDMI input terminal on your TV for the best quality picture.

FM 75Ω

Connect the FM antenna.

AUDIO L, R OUT JACKS

You can connect your system to the television using the audio cable if the
appropriate input is available on the television.

VIDEO OUTPUT JACK

Connect the TV's Video Input Jack (Video IN) to the Video Out Jack.

COMPONENT VIDEO OUTPUT JACKS

Connect a TV with Component video inputs to these jacks.

COOLING FAN

The fan always revolves when the power is on. Ensure a minimum of 10
Cm of clear space on all sides of the fan when installing the product.

6 7

1 2
