Appendix A: In Case of Difficulty

49

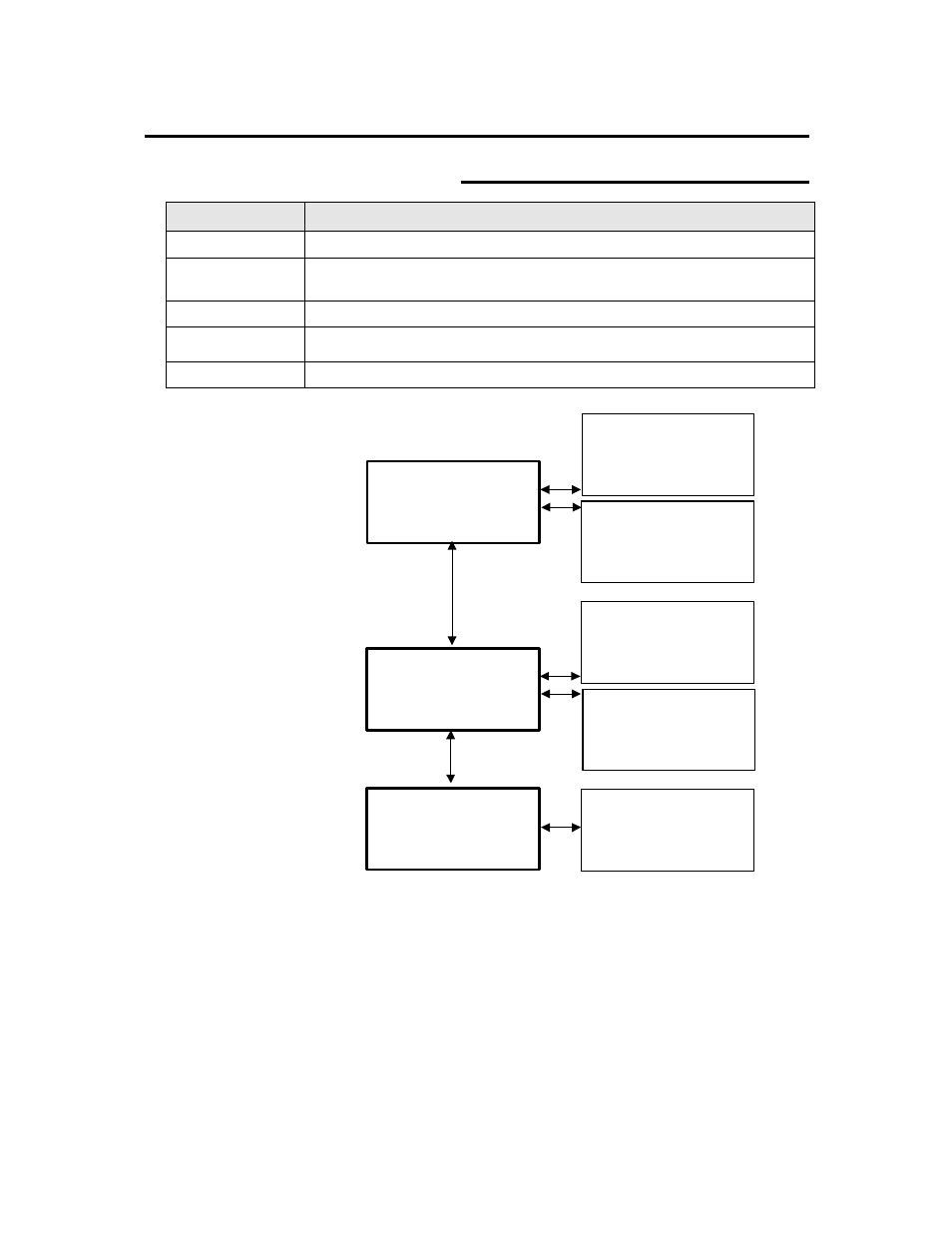

Trouble isolation procedures (con’t)

Adjustment auto mode (con’t)

Option

Description

BI-DIR DENSITY

Optical density correction in the bi-directional print mode.

FIRING TIMING

Placement error correction between two HEAD, in the main scanning
direction.

PRINT POSITION

Correction of the print position.

ALL

All adjustment.

COLOR SELECT

This command selects the ink bottle being adjusted.

S

BI-DIR DENSITY Î

FIRING TIMING Î

S

PRESS EXECUTE KEY

EXECUTE Î

S

PRESS EXECUTE KEY

EXECUTE Î

S

PRINT POSITION Î

ALL Î

S

COLOR SELECTION Î

S

PRESS EXECUTE KEY

EXECUTE Î

S

PRESS EXECUTE KEY

EXECUTE Î

S

K C M LC LM Y

1 1 1 1 1 1

ENTER

О
