02/04 P/N 211789
5
Item Qty Part No Description
1 1 900467 Top Pole Section
2 1 904811 Middle Pole Section (with Label)
3 1 903407 Bottom Pole Section
4 2 900223 Wheel Bracket
5 2 206940 Axle
6 2 226403 Wheel 6”
7 4 206938 Pushnut
8 1 200117 Base
9 1 203223 Carriage Bolt, 5/16-18 x 1
10 1 202662 Hex Bolt, 5/16-18 x 4.5
11 8 203218 Washer 5/16
12 1 200188 Rod 3/8 x 5.25
13 1 202822 EyeBolt 3/8 -16 x 3.75
14 2 906410 Tank Strut
15 1 200516 Bolt Cover
16 1 200123 Upper Pivot Bracket
17 1 206948 Lower Pivot Bracket
18 2 900122 Hinge Tubes
19 1 200512 Hex Bolt, 3/8 -16 x 3.5
20 4 203232 Flat Washer 3/8 -3/4
21 1 206252 Hex Bolt, 3/8 -16 x 1
22 13 203100 Flange Nut 5/16 -18
23 1 203330 Hex Bolt, 3/8 -16 x 4.5
24 2 203527 Spacer, Plastic, .75" O.D., 1.53" Long
25 2 203528 Spacer, Plastic, 1.25" O.D., 1.53" Long
26 4 203103 Carriage Bolt, 5/16-18 x 2
27 1 203540 Height Indicator Window
28 1 201129 Spacer, Metal, .50" O.D., 1.8" Long
29 1 803531 Strut Assembly
30 1 803553 Handle Assembly
31 1 203593 Shoulder Bolt
32 2 203688 Spacer, Plastic, .75" O.D., 2.25" Long
33 2 900867 Triangle Plates
Item Qty Part No Description
34 1 207103 Pole Cap
35 4 908119 Elevator Tube
36 1 808115 Pole Bracket
37 9 206340 Nut, Nylock, 1/2 -13
38 2 203053 Bolt, Carriage, 5/16-18 x 4
39 4 202862 Spacer, Plastic, .50 O.D., 1.19" Long
40 8 204847 Bolt 1/2 -13 x 9.5
41 1 201139 Bolt 1/2 -13 x 4.5
42 4 201682 Spacer, Plastic, .50 O.D., 1.88" Long
43 2 203798 Bolt 5/16-18 x 1.5
44 2 202273 Spacer, Metal, .50 O.D., 5-7/8" Long
45 1 203099 Nut, Nylock, 5/16-18
46 2 200874 Spacer, Metal, .50 O.D., 1.53" Long
47 3 206360 Bolt 3/8 -16 x 2.625
48 7 203063 Nut 3/8 -16 Nylock
49 2 900964 Board Brackets
50 1 200118 Front Cover
51 4 265601 Front Cover Carriage Bolts
52 12 201219 Net Clips
53 1 204290 Net
54 1 206219 Base Plug
55 1 203124 Tie Down Stake
56 1 201568 Anchor Strap
57 1 203532 Label Height Adjustment
58 2 240027 Nut, Nylock 1/4-20
59 1 203535 Strip
60 1 203536 Height Label
61 1 203537 Hook
62 1 240019 Bolt 1/4-20 x .75
63 2 202274 Spacer, Metal, .50 O.D., 3-1/2" Long
64 1 206956 Plastic Disc
65 2 226401 Wheel 4”
66 2 203309 Washer, Flat, 3/8-1
* You may have extra parts with this model.

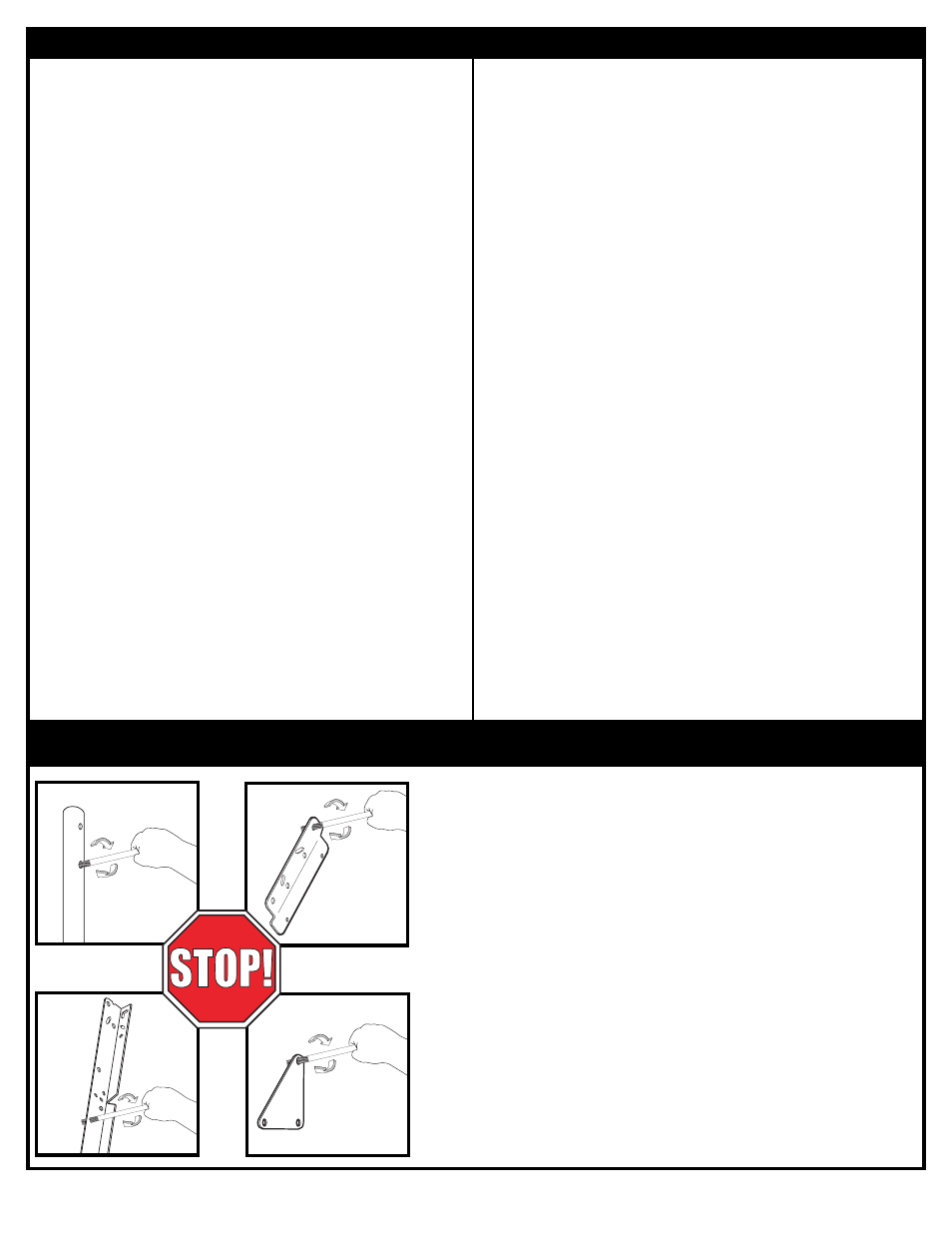

BEFORE YOU START!
To ensure optimal playability of backboard system, a
close tolerance fit between the elevator components
and hardware is required. Test-fit large bolts into large
holes of elevator tubes, backboard brackets, and
triangle plates. Carefully rock them in a circular motion
to ream out any excess paint from holes if necessary.
PARTS LIST (SEE HARDWARE IDENTIFIER)
