02/04 P/N 211789
15

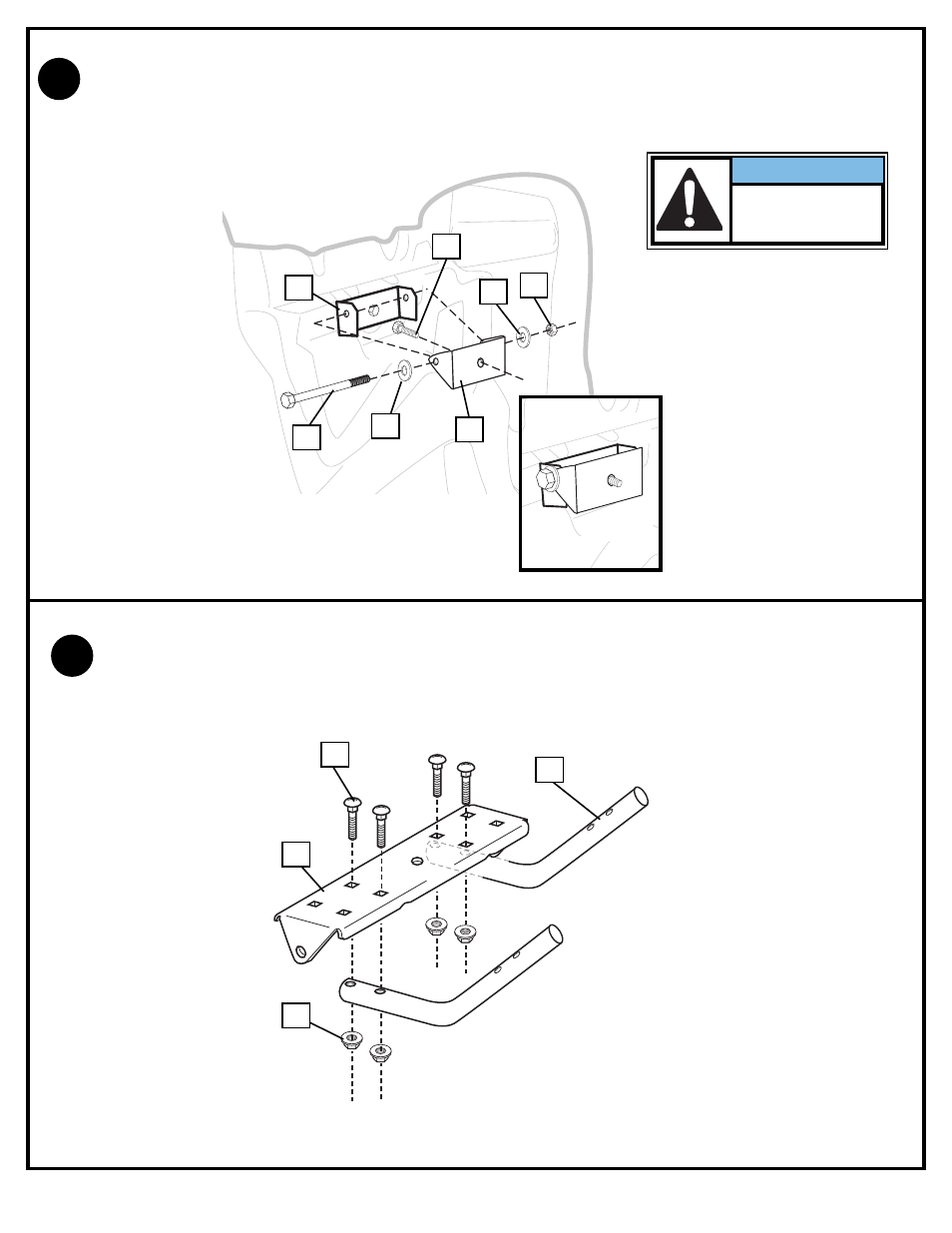

Insert bolt (21) through lower pivot bracket (17) as shown; bolt (21) will be
secured during step 10. Carefully place base assembly on its side. Install lower
pivot bracket (17) with bolt (23), washers (20), and lock nut (48) as shown.
Secure both hinge tubes (18) to second wheel bracket (4) with carriage bolts (26)
and flange nuts (22).
16
23
20 17
21
20
48
26
4
22
18
7.
8.
IMPORTANT!:
DO NOT OVER
TIGHTEN
