Chapter 1 - Specifications
Crane Rating: 6500 ft-lb (.899 TM)
Standard Boom Length: 4’ (1.219 m) from CL of Crane
Boom Extension: 1st Position: Manual 18” (45.7 cm)
2nd Position: Manual 18” (45.7 cm)
Maximum Horizontal Reach: 7’ (2.13 m) from CL of Crane
Maximum Vertical Lift (from crane base): 10’9” (3.28 m)
Boom Elevation: 0 to +21 to +56 degrees
Winch Specification
Rope Diameter:
3/16” (.476 cm)
Line Pull Speed: 20 ft/min (6.10 m)
Max. Single Part Line: 1100 lbs (495 kg)
Max. Double Part Line: 2000 lbs (905 kg)
Manual Rotation: 340˚ Manual
Power Rotation: 314˚ Power
Lifting Capacities: 1580 lbs @ 4’ (715 kg @ 1.219 m)
1190 lbs @ 5’6” (540 kg @ 1.676 m)
930 lbs @ 7’ (420 kg @ 2.13 m)
Stowed Height: 60” (152.4 cm)
Crane Only: 30” (76.2 cm) - Short Mast
Mounting Space Required: 12” x 12” (30.5 cm x 30.5 cm
Approximate Crane Weight: 275 lbs (124.7 kg)
230 lbs (104.3 kg) - Short Mast
300 lbs (136.1 kg) - Power Rotation
Weight of load handling devices are
part of the load lifted and must be
deducted from the capacity.
Maximum 1 - part line capacity is
1100lbs (495kg). For greater loads,
use 2 - part line.

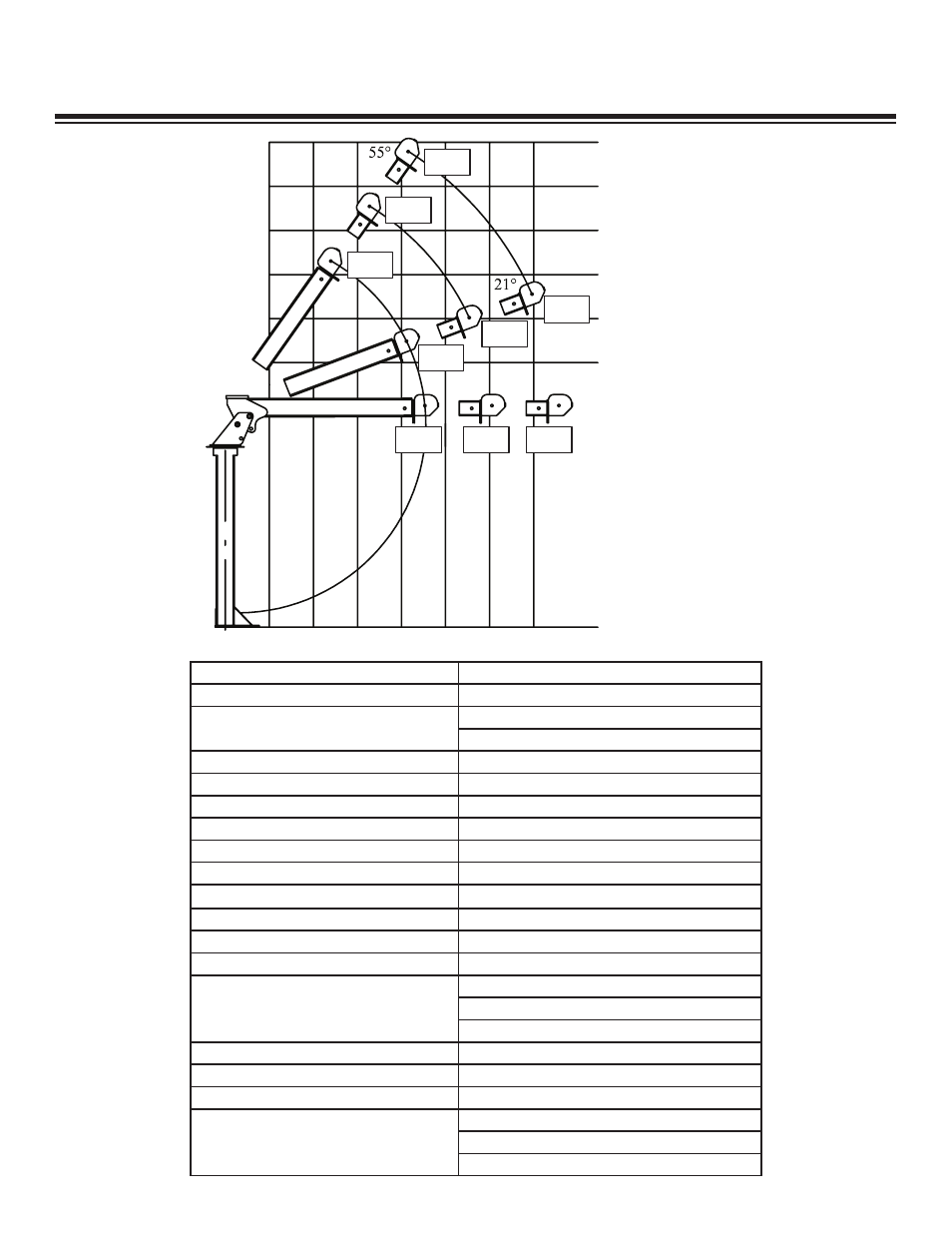

Reach in Feet/Meters
Capacity in Pounds/Kilograms
1565 lbs
710 kg
1985 lbs
900 kg
2000 lbs
905 kg
1190 lbs
540 kg
1580 lbs
715 kg
930 lbs
420 kg
1430 lbs
650 kg
1075 lbs
490 kg
860 lbs
390 kg
6’
1.83 M
0’
0’
7’
2.13 M
8’
2.44 M
9’
2.74 M
10’
3.05 M
11’
3.35 M
1’
.305 M
2’
.610 M
3’
.914 M
4’
1.22 M
5’
1.52 M
6’
1.83 M
7’
2.13 M
