Scientific Atlanta Digital Home Communications Terminal - Manual (Page 24)

24
Notes:
• If you connect to
S-VIDEO OUT, you
must connect the LEFT
and RIGHT AUDIO
OUT on the DHCT to
the LEFT and RIGHT
AUDIO IN connectors
on your TV, VCR, or
stereo. (This diagram
shows a stereo TV
connection.)
• See page 9 to locate
other connection
diagrams appropriate
for your system.

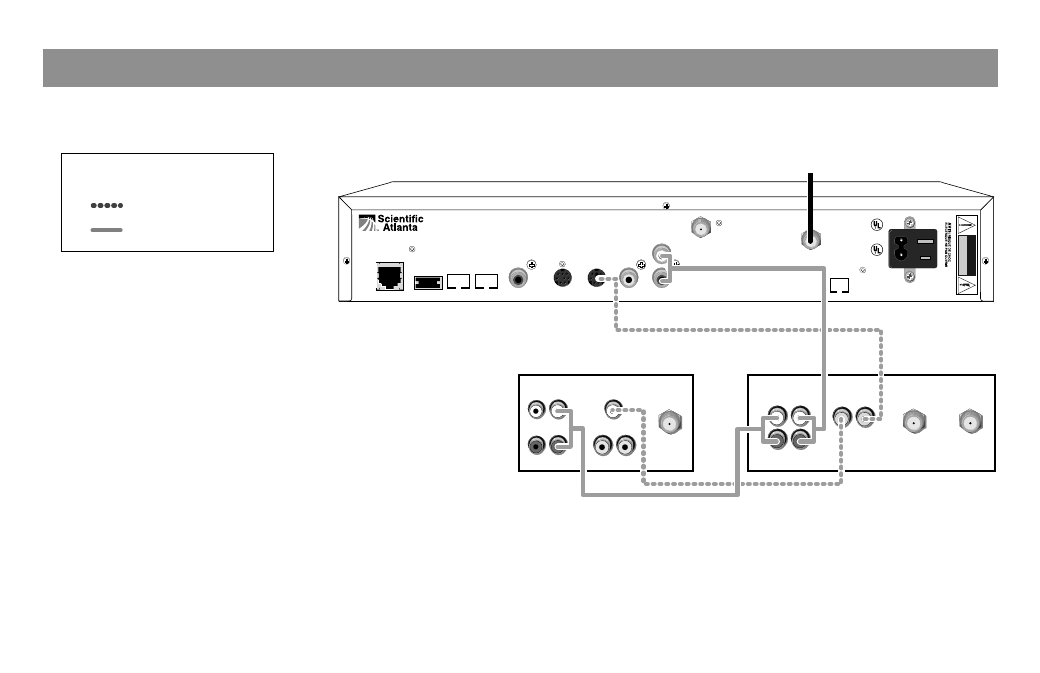

Connecting a Stereo TV and Stereo VCR with S-Video Input
Connection Diagrams,
continued
RISK OF ELECTRICAL SHOCK
DO NOT OPEN CAUTION
ETHERNET OUT DATA
S-VIDEO VIDEO
CABLE
CABLE IN
BYPASS
L
R
AUDIO
OUT OUT
OUT
OUT
DIGITAL
AUDIO
USB 1394 1394
THIS DEVICE IS INTENDED TO BE ATTACHED
TO A RECEIVER THAT IS NOT USED TO RECEIVE
OVER-THE-AIR BROADCAST SIGNALS.
CONNECTION OF THIS DEVICE IN ANY OTHER
FASHION MAY CAUSE HARMFUL INTERFERENCE
TO RADIO COMMUNICATIONS AND IS IN
VIOLATION OF THE FCC RULES, PART 15.
120 VAC
60Hz 40W
120 VAC
60Hz 5A
CABLE COMMUNICATIONS
LISTED
14141
C
CATV CONVERTER
MADE IN MEXICO
Cable Input Explorer DHCT
RIGHT
IN OUT
LEFT
AUDIO
IN OUT
OUT TO TV IN FROM ANT. IN OUT
LEFT
RIGHT
S-VIDEO
IN OUT
CABLE/
ANTENNA
VIDEO
IN OUT
Back of TV
Back
of VCR
T8612
S-VIDEO
IN
Required Cables
S-Video Cables
Stereo/Audio Cables
