5 Align the mounting tabs with the screw holes.
Tighten the screws; do not overtighten.

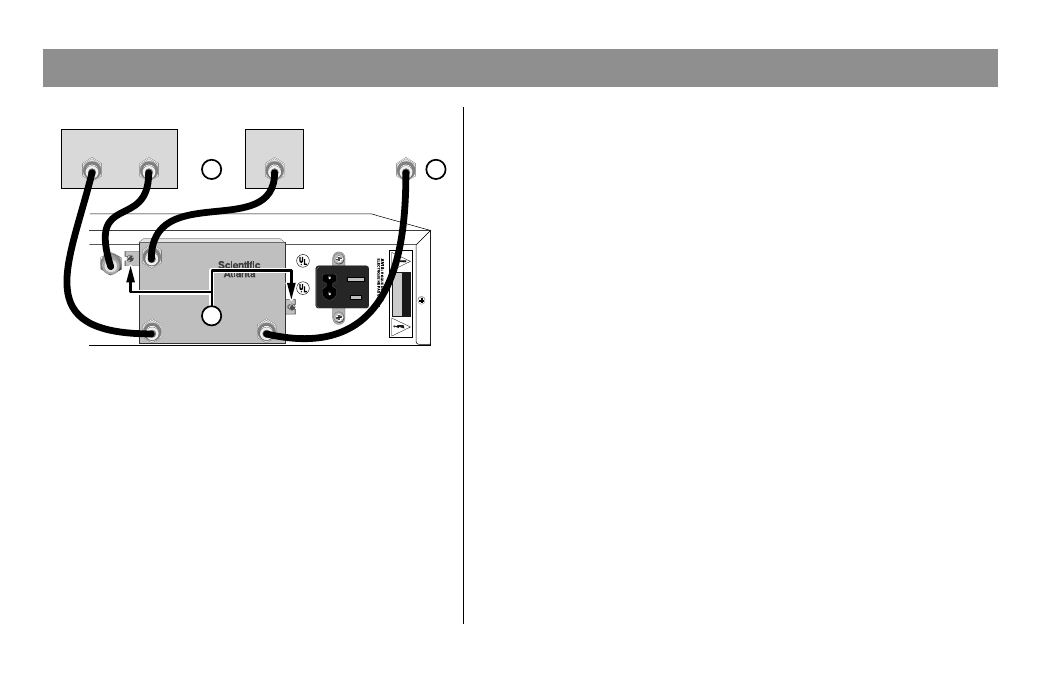

6 Connect to your TV and VCR.
7 Connect your cable input from the wall.
8 Connect any additional devices, if applicable.
9 Do you have other devices to connect?
• If yes, see page 9 to locate other connec-
tion diagrams appropriate for your system.
• If no, plug in the power cord to an AC
power outlet.
Optional Devices,
continued
Activating and Deactivating RF Bypass
If your remote control includes a Bypass key, follow these
instructions to use the Bypass feature.
To activate the Bypass feature, press the Bypass
key. The Bypass indicator illuminates on the DHCT.
Notes:
• You can only view analog channels; digital channels are
not available while the Bypass feature is active.
• Use the Bypass key to toggle the feature on and off.
To deactivate the Bypass feature:
1. Press the Bypass key on the remote control. The Bypass
indicator no longer illuminates on the Explorer DHCT.
2. Tune your TV using one of the following methods:
• If the TV/VCR switch on your VCR is in the VCR
position, you must tune your TV to the VCR output
channel (channel 3 or 4). You can view a tape, or you
can view the channel to which the Explorer DHCT is
tuned.
• If the TV/VCR switch on your VCR is in the TV
position, you must tune your TV to the Explorer
DHCT output channel (channel 3 or 4). You can only
view programs from the Explorer DHCT, regardless
of what your VCR is playing.
