1 Smart card slot Allows smart card use
2 Message indicator Indicates a message is waiting
when blinking or illuminated
3 Display Displays the channel numbers and
time of day
4 Bypass indicator Indicates optional bypass feature
is on when illuminated

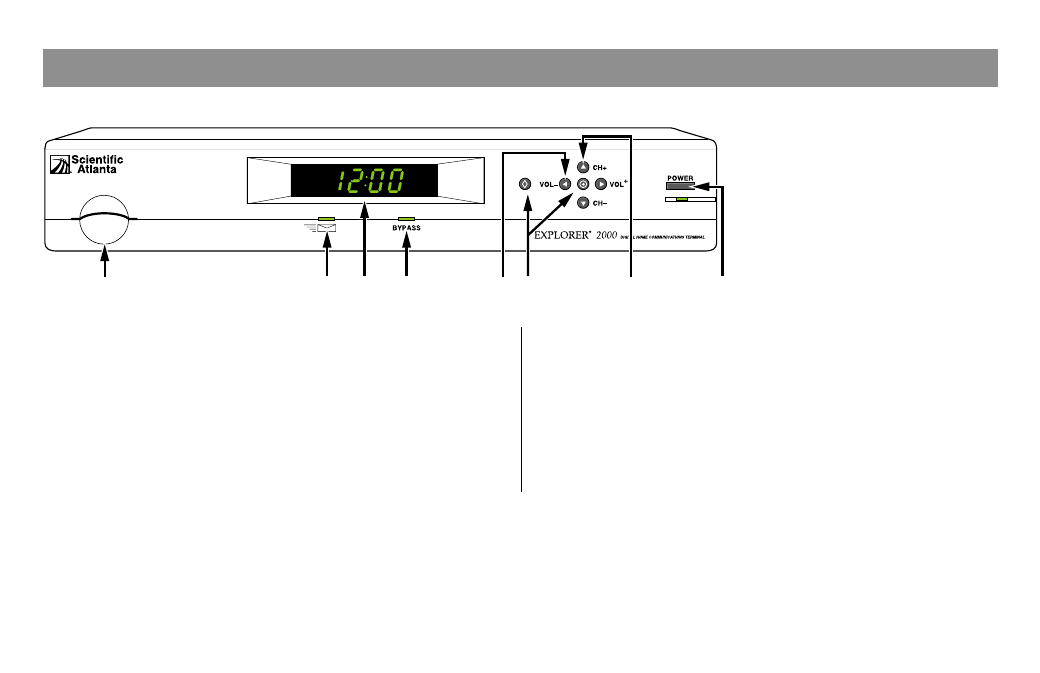

Explorer DHCT Front Panel
5 VOL- and VOL+ Increases or decreases volume
6 (For test) (For technician use only)
7 CH- or CH+ Scrolls up or down through the
channels
8 Power Activates the functions of the
DHCT
T8473
6 7 5 4 2 3 1 8
