5.6
PCI Clock Timing
The following specifies the PCI clock requirements for LAN9420/LAN9420i:
Note 5.14 This slew rate must be met across the minimum peak-to-peak portion of the clock
.

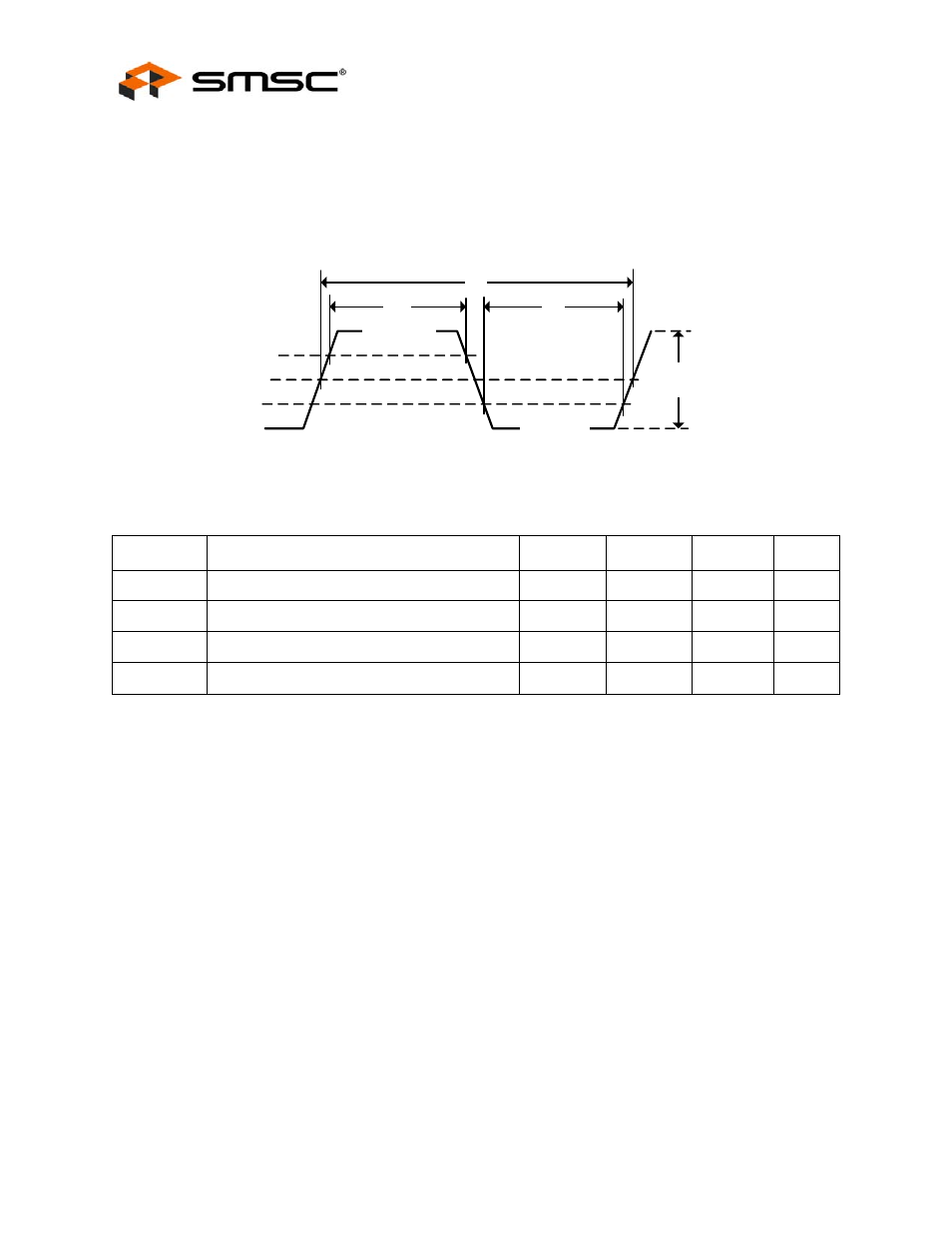

Figure 5.2 PCI Clock Timing
Table 5.9 PCI Clock Timing Values
SYMBOL
DESCRIPTION
MIN
TYP
MAX
UNITS
t
cyc
PCICLK cycle time
30
∞
ns
t
high
PCICLK high time
11
ns
t
low
PCICLK low time
11
ns
-
PCICLK slew rate (
)
1
4
V/ns
t
high
t
cyc
t
low
PCICLK
0.6*VDD33IO
0.2*VDD33IO
0.5*VDD33IO
0.4*VDD33IO
0.3*VDD33IO
0.4*VDD33IO p-to-p
(minimum)
