A SPEAKERS jacks (page 14)
B
(USB) port (page 28)
C AUDIO (AUDIO IN L/R) jacks (page 17)
D ANTENNA (FM COAXIAL 75
Ω) jack
(page 19)
E TV (DIGITAL IN OPTICAL) jack (page
15)
F LAN (100) terminal (page 20)
G HDMI (IN 2) jack (page 17)
H HDMI (IN 1) jack (page 17)
I HDMI (OUT) jack (page 15)
J VIDEO OUT jack (page 15)

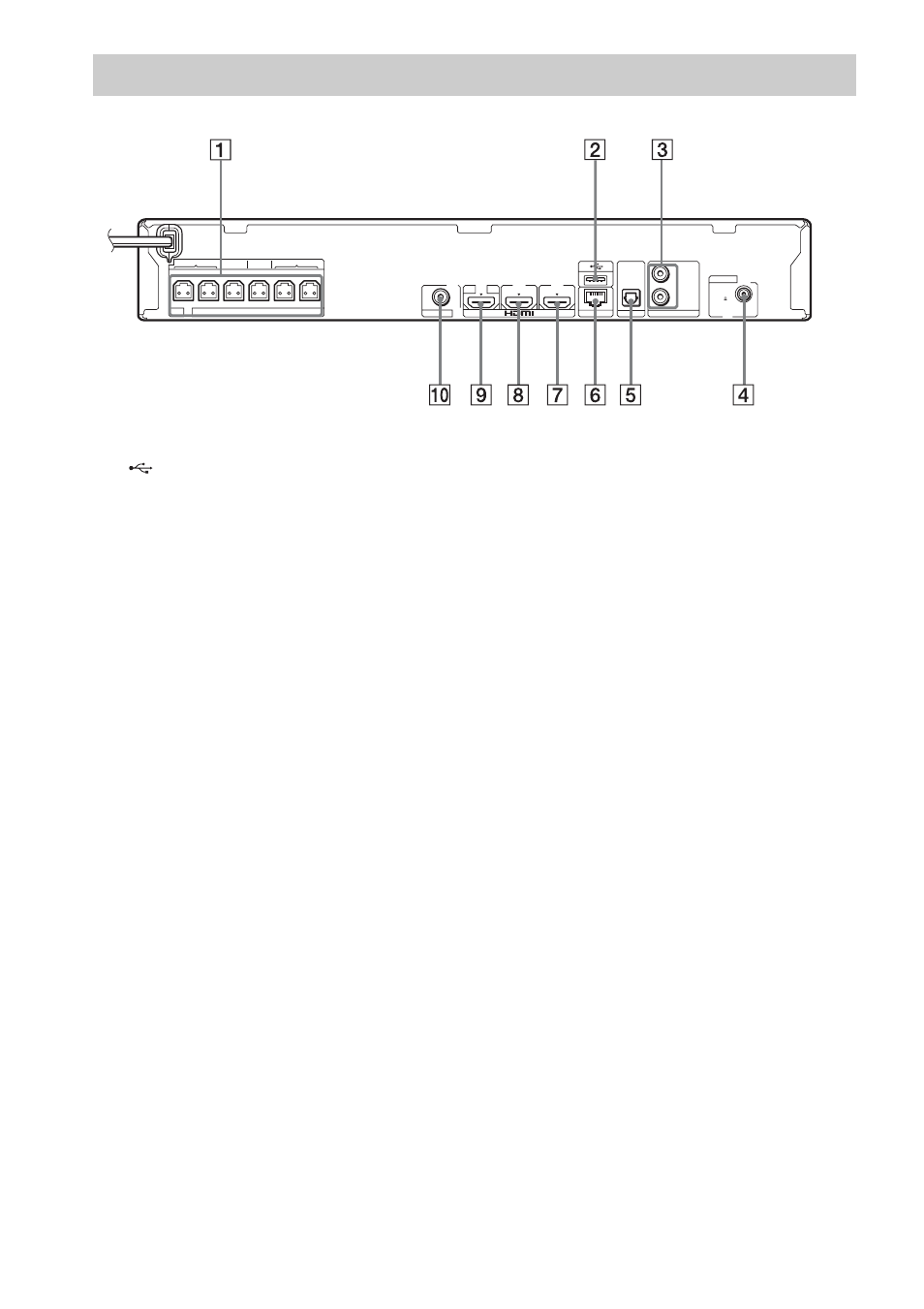

Rear panel
VIDEO OUT
OPTICAL
DIGITAL IN
TV LAN (100)
AUDIO IN
R
L
AUDIO
FM
COAXIAL
75
ANTENNA
FRONT R FRONT L SUBWOOFER CENTER SUR R
ONLY FOR SS-TSB105
SPEAKERS
ONLY FOR
SS-WSB103
ONLY FOR
SS-CTB102
SUR L
ONLY FOR SS-TSB105
ARC OUT IN 1 IN 2
