Page 8
(203) 776-2813 • FAX (203) 776-8294
APPLIED ENGINEERING PRODUCTS
www.aepconnectors.com • [email protected]
8
Crimp tool
Bulkhead Receptacles
TA-0105
TA-0436
DESCRIPTION AEP P/N
Crimp tool with .105" and .128" hex dies
TA-0105
Torque Wrench
Capping Press
DESCRIPTION AEP P/N
Torque wrench with 7/32" jaws for SMC
connector backnuts; 95 inch-ounces torque
TA-0436
Torque wrench with 7/32" jaws for SMC
coupling nuts; 3 inch-pounds torque
TA-0398
CP-1

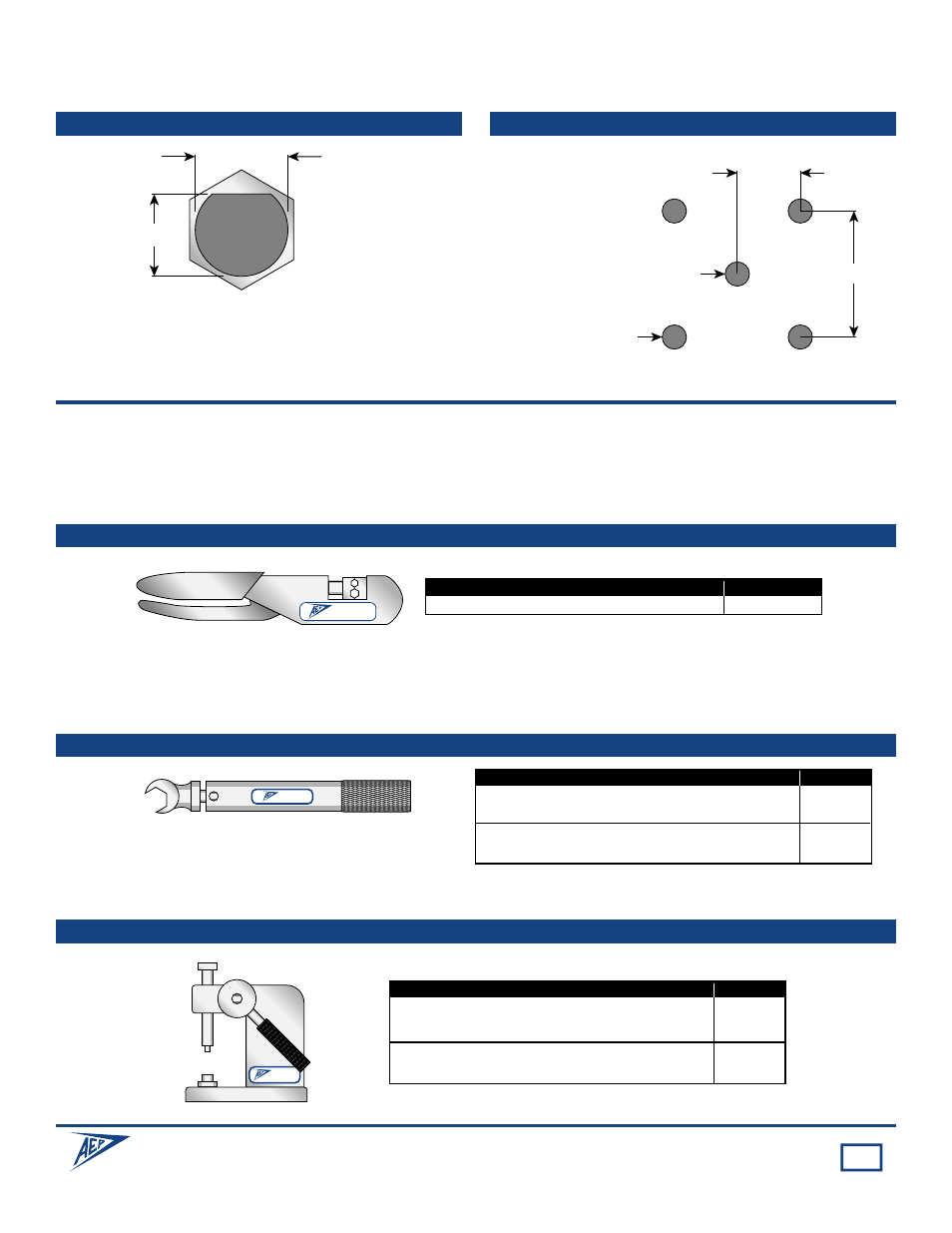

Mounting Dimensions
Assembly Tooling
Flat of mounting surface is aligned
with body hex as shown.
.195 dia.
.180
.200 typ.
.100 typ.
.047 dia.
.067 dia. min. (typ.)
P.C. Board Receptacles
DESCRIPTION AEP P/N
Capping tool (arbor press) with base for
SMC right angle plugs
CP-7
Capping tool (arbor press) with base for
SMC right angle jacks
CP-8
