Tube Installation
9
C
A
B
C
D
A
B
E
D

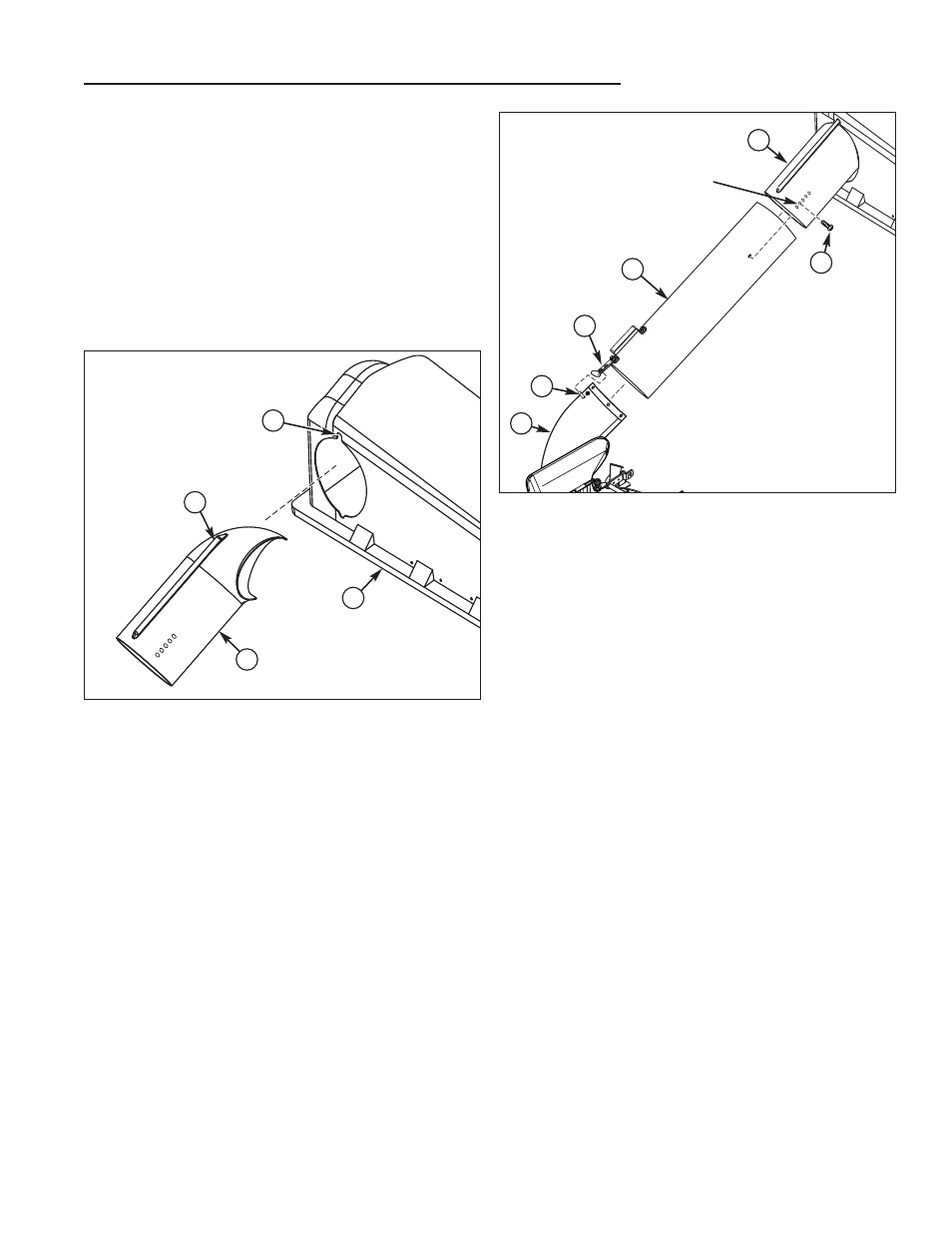

Figure 11. Install Upper Tube to Cover
A. Upper Tube
B. Cover
C. Ridge, Upper Tube
D. Ridge Cutout
Figure 12. Install Middle Tube
A. Lower Chute
B. Strap, Rubber
C. Pin
D. Middle Tube
E. Upper Tube
F. Screw, 1/4 x 3/4
F
42” & 38” Frame
Hung Mowers
CONNECTING UPPER & MIDDLE TUBE
1. Slide the upper tube (A, Figure 11) into cover (B)
aligning ridge (C) with cutout (D) as shown.
2. Slide middle tube (D, Figure 12) into upper tube (E).
3. Slide middle tube (D) over boot (A). Pull strap (B)
and place hole completely over pin (C).
4. In the second hole from the bottom secure upper
tube (E) over middle tube (D) using 1/4 x 3/4 screw
(F) and correct hole.
